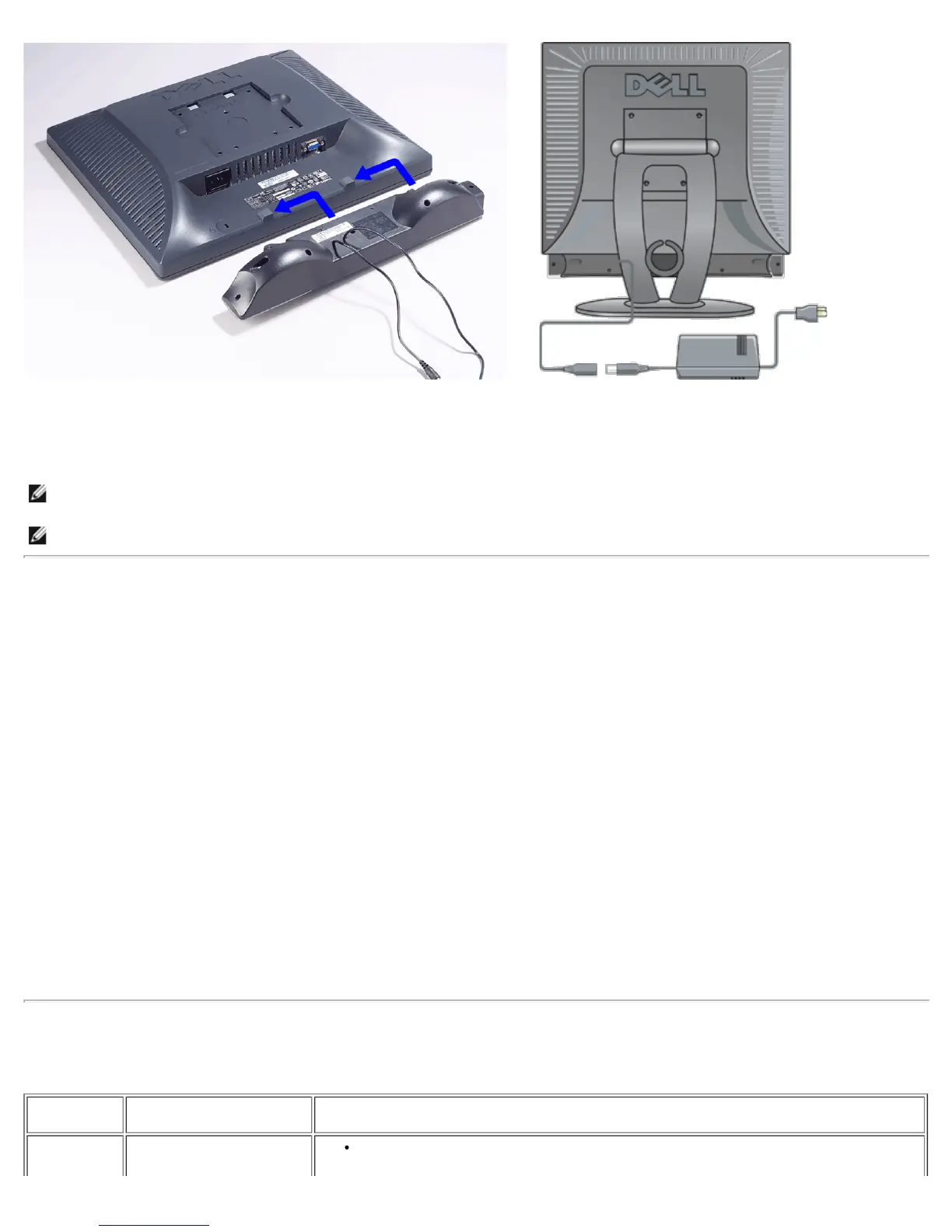

1. Working from the rear of the monitor, attach Soundbar by aligning the two slots with the two tabs along the bottom rear of the monitor.
2. Slide the Soundbar to the left until it snaps into the place.
3. Connect the sound bar with the power brick.
4. Plug the power cables of the power brick into a nearby outlet.
5. Insert the lime green mini stereo plug from the rear of the Soundbar into the computer's audio output jack.
NOTE: The graphic is for illustration only. Product appearance may vary.
NOTE: The base removal is not necessary to install the sound bar. Shown with base detached for illustration purposes only.
Specification
System Frequency Response 95 Hz to 20 kHz @ 10 dB below avg. SPL
Total Power Output 14 W continuous average power (all speakers operating) @ 10% (THD+N), 1 kHz (FTC
rated)
Headphone Jack
Output Power
40 mW continuous average power (RL = 32Ω) @ 10% (THD+N), 1 kHz
Input Sensitivity for
Rated Output
500 ± 50 mVrms @ 1 kHz
Input Impedance >10kΩ
Maximum Input Signal
Voltage
2 Vrms
Controls Power On/Off Volume Control
Input Cables 3.0 m ± 0.1 m AWG26 black cable attached to enclosure, with 3.5 mm lime green stereo
plug
Power Requirements DC12V, 1.5A +/-10% (Power brick is required)
Power Cord Length 305 mm +/- 15 mm AWG22 black cable attached to enclosure, with DC plug (5.5 x 2.1 x
12 mm)
Operating Temperature
Range
10°C to 40°C
Humidity, Non-condensing 95% RH @ 40°C
Troubleshooting
The following table contains general information about common audio problems you might encounter.
COMMON
SYMPTOMS
WHAT YOU EXPERIENCE POSSIBLE SOLUTIONS
No Sound No power to Soundbar - the
power indicator is off.
Turn the Power/Volume knob on the Soundbar clockwise to the middle position; check if
the power indicator (green LED) on the front of the Soundbar is illuminated.
