Setting Up the Monitor

Dell™E170S/E190SFlatPanelMonitorUser's Guide

Attaching the Stand

Connecting the Monitor

Organizing Your Cables

Attaching the Soundbar (Optional)

Removing the Stand



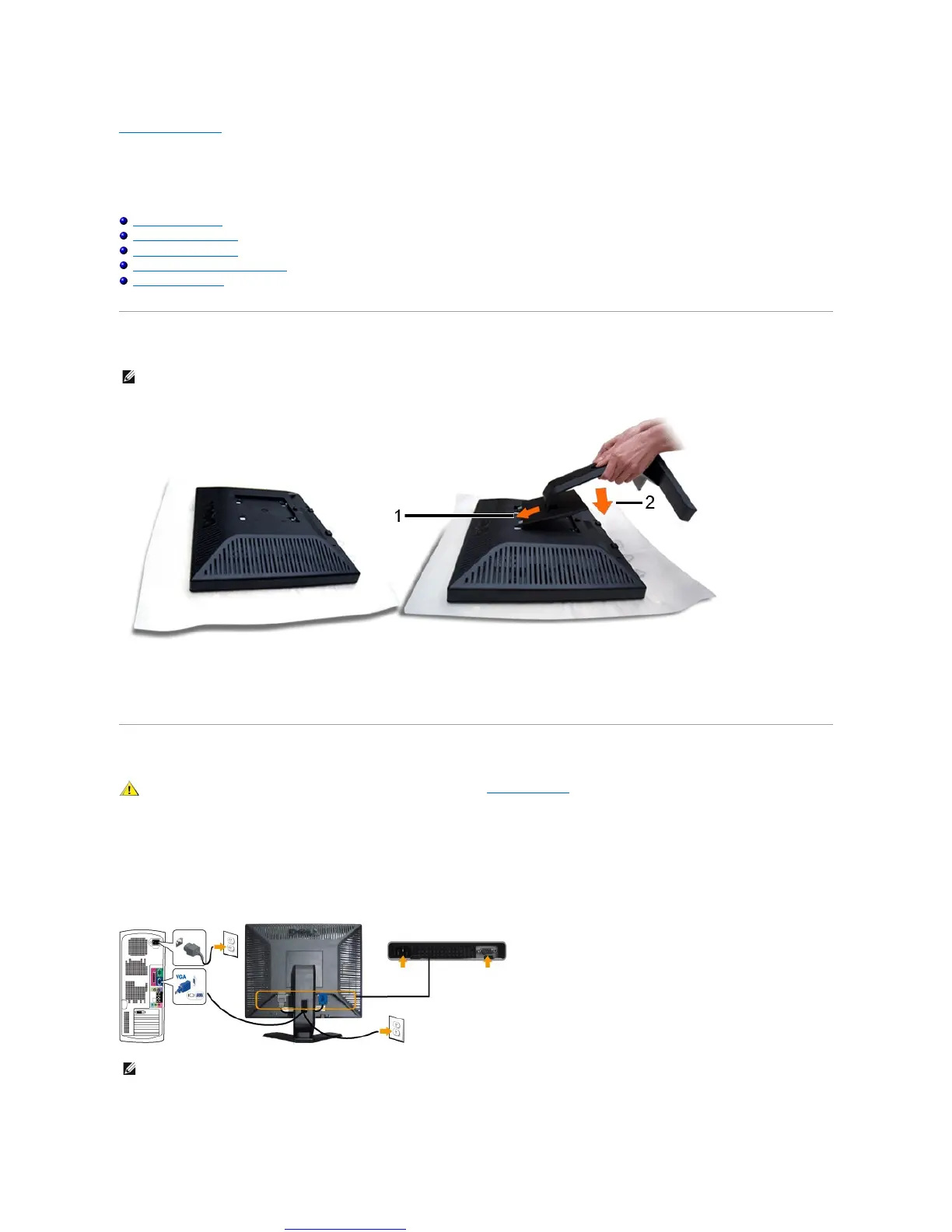

Attaching the Stand

Remove the monitor cover and place the monitor on it.

1. Fit the two tabs on the upper part of the stand to the groove on the back of the monitor.

2. Lower the stand so that the monitor mounting area snaps onto the stand.

Connecting Your Monitor

To connect your monitor to the computer perform the following steps/instructions:

1. Turnoffyourcomputeranddisconnectthepowercable.

2. Connecttheblue(analogVGA)displayconnectorcabletothecorrespondingvideoconnectoronthebackofyourcomputer.



Connecting the blue VGA cable

After you have completed connecting the VGA cable, follow the procedure below to complete your monitor setup:

NOTE: Stand is detached when the monitor is shipped from the factory.

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions.

NOTE: The Graphics are used for the purpose of illustration only. Appearance of the the computer may vary.
