Dell E207WFP User Manual

20" LCD Color Monitor Dell E207WFP
49

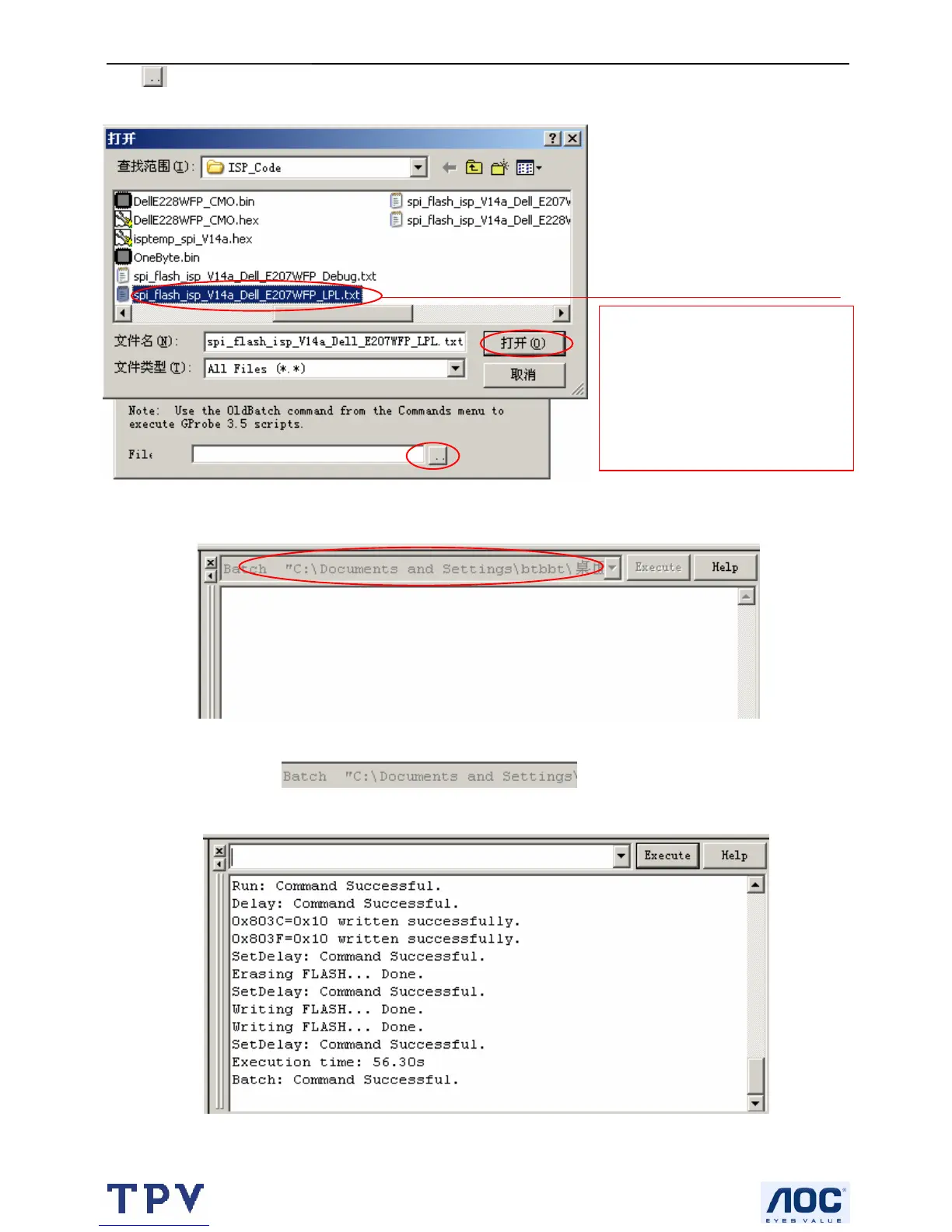

Click to select MCU software in Dell ISP_CODE, please per as the follow fig
Click open.
(3). Unplug the Dell AC power, until the LED indicator is off, press Enter or Execute button, when the .txt of MCU
is in gray, for example
, re-plug Dell AC power, Writer is in
progress.
(4). When appear the “Execution time：56.30s, Batch Command Successful”, Writer is complete!
The text must be matching with the
panel type of the monitor; such as if
the panel used is LM201WE3-TLA2
ZBD LPL.you have to choose
spi_flash_isp_V14a_Dell_E207WF
P
_
LPL.txt

Dell E207WFP Specifications

General

Brand	Dell
Model	E207WFP
Category	Monitor
Language	English
