7. Turn the keyboard over and place it on the palm rest.

8. Push the connector tabs up and disconnect the keyboard cable from the system board connector.

9. Lift the keyboard off the palm rest.
Replacing the Keyboard

1. Follow the instructions in Before You Begin.

2. Place the keyboard upside down on the palm rest.

3. Slide the keyboard cable into the system board connector and press the connector tabs into the connector to secure the cable.

4. Slide the tabs on the keyboard into the slots on the palm rest and lower the keyboard into place.

5. Gently press around the edges of the keyboard to secure the keyboard under the tabs on the palm rest.

1

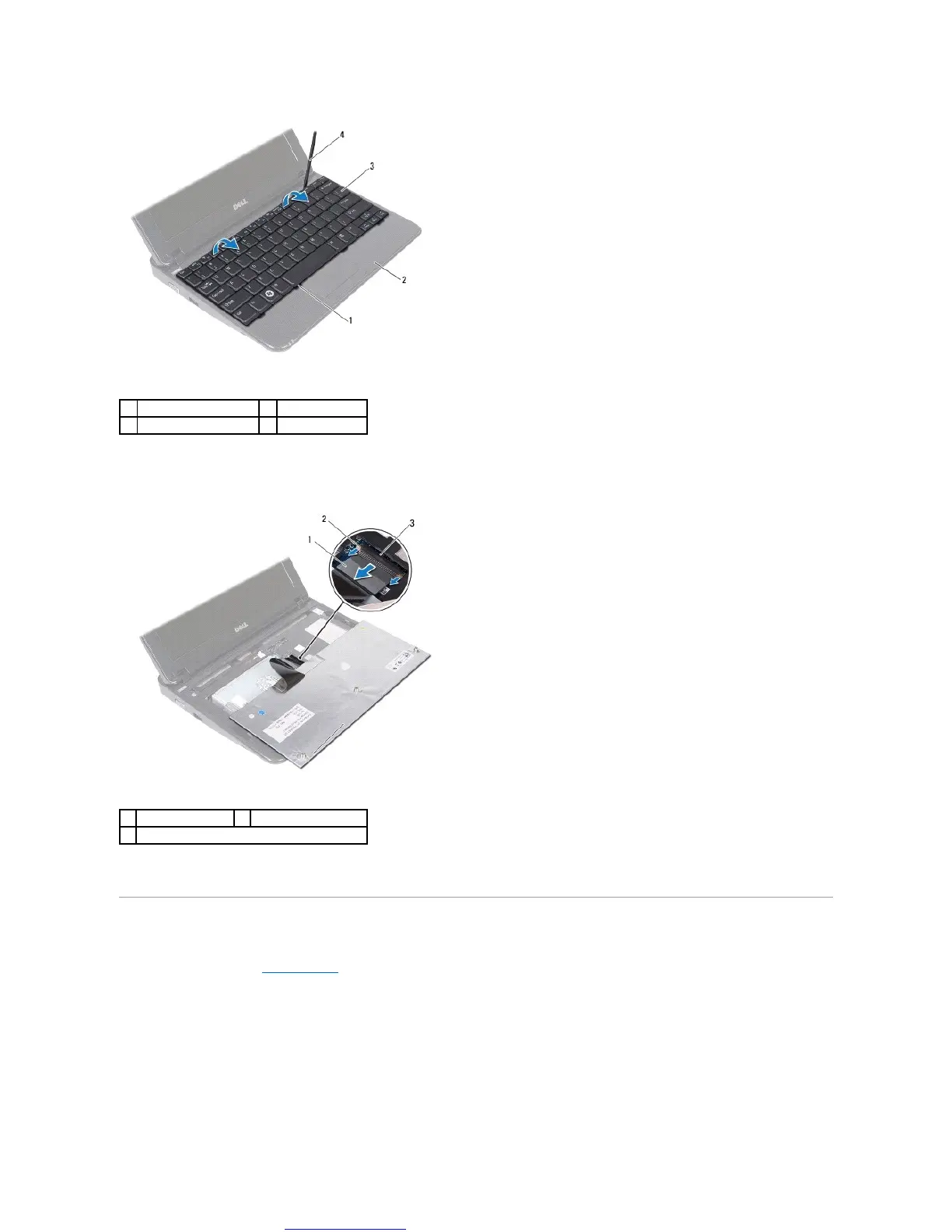

keyboard tabs (4)
2
palm rest
3
keyboard
4
plastic scribe
1
keyboard cable
2
connector tabs (2)
3
system board connector

Dell Inspiron 1018 Specifications

General

Bus type	DMI
Stepping	A0
Tjunction	100 °C
Processor cache	0.512 MB
Processor cores	1
Processor model	N455
System bus rate	- GT/s
Processor family	Intel Atom®
Processor series	Intel Atom N400 Series
Processor socket	BGA 559
Processor threads	2
Processor codename	Pineview
Processing Die size	66 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	6.5 W
CPU multiplier (bus/core ratio)	10
Number of Processing Die Transistors	123 M
Motherboard chipset	Intel® NM10 Express
HDD speed	5400 RPM
Storage media	HDD
Card reader integrated	Yes
Total storage capacity	250 GB
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC
Display diagonal	10.1 \
Display resolution	1024 x 600 pixels
Native aspect ratio	5:3
Internal memory	1 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 1 GB
Power supply type	AC/DC
Discrete graphics card model	Not available
On-board graphics card model	-
On-board graphics card base frequency	200 MHz
Speaker power	2 W
Keyboard layout	QWERTZ
Pointing device	Touchpad
Front camera resolution (numeric)	0.3 MP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Networking features	Fast Ethernet, WLAN
Ethernet LAN data rates	10, 100 Mbit/s
Operating system installed	Windows 7 Starter
Operating system architecture	32-bit
Charging port type	DC-in jack
USB 2.0 ports quantity	3
Firewire (IEEE 1394) ports	0
Cable lock slot type	Kensington
Battery capacity	48 Wh
Battery life (max)	- h
Number of battery cells	6
Form factor	Clamshell
Product color	Black
Processor code	SLBX9
Processor ARK ID	49491
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3

Weight and Dimensions

Depth	197 mm
Width	268 mm
Weight	1200 g
Height (rear)	32.8 mm
Height (front)	25.5 mm
