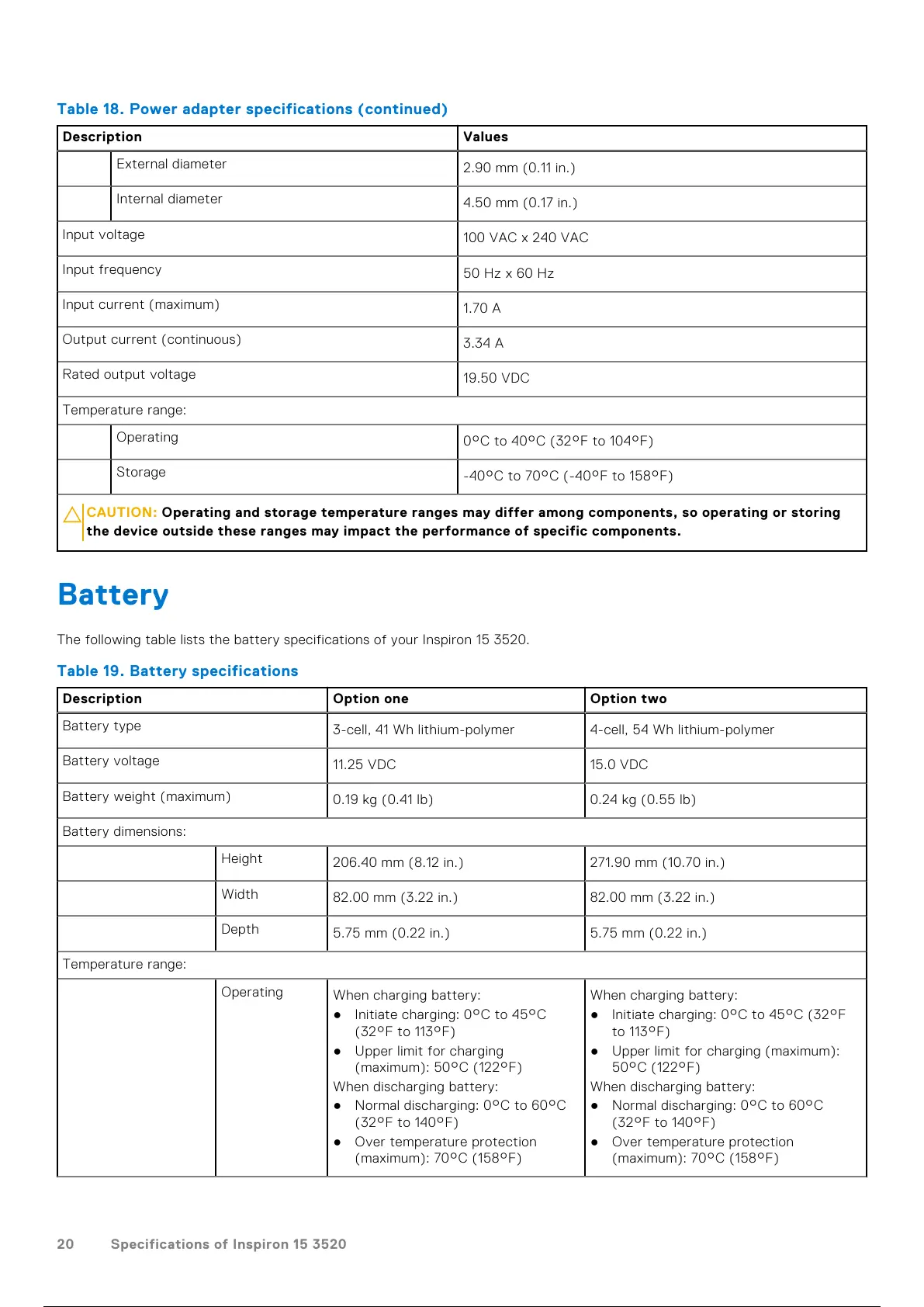

Table 18. Power adapter specifications(continued)
Description Values
External diameter
2.90 mm (0.11 in.)
Internal diameter
4.50 mm (0.17 in.)
Input voltage
100 VAC x 240 VAC
Input frequency
50 Hz x 60 Hz
Input current (maximum)
1.70 A
Output current (continuous)
3.34 A
Rated output voltage
19.50 VDC
Temperature range:
Operating
0°C to 40°C (32°F to 104°F)
Storage
-40°C to 70°C (-40°F to 158°F)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing
the device outside these ranges may impact the performance of specific components.
Battery
The following table lists the battery specifications of your Inspiron 15 3520.
Table 19. Battery specifications
Description Option one Option two
Battery type
3-cell, 41 Wh lithium-polymer 4-cell, 54 Wh lithium-polymer
Battery voltage
11.25 VDC 15.0 VDC
Battery weight (maximum)
0.19 kg (0.41 lb) 0.24 kg (0.55 lb)
Battery dimensions:
Height
206.40 mm (8.12 in.) 271.90 mm (10.70 in.)
Width
82.00 mm (3.22 in.) 82.00 mm (3.22 in.)
Depth
5.75 mm (0.22 in.) 5.75 mm (0.22 in.)
Temperature range:
Operating
When charging battery:
● Initiate charging: 0°C to 45°C
(32°F to 113°F)
● Upper limit for charging
(maximum): 50°C (122°F)
When discharging battery:
● Normal discharging: 0°C to 60°C
(32°F to 140°F)
● Over temperature protection
(maximum): 70°C (158°F)
When charging battery:
● Initiate charging: 0°C to 45°C (32°F
to 113°F)
● Upper limit for charging (maximum):
50°C (122°F)
When discharging battery:
● Normal discharging: 0°C to 60°C
(32°F to 140°F)
● Over temperature protection
(maximum): 70°C (158°F)
20 Specifications of Inspiron 15 3520
