Dell MD1420 User Manual

3. Remove the hard disk drives. See Removing a hard disk drive.
4. Remove the EMMs. See Removing an EMM.
5. Remove the power supply or cooling fan modules. See Removing an AC power supply unit or
cooling fan module.
6. Remove the control panel. See Removing the control panel.
7. Remove the screws that secure the EMM or power supply cage to the chassis.
8. Hold the cage removal ring at the bottom center of the enclosure and pull the EMM or power supply
cage toward the back of the chassis.

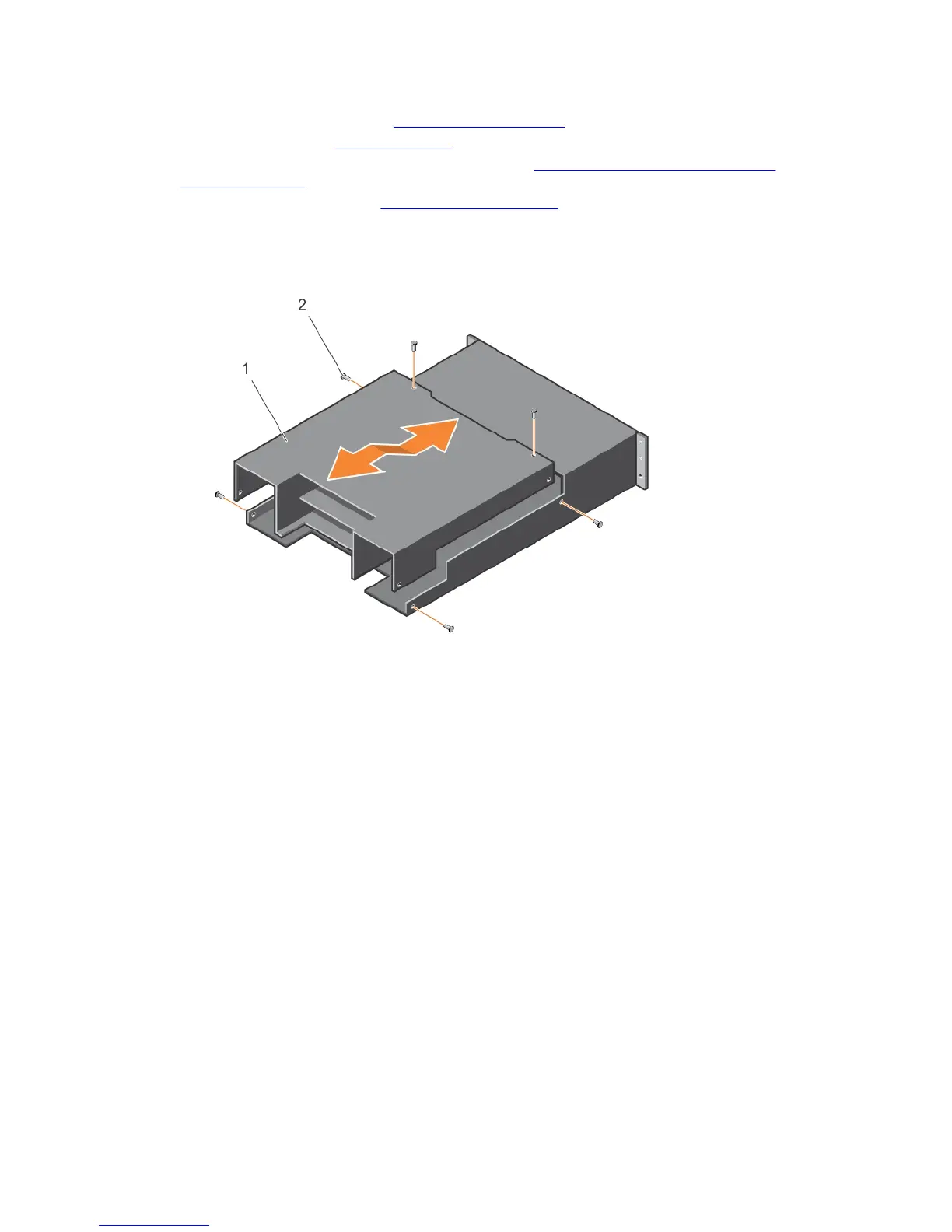

Figure 22. Removing and installing the EMM or power supply cage
1. EMM or power supply cage 2. screws (6)
9. Lift the EMM or power supply cage away from the chassis.
10. Loosen the captive screw that secures the backplane to the chassis.
11. Remove the screws that secure the backplane and pull the backplane out of the enclosure.
30

Dell MD1420 Specifications

General

Form Factor	2U Rack-Mountable
Interface	12Gbps SAS
Hot-Swap Bays	Yes
Drive Bays	24 x 2.5"
Maximum Capacity	Up to 192TB
RAID Support	Depends on controller
Power Supply	Redundant power supplies
Cooling	Redundant cooling fans
Product Type	Storage Enclosure
Number of Controllers	0 (JBOD)
Compatibility	Dell PowerEdge servers
