Dell Networking N20 Series Firmware Upgrade

Upgrade Procedure Dell™ Networking
N2024/N2024P/N2048/N2048P/N3024/N3024F/N3024P/N3048/N3048P
Switches
Page 4
How to Access Serial Console on N2000/N3000 series switches
NOTE: How to access serial console of the N3000 Series switch? Use a supplied “RJ45 Yost to DB9
serial cable” to access the serial console. Connect the RJ45 end of the cable to the RJ45 serial console port
and the DB9 connector to your PC. Download and Install the terminal emulation software on your PC (for
example., PuTTY) to access the serial console with the correct settings (default setting 9600 baud, 8 data
bits, no parity bit, 1 stop bit, and no flow control).

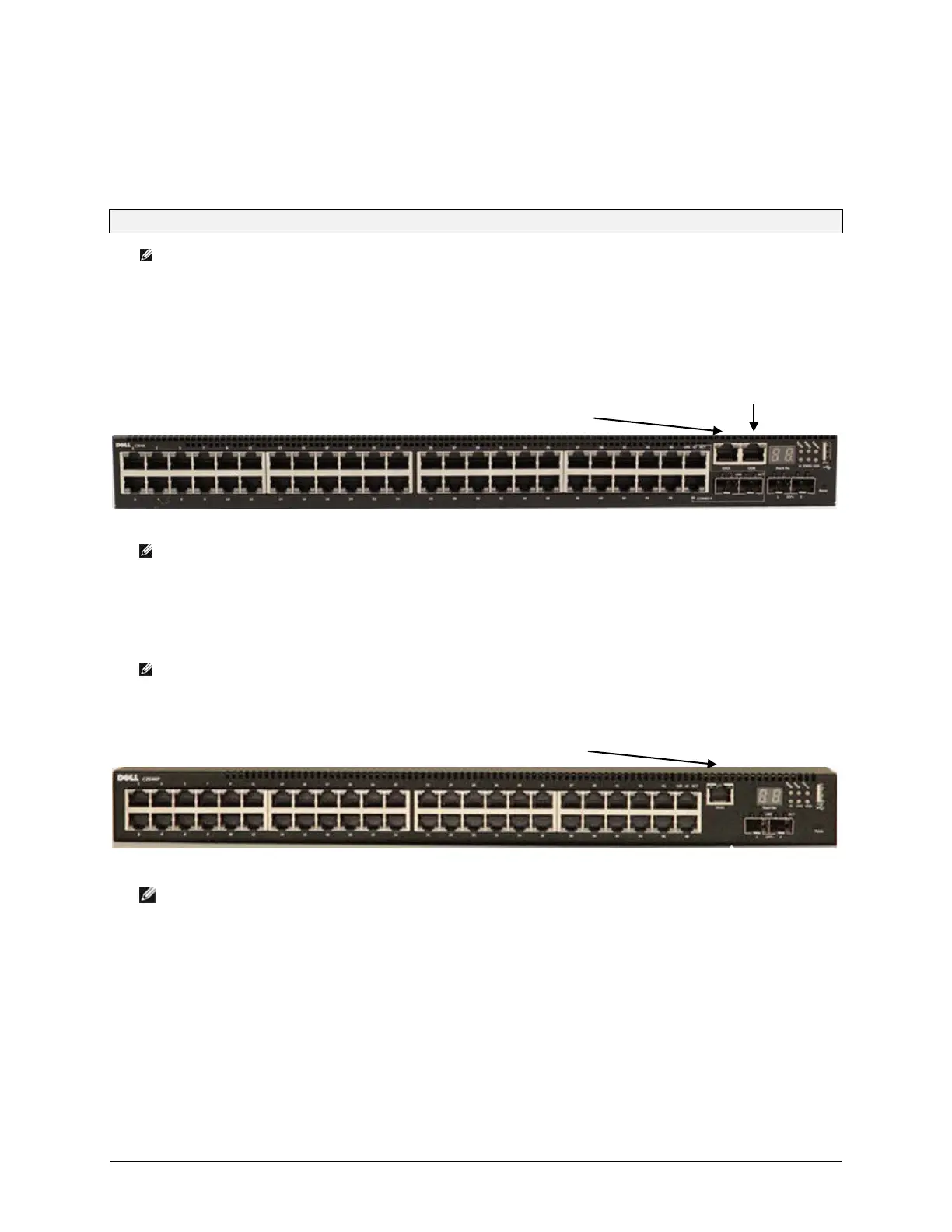

Figure.1 N3048 with 48 10/100/1000BASE-T Ports (Front Panel)
Out-of- Band Management Port
RJ-45 serial console port
NOTE: How to access serial console of the N2000 Series switch? Use a supplied “RJ45 Yost to DB9
serial cable” to access the serial console. Connect the RJ45 end of the cable to the RJ45 serial console port
and the DB9 connector to your PC. Download and Install the terminal emulation software on your PC (for
example., PuTTY) to access the serial console with the correct settings (default setting 9600 baud, 8 data
bits, no parity bit, 1 stop bit, and no flow control).
NOTE: N2000 switches do not have an out-of-band interface.
Figure.2 N2048 Switch with 48 10/100/1000BASE-T Ports (Front Panel)
RJ-45 serial console port
NOTE: By default, no network information is configured. The DHCP client is enabled on the OOB
interface by default on N3000 and N4000 switches. The DHCP client is enabled on VLAN 1 by default on
the N2000 switches. DNS is enabled, but no DNS servers are configured. VLAN 1 does not have an IP
address, subnet mask, or default gateway configured on N3000 and N4000 switches. You can assign an IP
address or IPv6 addresses to the OOB management port and to any VLAN. By default, all ports are
members of VLAN 1. If you assign an IP address to VLAN 1, you can connect to the switch management
interface by using any of the front-panel switch ports. This is required to manage the N2000 switches over
an Ethernet port.
