15 Expansion Modules for Dell Networking Switches
4.3 Dell Networking 8100 Series (8132, 8132F, 8164, and 8164F)
There are four switch models in the Dell Networking 8100 series, each with one bay on the
front
of the switch for an
expansion module. The
front view
of the switch is one of the four shown in the figure below. The yellow outline
shows the bay on each switch.

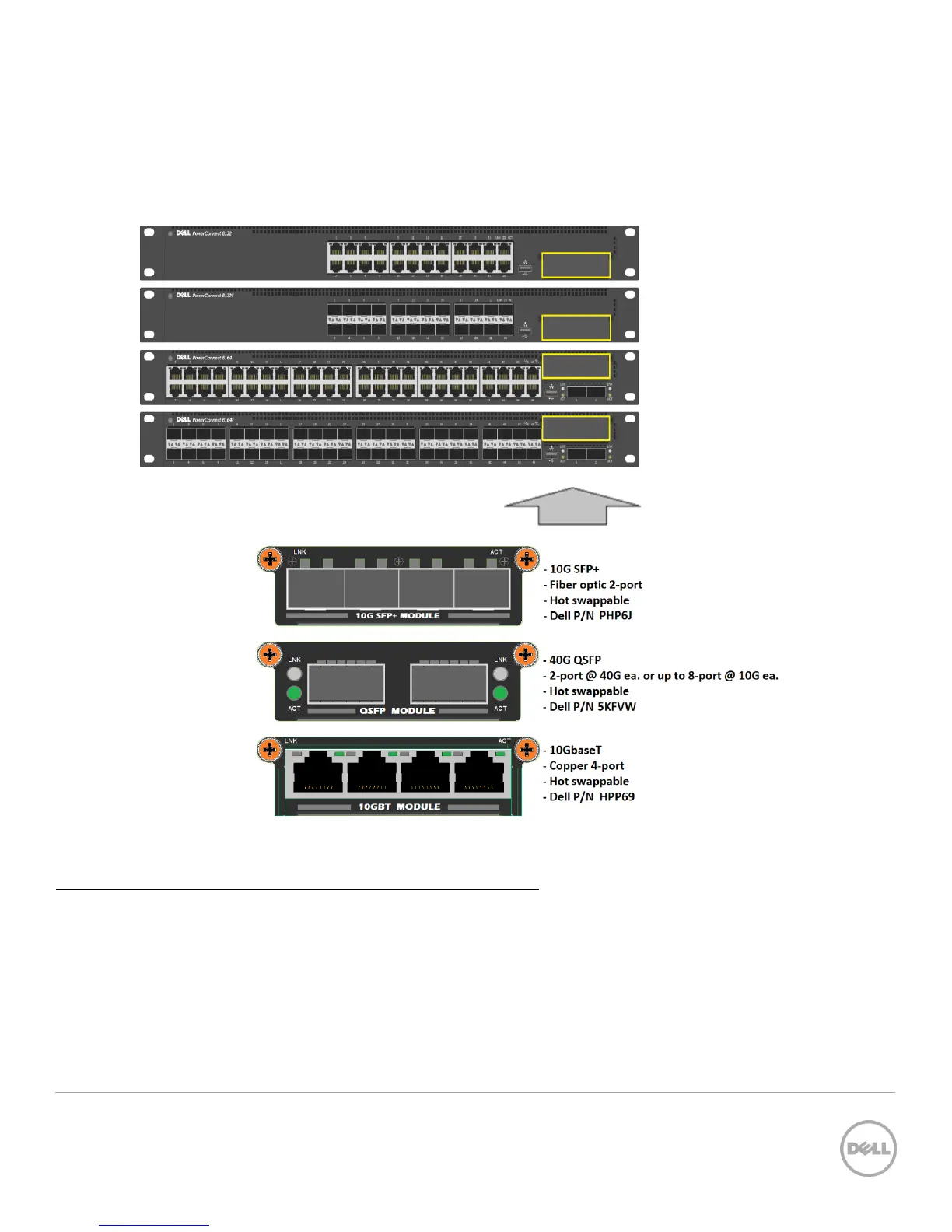

Figure 9 Dell Networking 8100 Series Switch (40/10G Ethernet) and Available Modules
All three modules may be used for stacking the 8100 series switches. Also, any port on the front of an 8100 may be
used for stacking. Orange screws on the modules above indicate that they are hot-swappable modules. The Dell
Networking 8100 series supports the same expansion modules as the N40xx and Dell Networking MXL. Whenever a
module is moved from an N40xx/MXL to an 8100 or vice versa, a reload of the switch is required for proper
functioning of the module.
