Dell P124G User Manual

● M.2 2230 solid-state drive + 2230 mounting bracket
● M.2 2280 solid-state drive
● M.2 2280 Intel Optane Memory H10

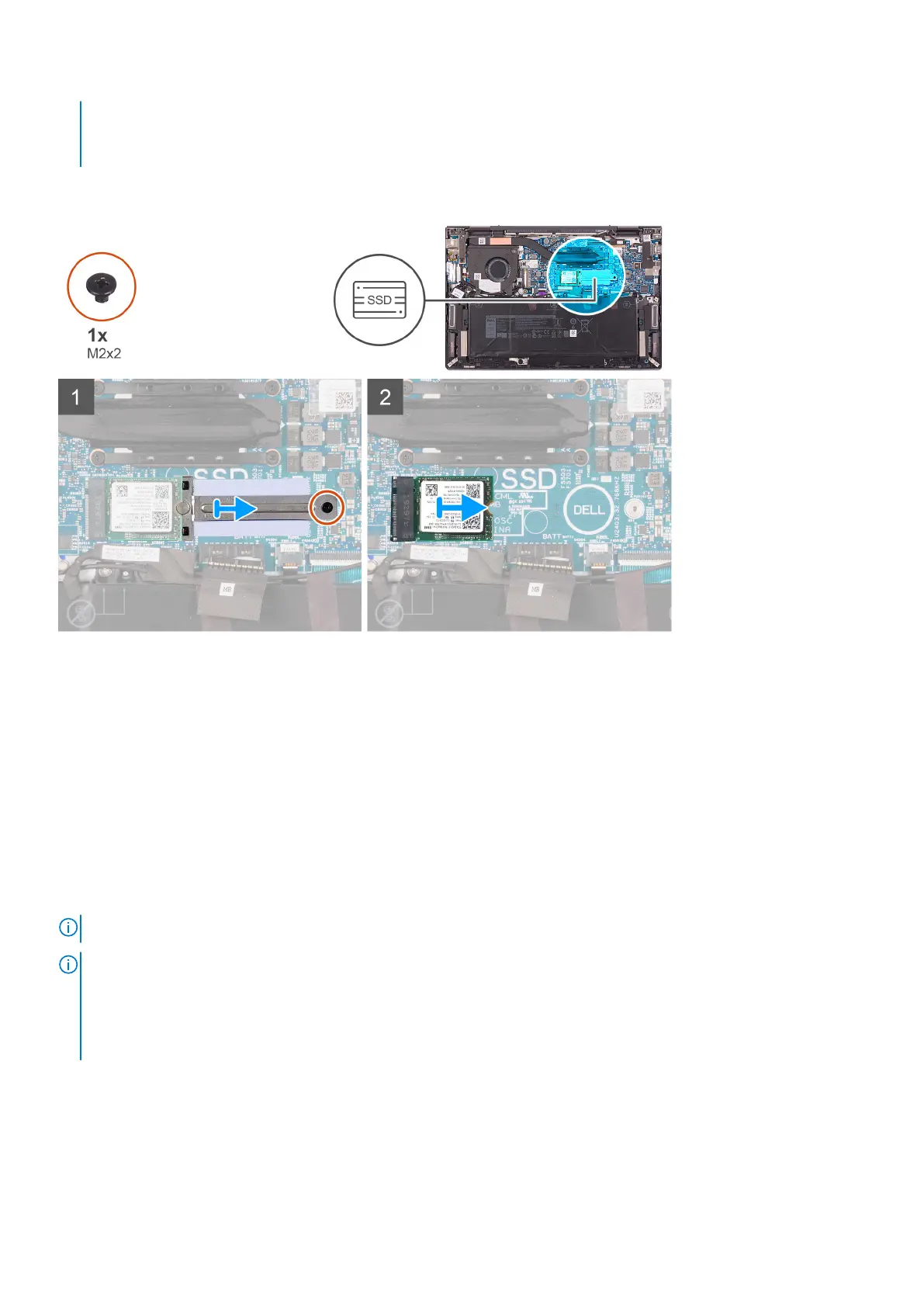

The following image(s) indicate the location of the M.2 2230 solid-state drive and provides a visual representation of the
removal procedure.
Steps
1. Remove the screw (M2x2) that secures the M.2 2230 mounting bracket to the system board.
2. Slide and remove the M.2 2230 mounting bracket off the system board.
3. Slide and remove the M.2 2230 solid-state drive off the system board.
Installing the M.2 2230 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: This procedure applies if you are installing a M.2 2230 solid-state drive.
NOTE: The M.2 card installed on your computer will depend on the configuration ordered. Supported card configurations on
the M.2 card slot:
● M.2 2230 solid-state drive + 2230 mounting bracket
● M.2 2280 solid-state drive
● M.2 2280 Intel Optane Memory H10
The following image(s) indicate the location of the M.2 2230 solid-state drive and provides a visual representation of the
installation procedure.
18
Removing and installing components
