Procedure
1 Note the cable routing and remove the display cable from the routing
guides on the display-back cover.
2 Remove the screws that secure the display panel to the display back-
cover.

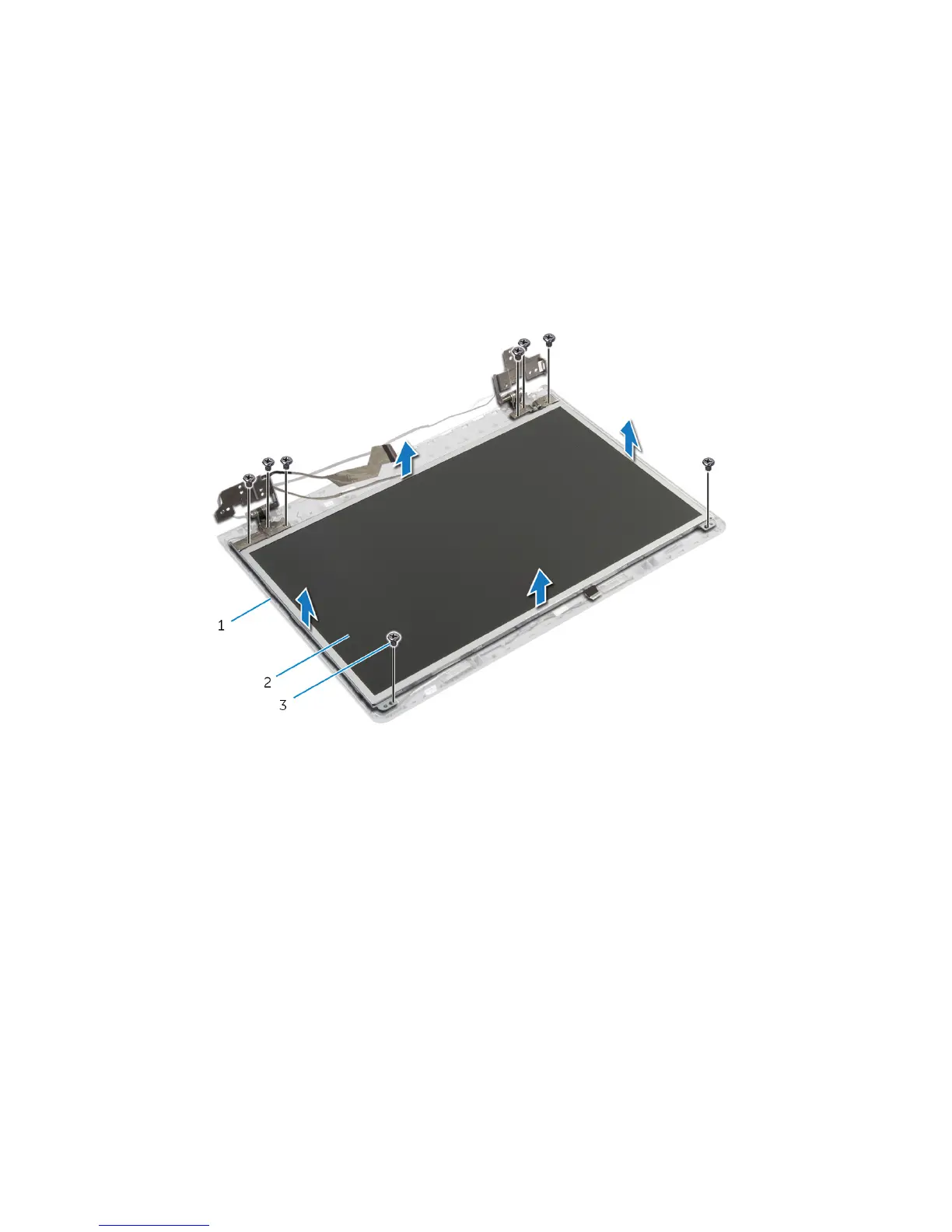

1 display back-cover 2 display panel
3 screws (8)
3 Gently lift the display panel and turn it over.
4 Peel off the tape that secures the display cable to the display panel.
85
