Hard Drive Indicators

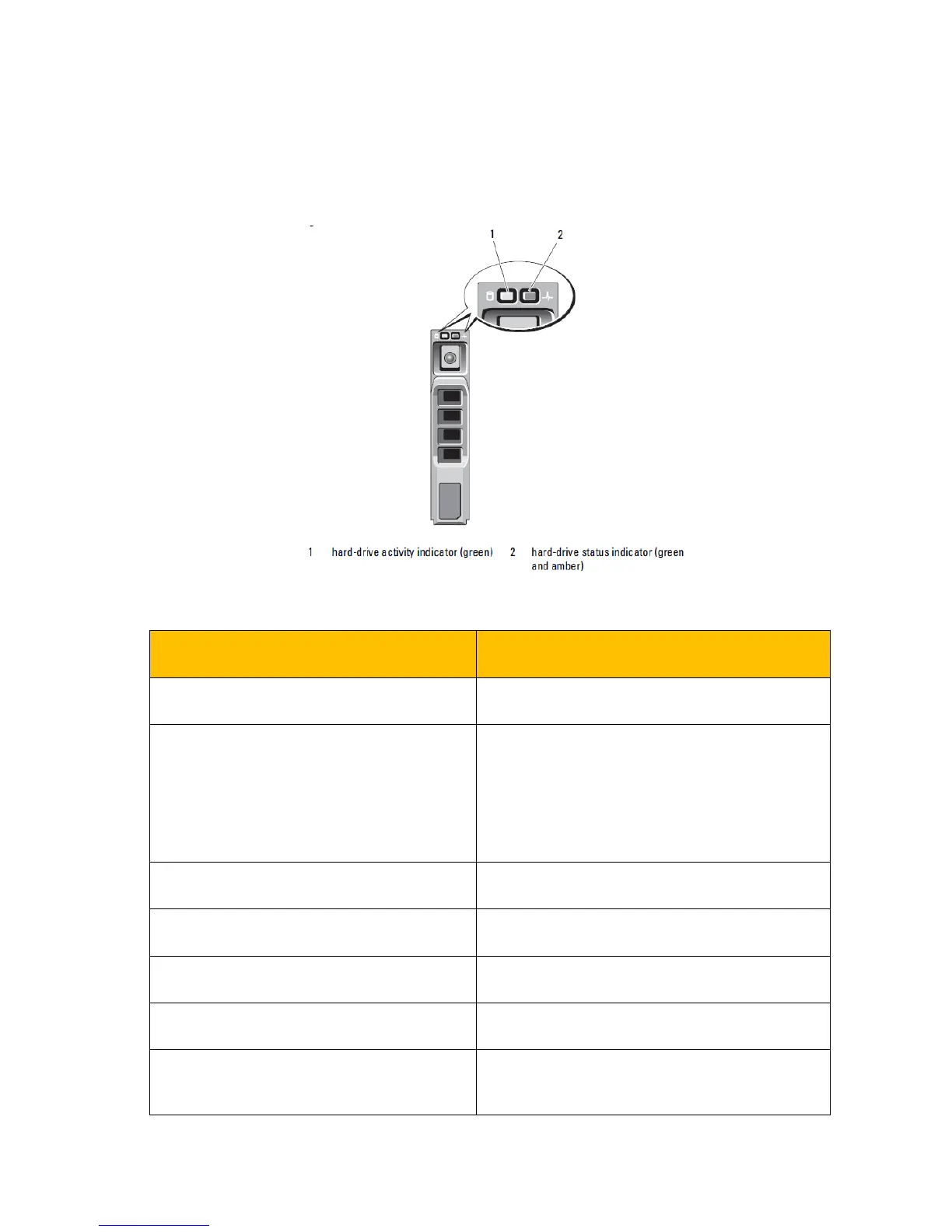

Figure 11. Hard Drive Indicators (includes HDD and SSD)
Table 6. Drive Indicator Description
Drive-Status Indicator Pattern (RAID Only) Condition
Blinks green two times per second Identify drive/preparing for removal
Off Drive ready for insertion or removal
NOTE: The drive status indicator remains off
until all hard drives are initialized after system
power is turned on. Drives are not ready for
insertion or removal during this time.
Blinks green, amber, and off Drive predicted failure
Blinks amber four times per second Drive failed
Blinks green slowly Drive rebuilding
Steady green Drive online
Blinks green three seconds, amber three
seconds, and off six seconds.
Rebuild aborted

Dell PowerVault MD3200 Series Specifications

General

Form Factor	2U Rackmount
Drive Bays	12 x 3.5-inch or 24 x 2.5-inch
Operating Temperature	10°C to 35°C (50°F to 95°F)
RAID Levels	0, 1, 5, 6, 10
Host Connectivity	6Gb/s SAS
Controllers	Dual controllers
Power Supply	Dual redundant 600W power supplies
Drive Support	SAS
Expansion Enclosures	MD1200 or MD1220 expansion enclosures
Management	Modular Disk Storage Manager (MDSM)
Cache Memory	2GB per controller
Maximum Number of Drives	Up to 96 with expansion enclosures
Cache	2GB per controller
