CONNECTION OF THE UNIT
English
I

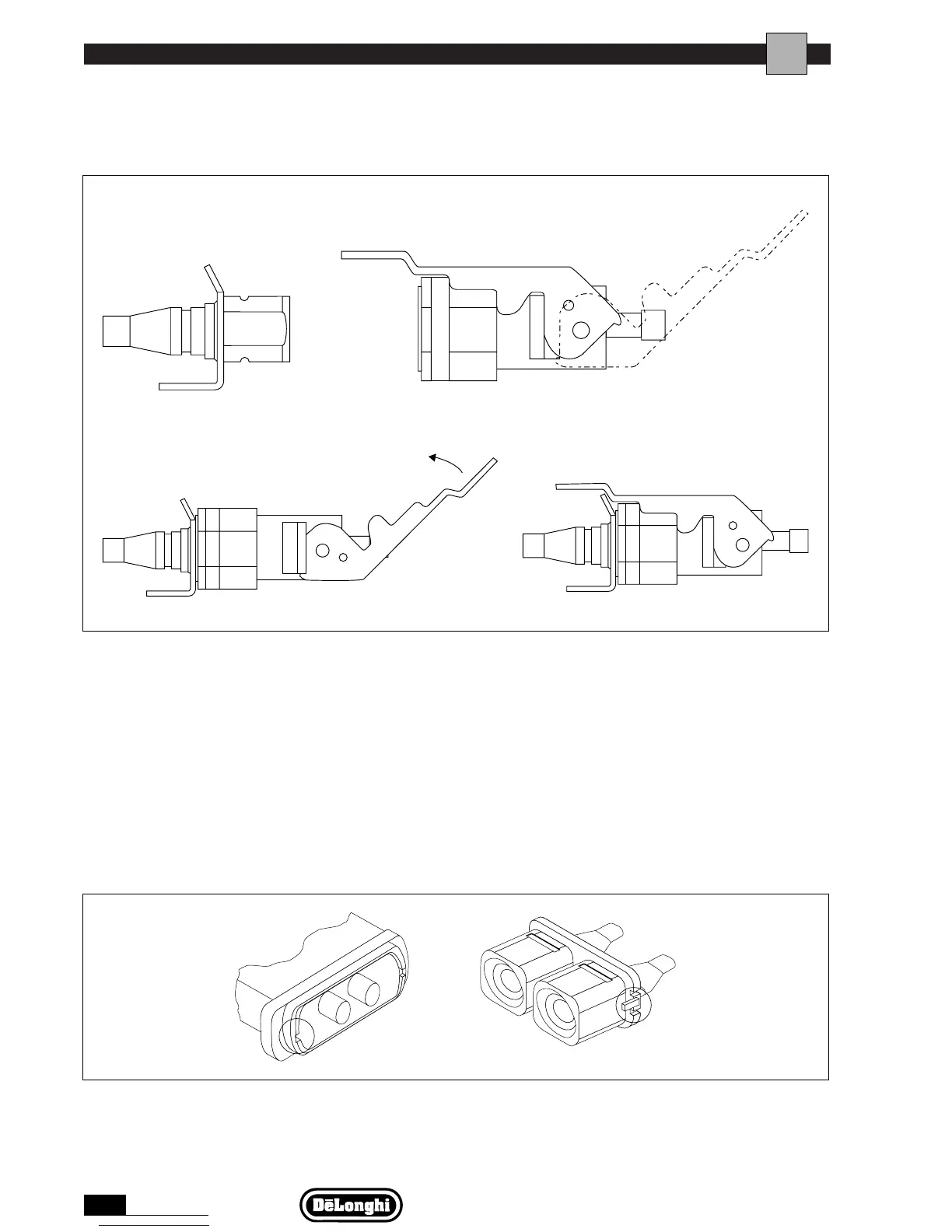

Fig. 2
Fig. 3 Fig. 4
TO CONNECT
- With the coupling handle in the “full back” position (Figure
5), retract the release sleeve on the female and insert
the
male half into the coupling. Make sure the insertion tab on
the male half lines up with the slot on the female
body (see
Figure 5).
- Realease the retractable sleeve to lock the halves together
and tug gently on the halves to ensure locking has taken
place (Figure 3).
- Rotate the coupling handle towards the male half to open
the coupling. Make sure the handle bottoms on the
coupling body and the locking pin (on models equipped
with spring loaded locking pins) “pops” into the handle hole
properly (see Figure 4).
- Connect the auxiliary electrical and condensate lines, if
applicable.
- Connect the male and female caps together, if provided,
to keep them clean while the unit is in operation and
they
are disconnected from their appropriate halves.
- Connect unit to power outlet and start the unit.
Fig. 5
No tools are required to connect the coupling: a retractable
sleeve and four latch pins hold the male and female halves
together. The coupling valves open when the handle is
pushed forward and locked into place, and shut when the
handle is in the “full back” position (see figures 3-4).
