DeLonghi CF-CP AR User Manual

English
DESCRIPTION OF THE AIR-CONDITIONER
AIU
The air-conditioner is an appliance designed for
small user systems. It consists of an indoor unit for wall
mounting and an outdoor unit.
REMOTE CONTROL
The infrared remote control is used for function control, re-
gulation and programming; its operating modes and use are
described in the user booklet.
INDOOR UNIT
The indoor unit housing is plastic.
The electric fan unit consists of a tangential fan powered by
alternating current; it ensures high performance, efficiency
and low noise operation.
The speed may be changed according to needs. The heat
exchanger has a large surface area and consists of scored
copper pipes and swirl-type aluminium fins.
Regulation, control of functions, data interchange with the
outdoor unit and diagnostics are governed by a micropro-
cessor card.

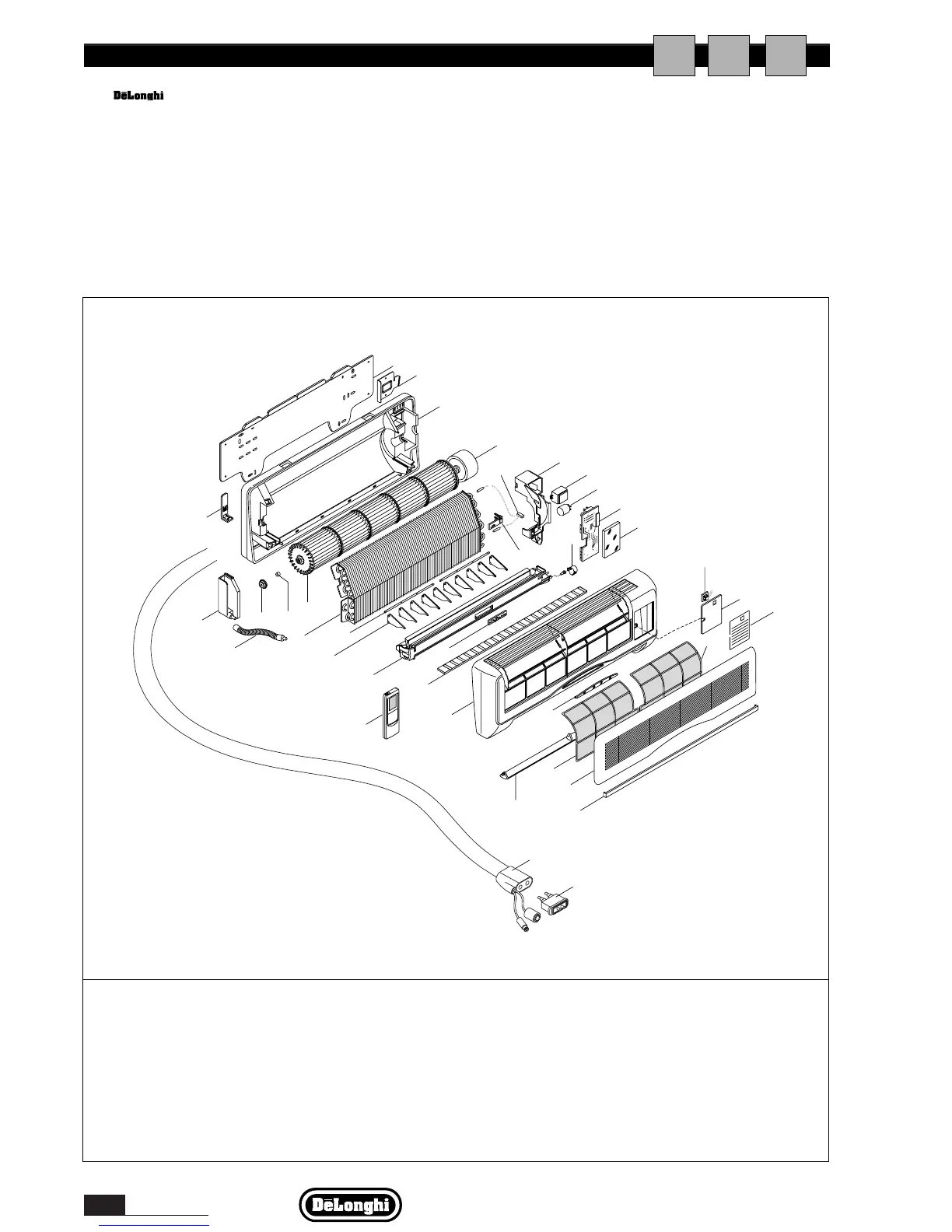

1 Wall-mounting plate
2 Indoor unit base
3 Indoor fan motor
4 Sensor unit
5 Room sensor support
6 Card support box
7 Noise filter
8 Fan capacitor + transformer
9 Electronic card
10 Cover
11 Mode push button
12 Cover
13 Sticker
14 Air filter
15 Air filter
16 Flaps motor l.h. shell
17 Flaps motor r.h. shell
18 Flap gear
19 Flap gear
20 Flap gear
21 Flap motor
22 Receiver-led card
23 Tamperproof grille
24 Fan support
25 Fixing angle bracket
26 Fan rubber grommet
27 Plastic fan bushing
28 Fan
29 Drain pipe
30 Finned coil
31 Flaps connecting rod/intermedia-
te control
32 Vertical flaps
33 Condensate collecting tray
34 Remote control
35 White cowl
36 Logo tab
37 Bushing
38 Bushing
39 Lower louver
40 Upper louver
41 Front grille
42 Strip
43 Bushing
44 Louver
45 Pipe fixing bracket
46 Quick male coupling
47 Connection tube
1
2
3
8
7
9
35
22
12
11
28
22
23
29
34
33
15
14
36
26
10
31
32
4
25
24
30
41
44
6
5
13
42
27
45
46
47
CF 20 ARE 290 / CF-CP 30 ARE 290
CF-CP 40 ARE 290
