DeLonghi DEL604M User Manual

11

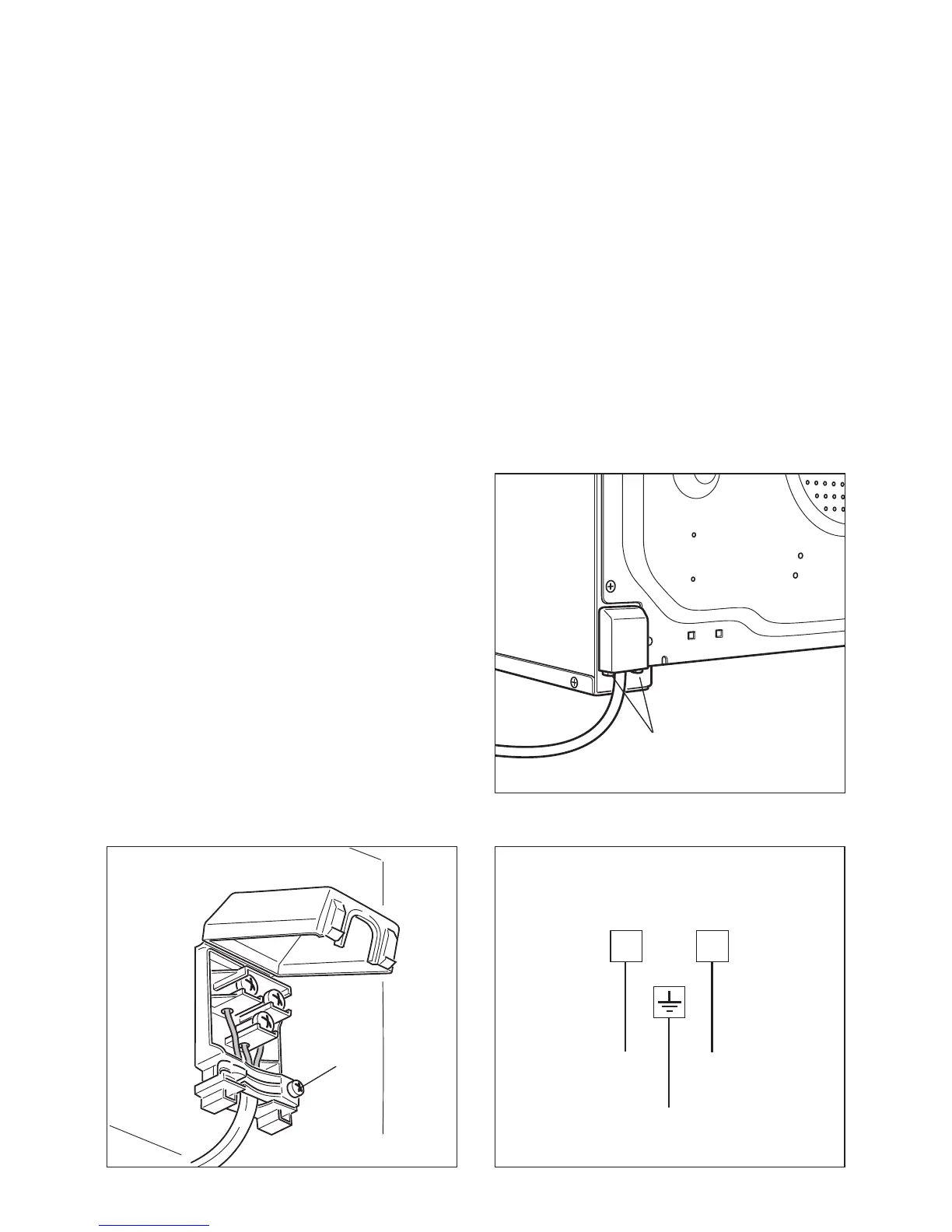

REPLACING THE POWER SUPPLY CABLE
Important! This appliance must be connected to the electricity supply only by an
authorised person.
To connect the supply cable:
■ Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (g. 5).
■ Open the cable gland by unscrewing screw “F” (g. 6), unscrew the terminal screws
and remove the cable.
■ The new supply cable, of suitable type and section, is connected to the terminal board
following the diagram g. 7.
■ Close and hook again the terminal board cover.
N.B. The earth conductor must be left about 3 cm longer than the others.
VOLTAGE AND POWER CONSUMPTION
220-240 V ac 2250 W (9.78 A)
FEEDER CABLE SECTION
TYPE H05RR-F
3 x 1,5 mm
2
(*) (**)
(*) Connection possible with plug and outlet
(**) Connection with wall box connection.
F
A
E
N (L
2)
L
1
Figure 6
Figure 5
Figure 7
220 - 240 V ac
