ELECTRICAL FEEDER CABLE CONNECTION
WARNING: If the power supply cable is damaged, it must be replaced only by an
authorised service agent in order to avoid a hazard.
To connect the supply cable:
• Remove the screws that holds shield “A” behind the cooker (g. 3.1).
• Insert the feeder cable of the suitable section (as described in the next chapter) into
the cable clamp “C”.

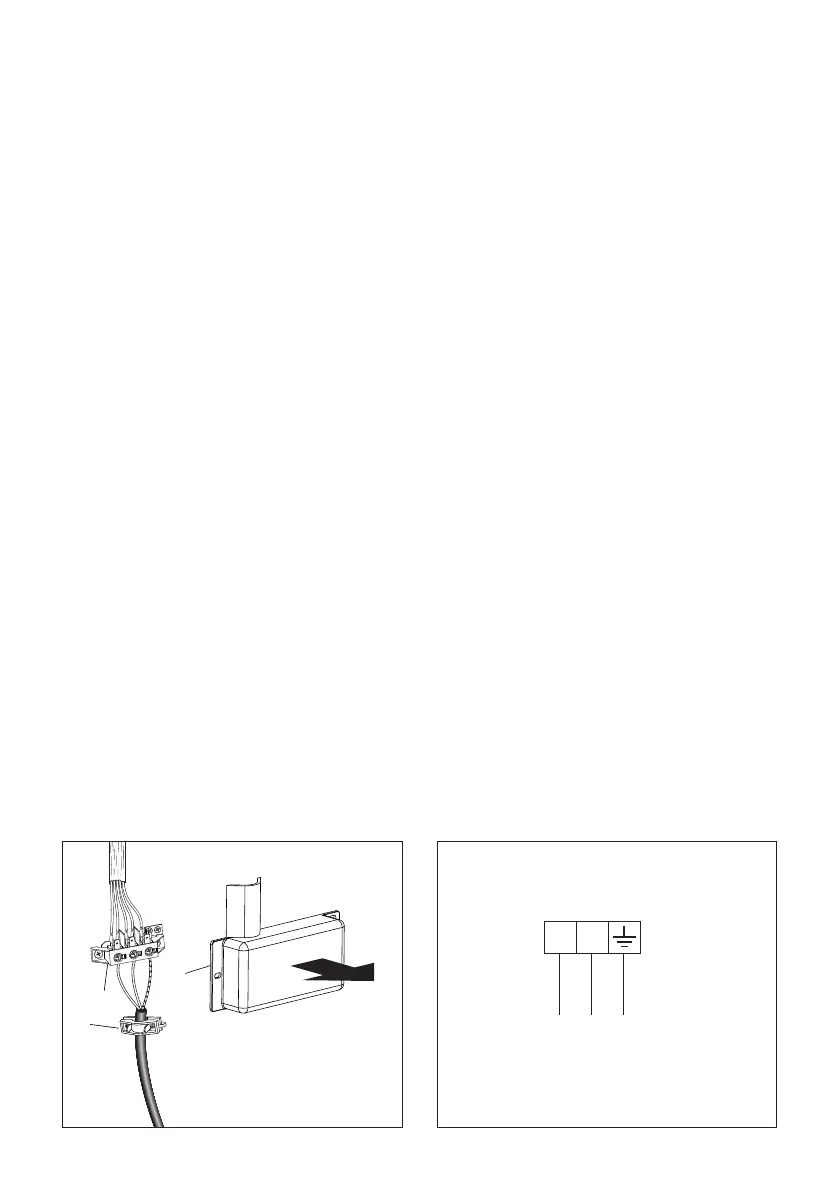

• Connect the wires to the terminal block “B” according to the diagram in gure 3.2.
• Pull the feeder cable and secure it with cable clamp “C”.
• Re-mount shield “A”.
NOTE: The earth conductor must be left about 3 cm longer than the others.
POWER SUPPLY
220-240 V ac 3785 W
FEEDER CABLE SPECIFICATIONS
Type “H05RR-F”
3 x 2,5 mm
2
Fig. 3.2
PEN
L
1
(L2)
220-240 V ac
B
C
A
Fig. 3.1
