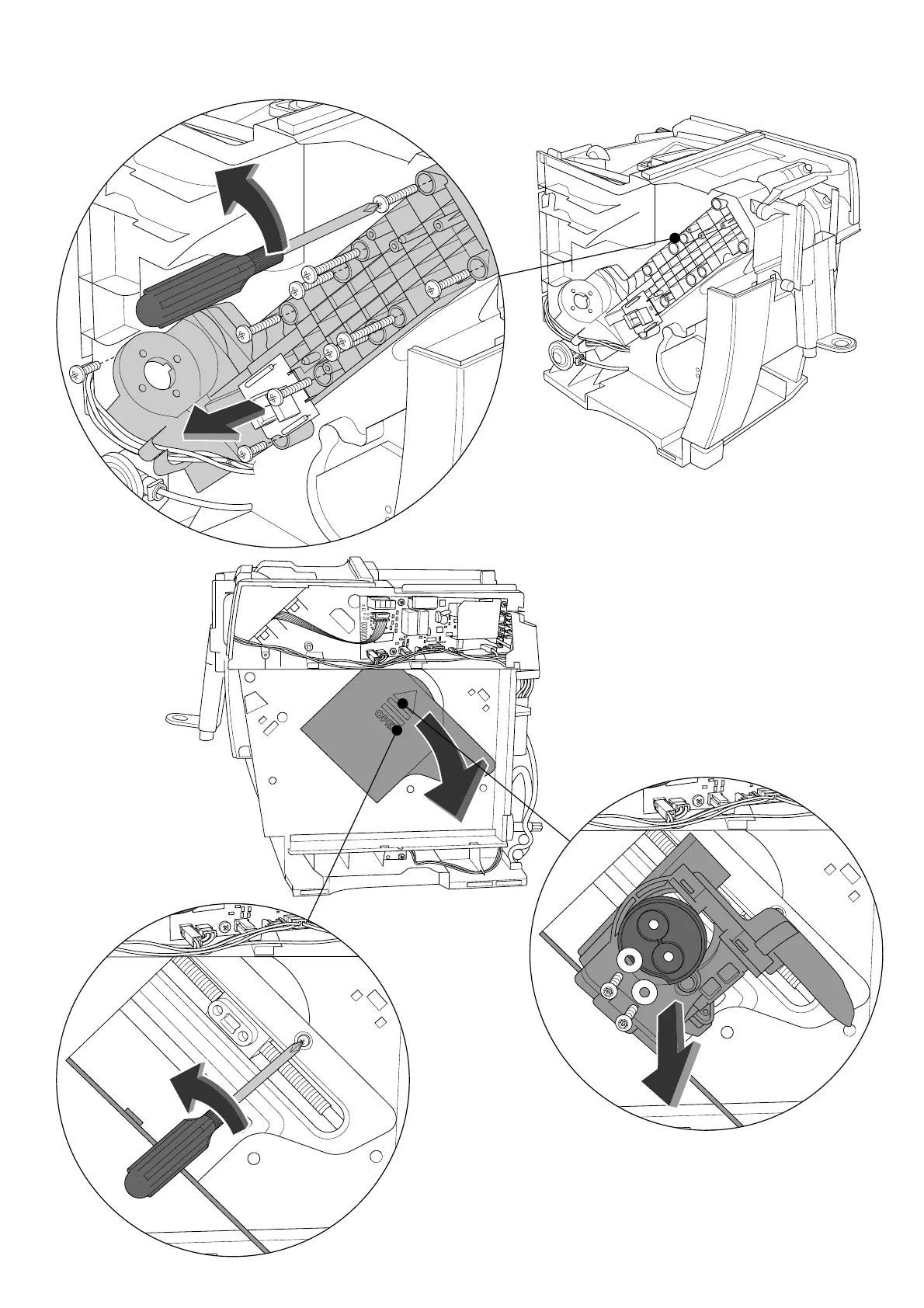

Picture 15 - TO REMOVE TRANSMISSION KIT
15.1
Unscrew the 10 indicated screws
15.2
Open infuser box
15.3
Unscrew the 2 indicated screws
(Torx T20) and remove the slider
15.4
Take off the indicated screw
Now the TRASMISSION KIT is free and can be removed
