Pinguino is equipped with an adjustable win-
dow bracket (
18)
. If you have a sliding win-
dow, place the bracket on the window sill,
extend the bracket fully within the window
frame and lower the window onto the brack-
et. Insert the nozzle of the exhaust hose into
the slot, then connect the hose to the air con-
ditioner (Fig.10).
With the wing nut, it’s possible to use the window
bracket also for sliding windows. Position the
hole of the bracket to allow for correction instal-
lation of the exhaust hose (see the following
instructions).
Setting up
If you have a sliding door, use the additional
set provided in order to extend the accessory
to the desired length; joining the two parts
(fig. 11), adjust the total length according to
your needs, then fit the bracket with the rele-
vant nuts, close the door and connect the
hose (fig. 12).

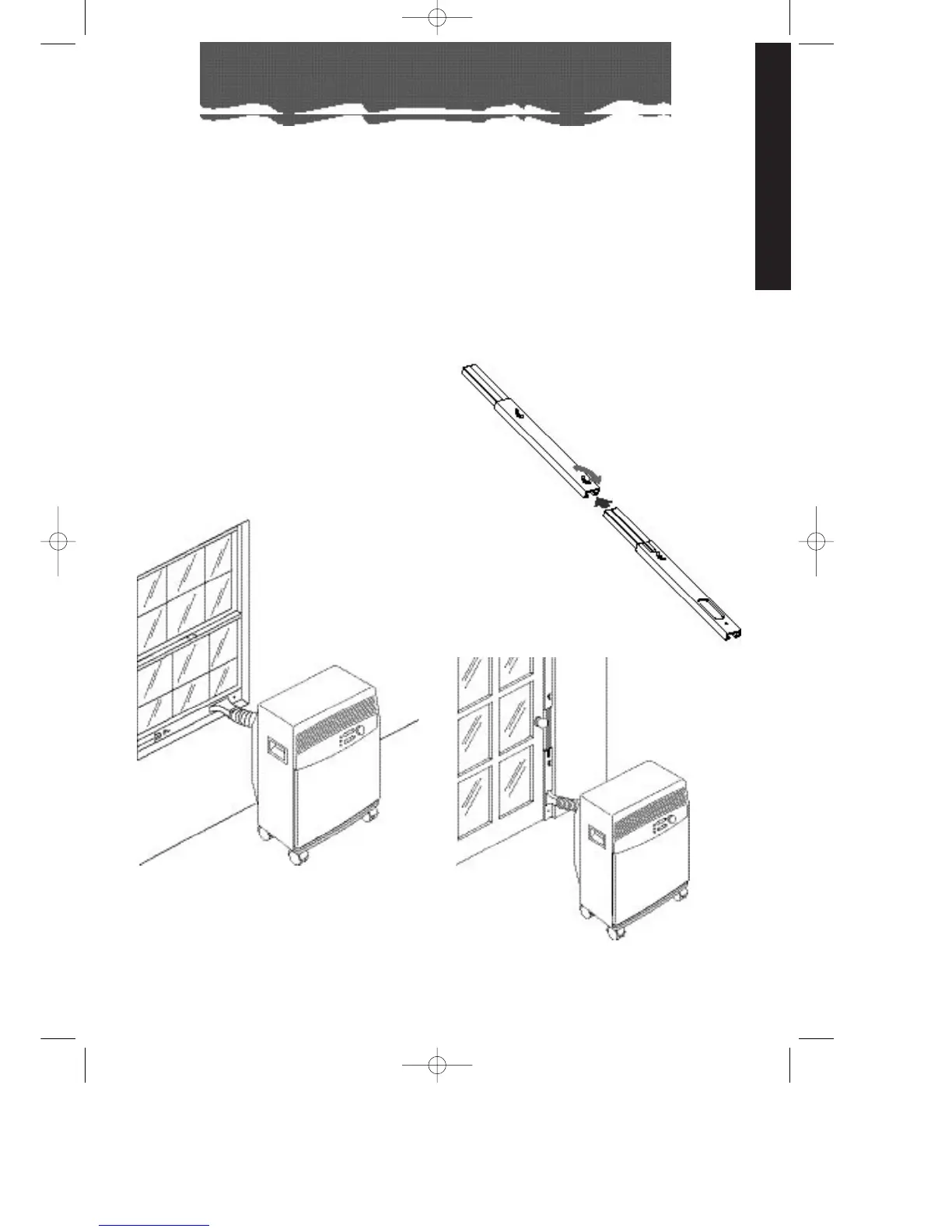

fig. 10
fig. 11
fig. 12
