Preparing for use

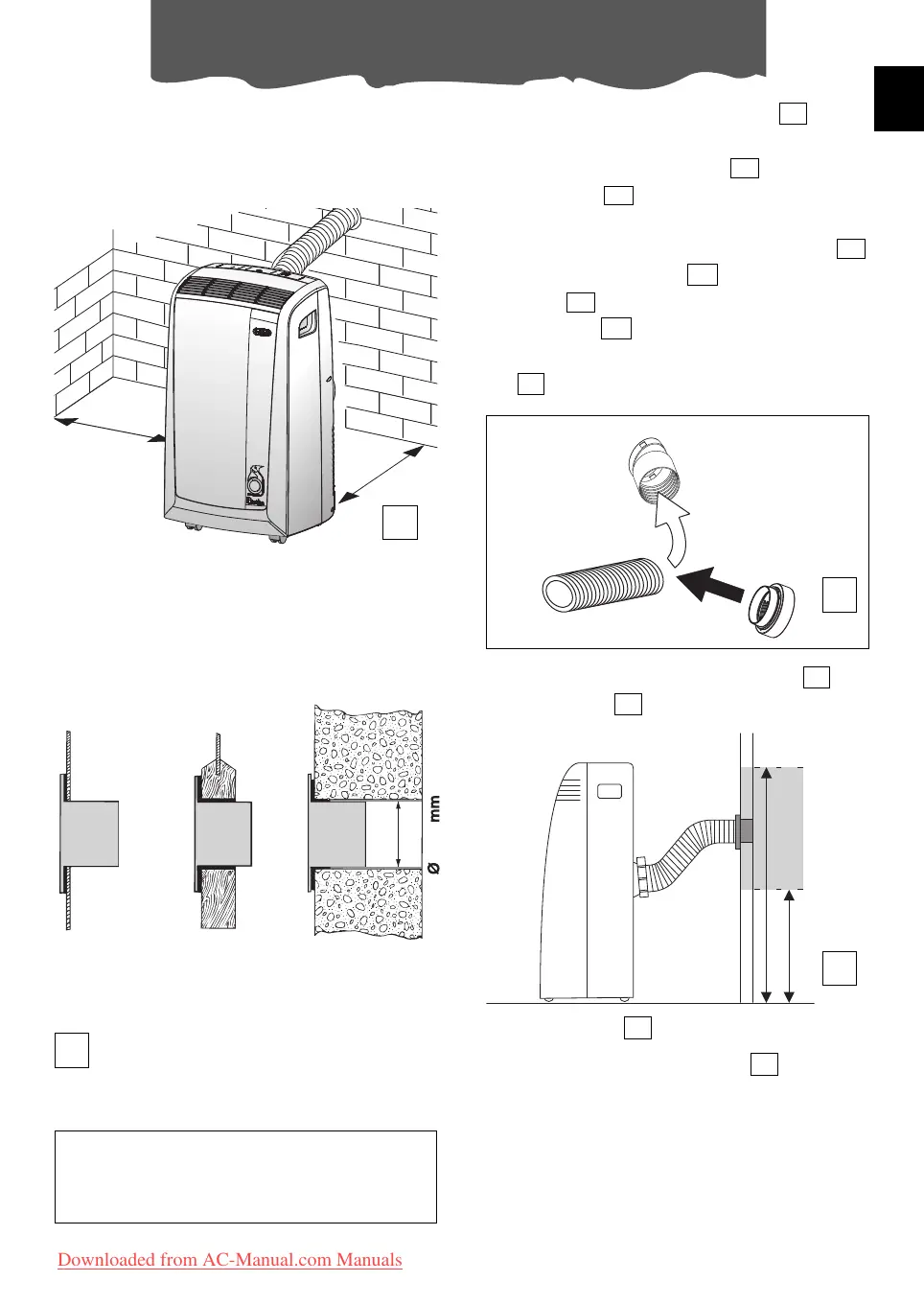

AIR-CONDITIONING WITH INSTALLATION
If required, your appliance can also be instal-
led semi-permanently (Fig. D).
• Fit the wall flange accessory provi-
ded in the hole.
• Fit the air exhaust hose in the rele-
vant hose located on the rear side of
the appliance (see fig. A).
• Screw the wall mounting accessory
al tubo uscita aria to the air exhaust
hose or, if necessary, unscrew the
adapter
from the air exhaust hose and
replace it with the wall installation terminal
(fig. F).
• Insert the other end of the hose on
the flange as shown in fig. G.
13
12
14
7
13
11
12
14
12
11
Proceed as follows:
• Drill a hole (ø134mm) in an outside wall or
through a window pane.
Respect the height and dimensions of the
hole given in figure E.
When the hose is not fitted, the hole can
be closed with the flange cap .
NOTE.
When installing the air conditioner semi-per-
manently, you should leave a door slightly
open (as little as 1 cm) to guarantee correct
ventilation.
11
12
in the window
pane
in the wall: you are
recommended to
insulate the section
of wall using suita-
ble insulation.
in the wooden
kickboard of a
French window
E
Keep the air hoses as short and free of
curves as possible to avoid constrictions.
