13
in the
window
panel
in the wooden
kickboard of a
French window
in the wall: you are
recommended to
insulate the section
of wall using suita-
ble insulation.
• Fit the wall ange (B1) into the hole.
• Fit the air exahaust hose (B2) into the wall ange (B1) (Fig.
9)
• When the hose (B2) is not connected, the drilled hole can
be closed with the ange cap (B1).
Please note: As special tools are required for installation, we
suggest you have the appliance installed by specialized person-
nel.
• When installing the air conditioner, you should leave a door
slightly open little as 1 cm to guarantee correct ventilation
and room pressure.
• Keep the air hose as short and free of curves as possible to
avoid constrictions.
OPERATING FROM THE CONTROL PANEL
C1
C15
C13
C12
C11
C10
C9
C8
C7
C6
C16C17
C3
C4
C2
C5
C14

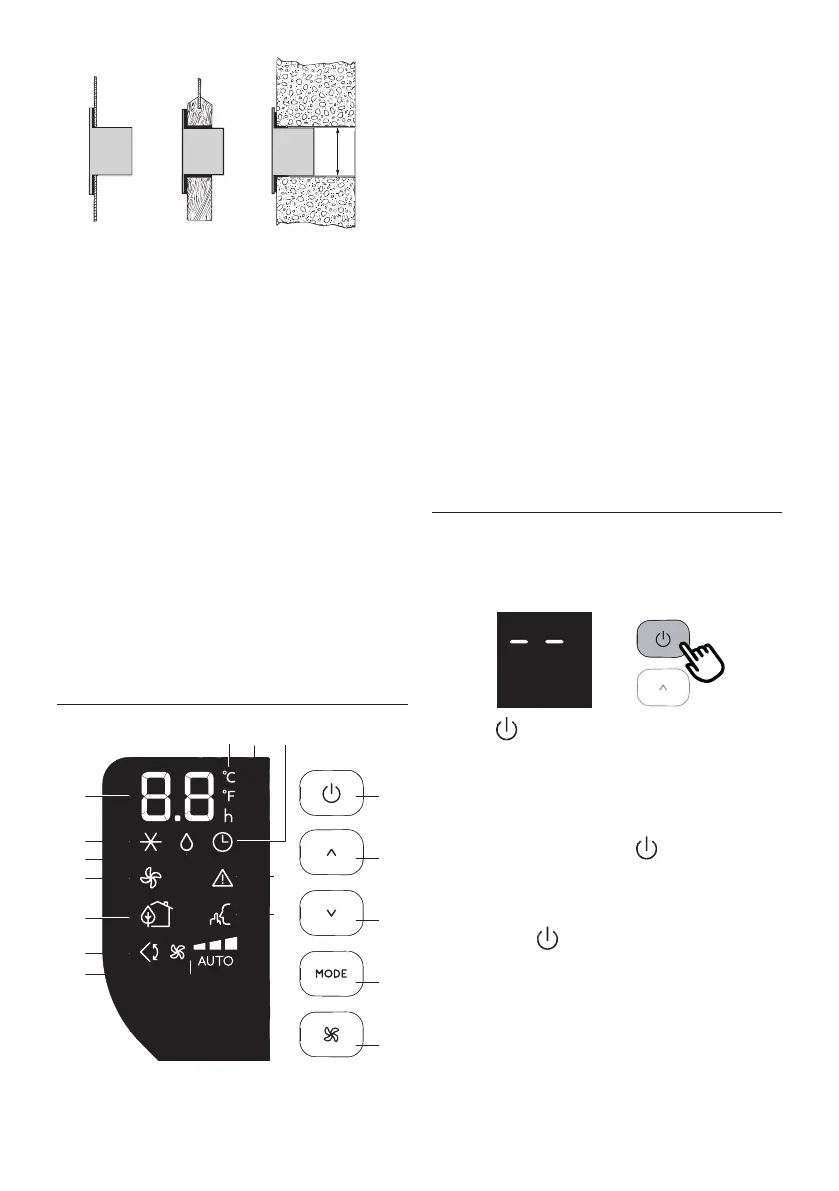

DESCRIPTION OF THE CONTROL PANEL (C)
C1. ON/STAND-BY (on/o) key
C2. Function selection key MODE (air conditioner, dehumidier,
fan)
C3. Temperature increase key
C4. Temperature decrease key
C5. Fan speed selection key (MIN/MED/MAX/AUTO)
C6. Air conditioner symbol
C7. Dehumidifyìng symbol
C8. Fan symbol
C9. ECO REAL FEEL status indicator
C10. Swing symbol
C11. Fan speed indicator
C12. SILENT symbol
C13. Alarm symbol
C14. Set temperature values, programmed on/o time
C15. Timer symbol
C16. Timer indicator
C17. Selected temperature scale indicator
CONTROL PANEL OPERATION
TURNING THE APPLIANCE ON AND OFF
Insert the plug in the socket. Two dashes appear on the display
indicating that the appliance is in stand-by.
Touch the (C1) key to turn on the appliance.
The ap A1 will open after few seconds. When the appliance
comes on the last function set before it was shut o is activated.
Please note: If start-up is not continued, after a few minutes
the display light dims in order to reduce energy consumption.
To turn the appliance o, touch the , key and then pull the
plug.
Please note: Never turn o the air conditioner by simply pulling
the plug. Touch the key in order to put your air conditioner in
stand-by and wait a few minutes before pulling the plug. In this
way, the appliance can perform the operating status checks..
