ADJUSTING BLADE GUIDE
BRACKETS
DISCONNECT MACHINE FROM
POWER SOURCE.
The left and right blade guide brackets (A) and (B) Fig.
22, are adjustable by loosening the two lock knobs (C)
and sliding the brackets to accommodate the width of
the work piece. The guide brackets (A) and (B) should be
set as close as possible to the workpiece, without
interfering or touching the workpiece, or contacting the
table. Once the adjustment is made, tighten the lock
knobs (C).

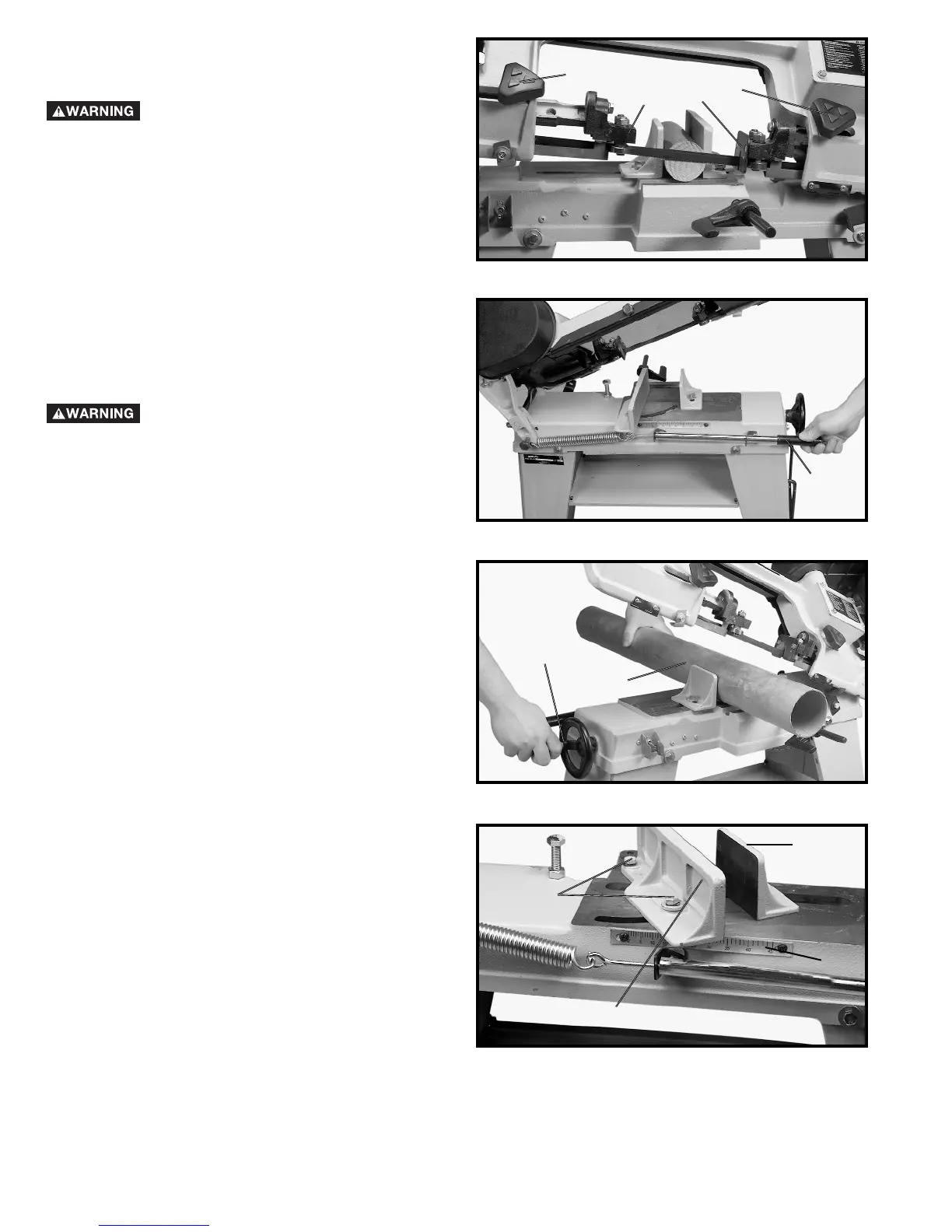

Fig. 22
ADJUSTING FEED RATE
DISCONNECT MACHINE FROM
POWER SOURCE.
The feed rate of the saw arm can be adjusted by turning
the control arm (A) Fig. 23, counterclockwise to increase
or clockwise to decrease the feed rate. Do not turn the
control arm more than one turn at a time. Excessive feed
pressure can break or stall the blade. Insufficient feed
pressure dulls the blade rapidly.
Fig. 23
OPERATING AND
ADJUSTING THE VISE
The workpiece (A) is placed between the vise jaws with
the required amount to be cut-off extending out past the
blade, as shown in Fig. 24. To tighten the workpiece in
the vise, turn handwheel (B).
The vise can be adjusted to cut any angle from 0
degrees to 45 degrees by loosening the two screws (C)
Fig. 25, and positioning the vise jaw (D) to the desired
angle. A scale (E) is positioned on the rear of the table to
give the proper cutting angle. lt may also be necessary
when angle cutting to move the left vise jaw (F) to the
rear to clear the blade guide bracket.
Fig. 24
Fig. 25
C
C
A
B
A
B
A
F
C
D
E
