arning
EN
DVP-SX is an OPEN-TYPE device. It should be installed in a control cabinet free of airborne dust, humidity,
electric shock and vibration. To prevent non-maintenance staff from operating DVP-SX, or to prevent an accident
from damaging DVP-SX, the control cabinet in which DVP-SX is installed should be equipped with a safeguard.
For example, the control cabinet in which DVP-SX is installed can be unlocked with a special tool or key.
EN
DO NOT connect AC power to any of I/O terminals, otherwise serious damage may occur. Please check all wiring
again before DVP-SX is powered up. After DVP-SX is disconnected, Do NOT touch any terminals in a minute.
Make sure that the ground terminal
on DVP-SX is correctly grounded in order to prevent electromagnetic
interference.
FR
DVP-SX est un module OUVERT. Il doit être installé que dans une enceinte protectrice (boitier, armoire, etc.) saine,
dépourvue de poussière, d’humidité, de vibrations et hors d’atteinte des chocs électriques. La protection doit éviter
que les personnes non habilitées à la maintenance puissent accéder à l’appareil (par exemple, une clé ou un outil
doivent être nécessaire pour ouvrir a protection).
FR
Ne pas appliquer la tension secteur sur les bornes d’entrées/Sorties, ou l’appareil DVP-SX pourra être
endommagé. Merci de vérifier encore une fois le câblage avant la mise sous tension du DVP-SX. Lors de la
déconnection de l’appareil, ne pas toucher les connecteurs dans la minute suivante. Vérifier que la terre est bien
reliée au connecteur de terre
afin d’éviter toute interférence électromagnétique.
Introduction
Thank you for choosing the Delta DVP series PLC. The DVP-SX series PLC is a 10-point (4DI+2DO+2AI+2AO)
mixed PLC. İt has four digital input points, two digital output points, two 12-bit analog (voltage/current) input
channels, and two 12-bit analog (voltage/current) output channels. Besides, the DVP-SX series PLC has
bipolar voltage/current output capacity. It has a built-in two-digit seven-segment display corresponding to
internal specail registers. The two-digit seven-segment dispaly is used to display a station address or a
user-defined code. If an error occurs, the display will show “Er” and “01” or “02” alternately. (“01” indicates a
syntax error, and “02” indicates a PLC program loss).

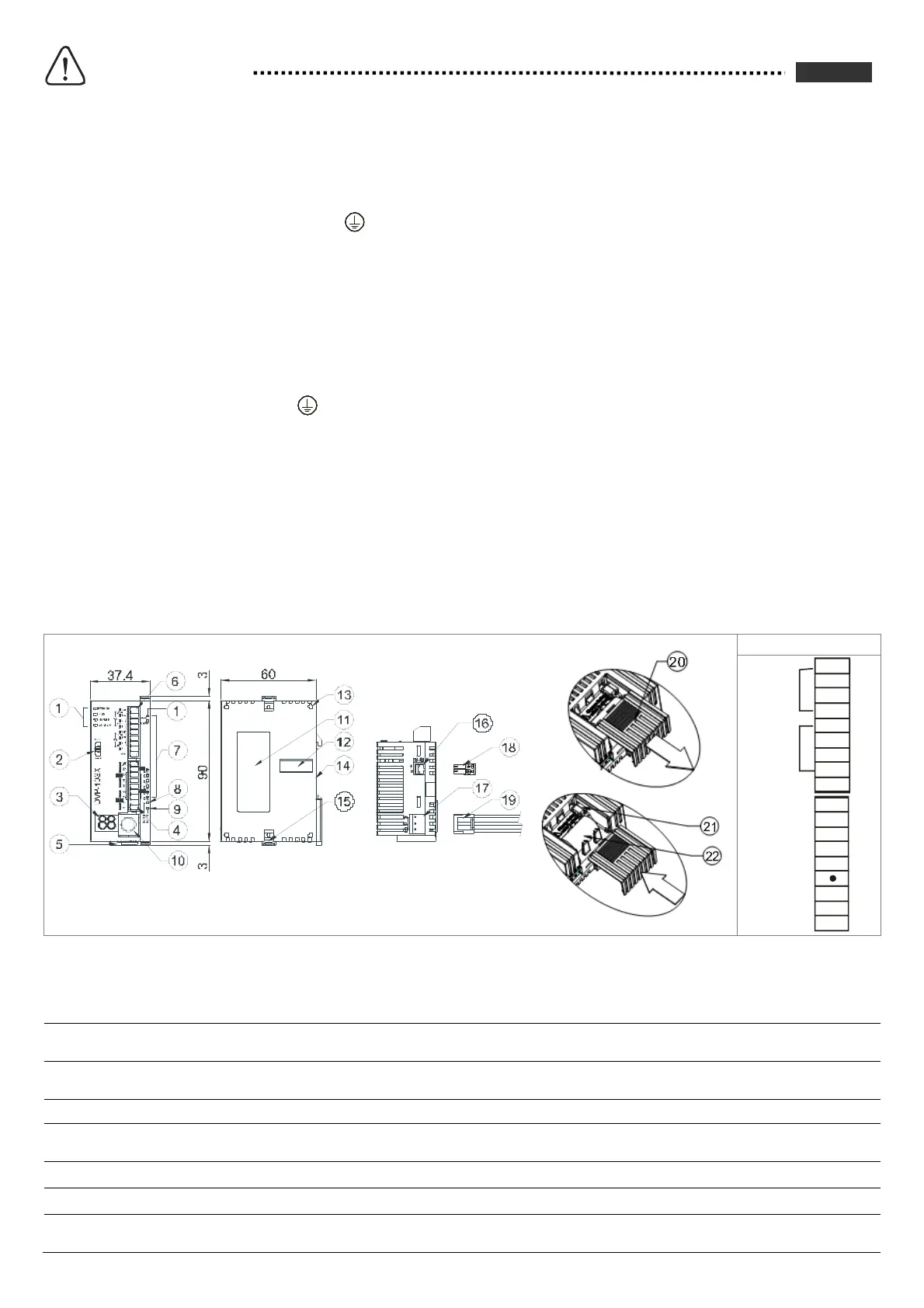

Product Profile and Outline
Unit: mm
Terminal layout
V0+
S/S
X0
X1
X2
Y0
Y1
C0
X3
I0+
V1+
I1+
V0+
I0+
V1+
I1+
COM
A/D
D/A
1
POWER indicator, RUN indicator,
ERROR indicator, BAT.LOW
indicator, AD
*1
indicator,
ALARM
*2
indicator
9 COM2 (RS-485) (Tx) indicator 17 DC power input
2 RUN/STOP switch 10
COM1 (RS-232 port)
(Slave)
18
2-pin removable terminal
block (standard accessory)
3 Two-digital seven-segment display 11 Nameplate 19
Power input cable
(standard accessory)
4 Digital I/O terminals 12 Extension port 20 Battery cover
5 DIN rail clip 13
Mounting hole of the extension
unit
21 Battery connector
*3
6 Analog I/O terminals 14 DIN rail groove (35mm) 22 Battery holder
7 Input/Output indicators 15 Extension unit clip
8 COM1 (RS-232) (Rx) indicator 16
COM2 (RS-485 port)
(Master/Slave)
ENGLISH
