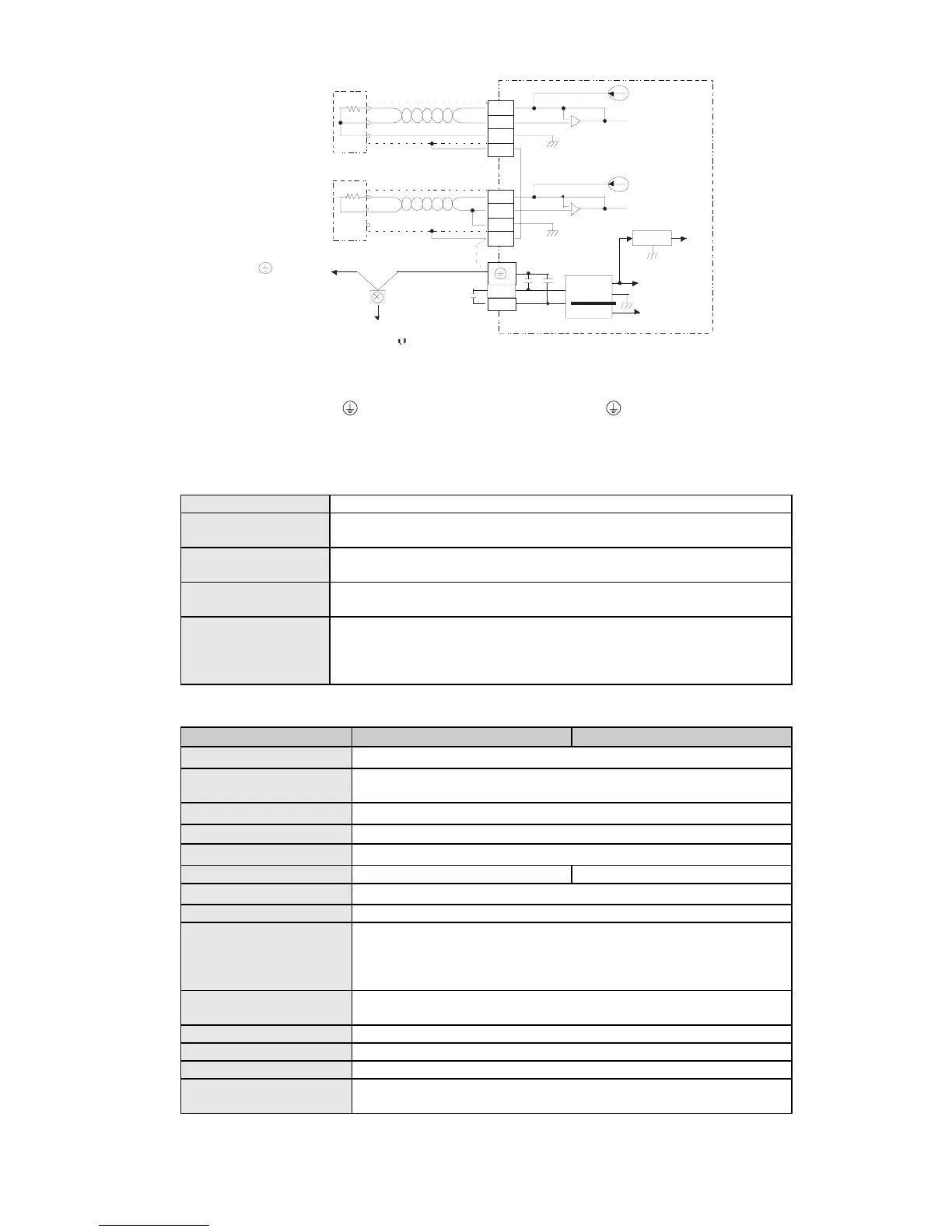

External Wiring
PT100
PT 10 00
CH 1
CH 4
1.5 3mA
DC / DC
5V
AG
+15V
-15V
AG
AG
AG
24 +
24 -
FG
I-
L-
L+
FG
I-
L-
L+
*2
*3
0.2048mA
3- wire
2- wi re
Syste m
Class 3 Grounding
(Below 100 )
Te rmin al of
the po we r mo du le
Sh ie ld ed cab le *1
Grounding
Sh ie ld ed cab le *1
Note1: Use only the wires that are packed with the temperature sensor for analog input and
separate from other power line or any wire that may cause noise.
Note2: Terminal FG is grounded for noise suppression.
Note3: Please connect
power supply module terminal and DVP04PT-S temperature
measurement module terminal to system earth ground.
Warning: DO NOT connect wires to the No Connection terminals.
Electrical Specifications
Power supply voltage 24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%)
Max. rated power
consumption
2W, supplied by external power.
Operation/storage
Operation: 0°C~55°C (temp.), 5~95% (humidity), pollution degree 2
Storage: -25°C~70°C (temp.), 5~95% (humidity)
Vibration/shock
resistance
International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/
IEC61131-2 & IEC 68-2-27 (TEST Ea)
Series connection to
DVP-PLC MPU
The modules are numbered from 0 to 7 automatically by their distance
from MPU. No.0 is the closest to MPU and No.7 is the furthest.
Maximum 8 modules are allowed to connect to MPU and will not
occupy any digital I/O points.
Functional Specifications
DVP04PT-S Celsius (°C) Fahrenheit (°F)
Analog input channel 4 channels per module
Sensors type
2-wire/3-wire PT100/ Ni100/ PT1000/ Ni100 3850 PPM/°C (DIN
43760 JIS C1604-1989)
Current excitation 1.53mA / 204.8uA
Temperature input range Please refer to the temperature/digital value characteristic curve.
Digital conversion range Please refer to the temperature/digital value characteristic curve.
Resolution 16 bits (0.1°C) 16 bits (0.1°F)
Overall accuracy
±0.6% of full scale during 0 ~ 55°C (32 ~ 131°F)
Response time 200ms × channels
Isolation method
Isolation between digital and analog circuitry. There is no isolation
between channels.
500VDC between digital circuits and Ground
500VDC between analog circuits and Ground
Isolation method
500VDC between analog circuits and digital circuits
500VDC between 24VDC and Ground
Digital data format 2’s complement of 16-bit
Average function Yes (CR#2 ~ CR#5)
Self diagnostic function Yes
Communication mode
(RS-485)
Yes (CR#32). RS-485 is disabled when the DVP04PT-S is
connected in series with an MPU.
