Delta KPC-CC01 User Manual

Chapter 7 Optional AccessoriesCP2000
7-107

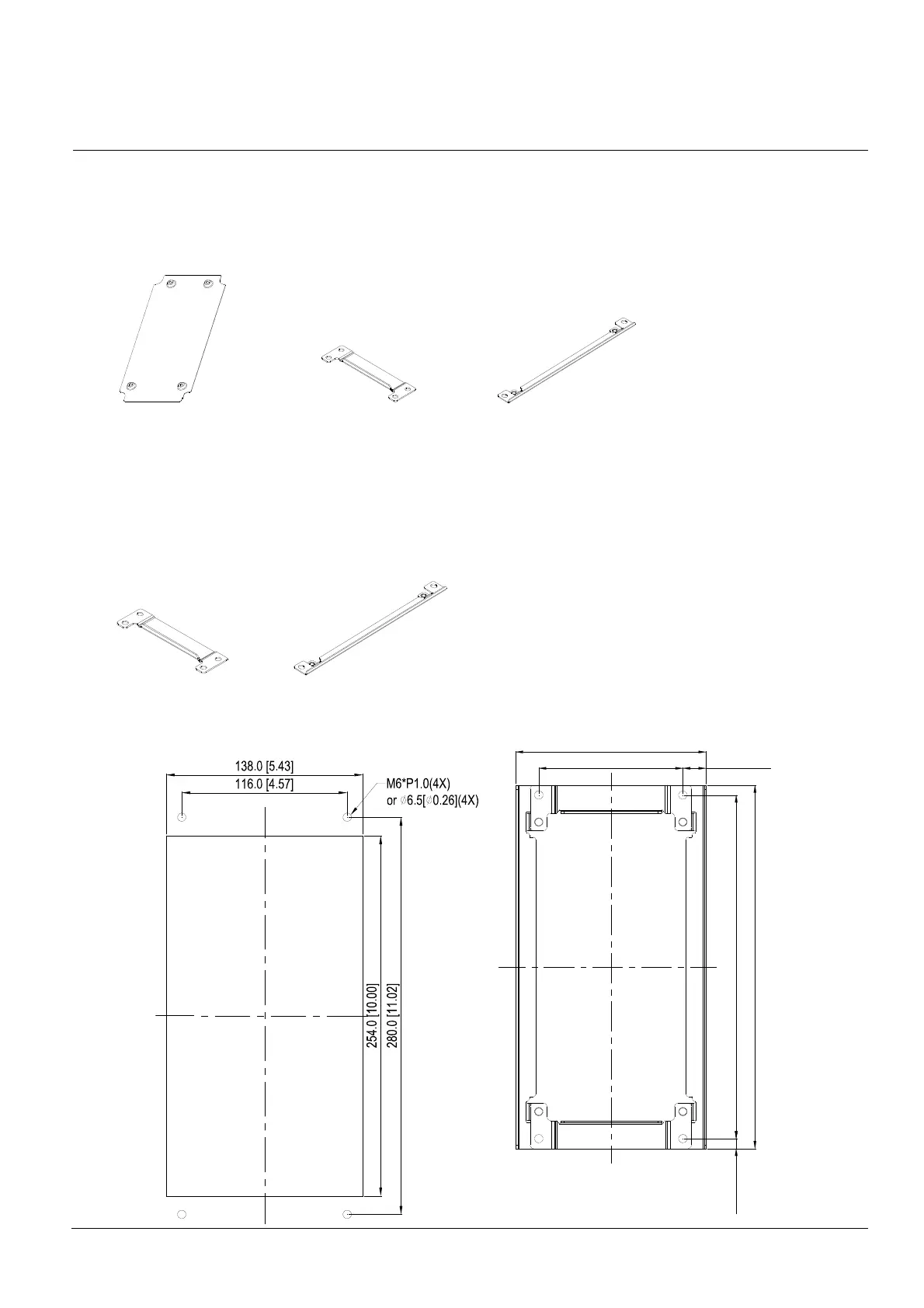

7-10 Flange Mounting Kit
Applicable Models, Frame A–F
Frame A
『MKC-AFM1』
Applicable model
VFD022CP23A-21; VFD022CP43B-21; VFD022CP4EB-21; VFD037CP23A-21; VFD015CP53A-21;
VFD022CP53A-21; VFD037CP53A-21
Accessories 1*1 Accessories 2*2 Accessories 3*2
Screw 1 *4
M3*P 0.5; L=6mm
Screw 2*8
M6*P 1.0; L=16mm
『MKC-AFM』
Applicable model
VFD007CP4EA-21; VFD015CP23A-21; VFD015CP43B-21; VFD015CP4EB-21; VFD022CP23A-21;
VFD037CP43B-21; VFD037CP4EB-21; VFD055CP23A-21; VFD040CP43A-21; VFD040CP4EA-21;
VFD055CP43B-21; VFD055CP4EB-21; VFD075CP43B-21; VFD075CP4EB-21
Accessory 2*2
Accessory 3*2
Screw *8
M6*P 1.0; L=16mm
Cutout dimension Unit : mm [inch]
296.0 [11.65]
116.0 [4.57] 18.6 [0.73]
153.2 [6.03]
8.0 [0.31] 280.0 [11.02]
