Delta MultiChoice T27 Series User Manual

107532 Rev. B
2

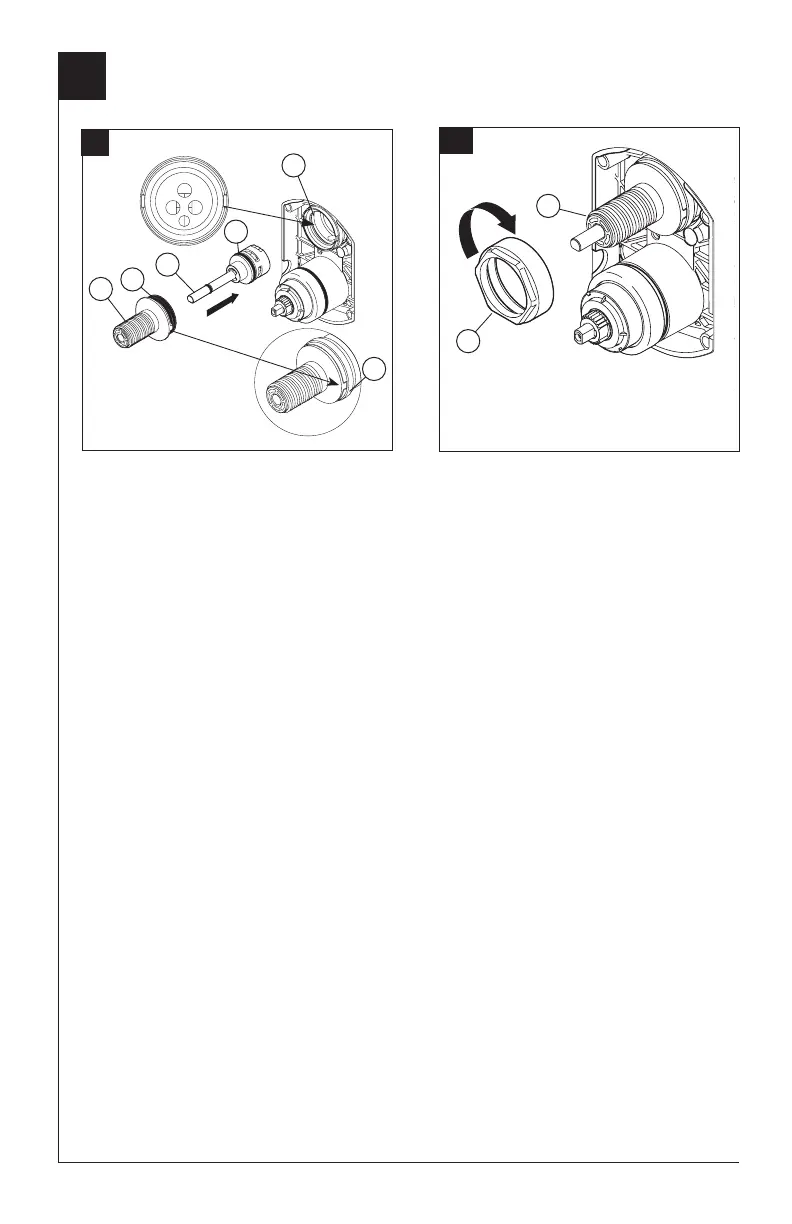

Diverter Cartridge Installation
4
For Bonnet Installation
Slide bonnet nut (1) over diverter sleeve (2)
and thread into rough-in body.
Hand tighten securely.
B.
FOR DIVERTER CARTRIDGE
INSTALLATION:
Apply silicone lube to the o-ring (2) to make
the diverter sleeve (3) easier to install diverter
cartridge. A light coating of plumbers grease
applied to o-rings (4) may aid in assembly.
Install diverter cartridge (1) assuring that the
locating pin on the bottom of the cartridge
aligns with mating hole in rough-in body.
Slide diverter sleeve (3) over cartridge stem
aligning tabs on the diverter sleeve with slots
in rough-in body (5).
A.
3
1
5
2
1
2
5
4
