Delta VFD007EL21W-1 User Manual

Chapter 3 Keypad and Start-up  VFD-EL-W
3-4

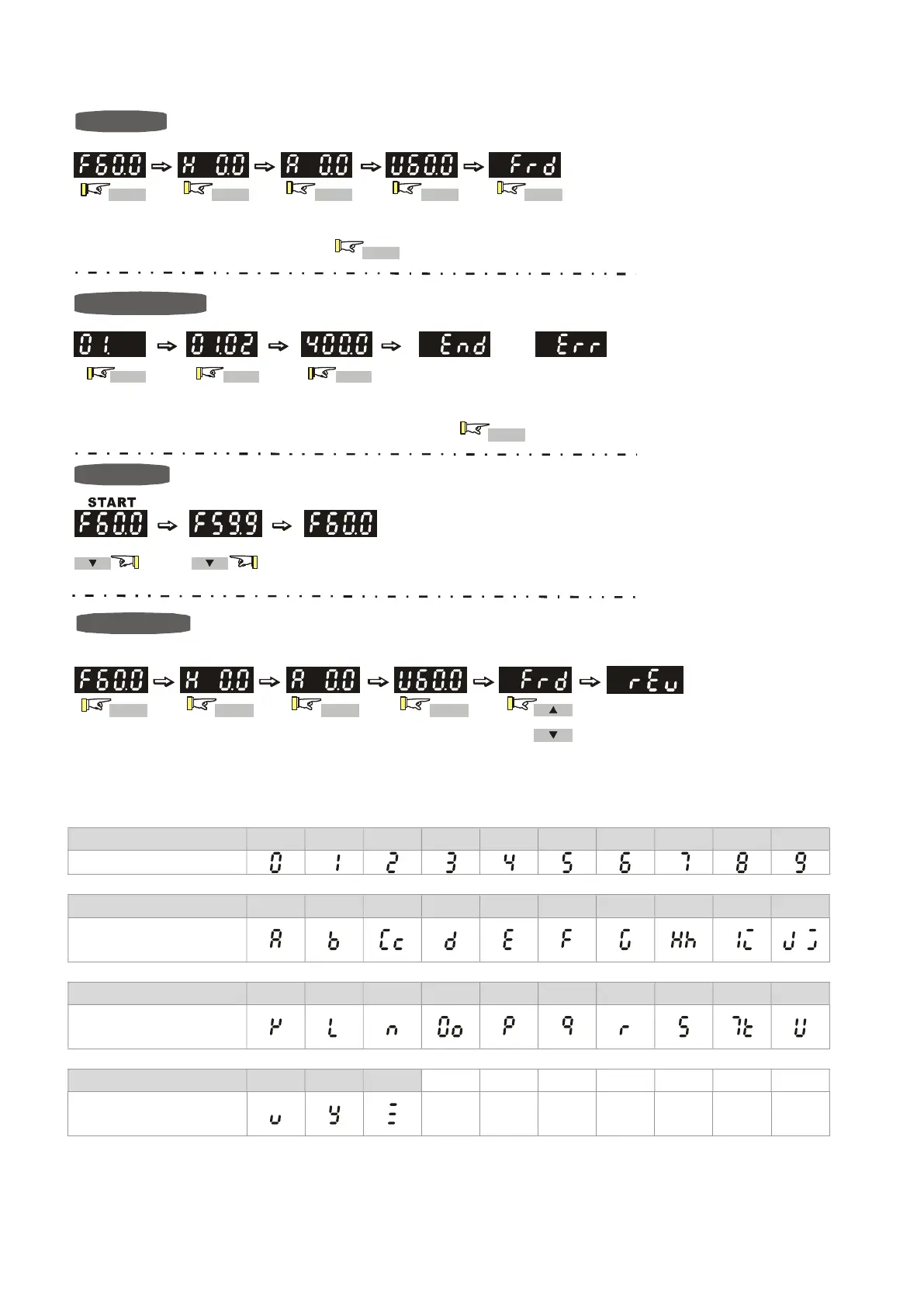

Keypad Operation Process
To shift data
Setting direction
Setting Mode
Setting parameters
Success to
set parameter.
Input data error
NOTE
：
In the parameter setting mode, you can press
to return the selecting mode.
(When operation source is digital keypad)
S TAR T
GO STA RT
MO DE MO DE MO DE MODE MODE
NOTE :
In the selection mode, press
to set the parameters.
MO DE
or
ENTER ENTE R ENT ER
MODE
or
MODE
MODE
MO DE
MODE
Reference Table for the Seven-segment LED Display of the Digital Keypad
Digit 0 1 2 3 4 5 6 7 8 9
LED Display
English alphabet A b Cc d E F G Hh Ii Jj
LED
Display
English alphabet K L n Oo P q r S Tt U
LED
Display
English alphabet v Y Z
LED
Display

Delta VFD007EL21W-1 Specifications

General

Brand	Delta
Model	VFD007EL21W-1
Category	DC Drives
Language	English
