Chapter 17 Safe Torque Off Function C2000-HS
17-3
17-3 Wiring Diagram

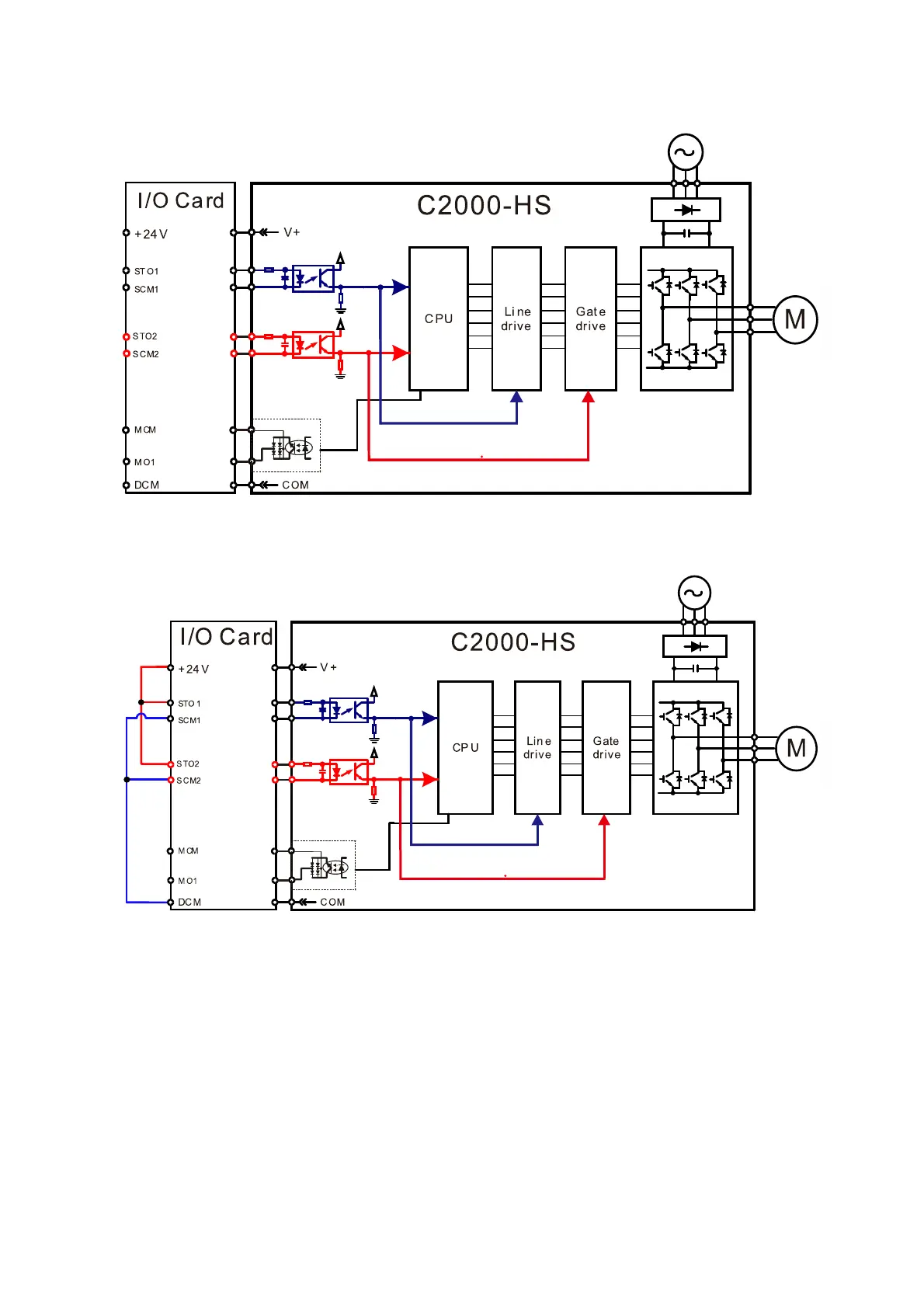

17-3-1 Internal STO circuit as below:
17-3-2 In the figure below, the factory setting for +24V-STO1-STO2 and SCM1-SCM2-DCM is
short-circuited:
