Chapter 7 Optional AccessoriesMS300
109
7-13 Mounting Adapter Plate
The mounting adapter plate is to change the wiring method for the ME300 / MS300 / MH300 series to
provide you a flexible installation. It changes the wiring method from the “bottom-mains input/ bottom-
motor output" to the “top-mains input/bottom-motor output" for ME300 / MS300 / MH300. Therefore, you
can use the mounting adapter plate to change the drive from VFD-E/VFD-EL series to ME300/
MS300/MH300 series without changing the original wiring method and fixing hole. The following table
shows the correspondences.
MKM-MAPB: Applicable for Frame A and B
Unit: mm (inch)

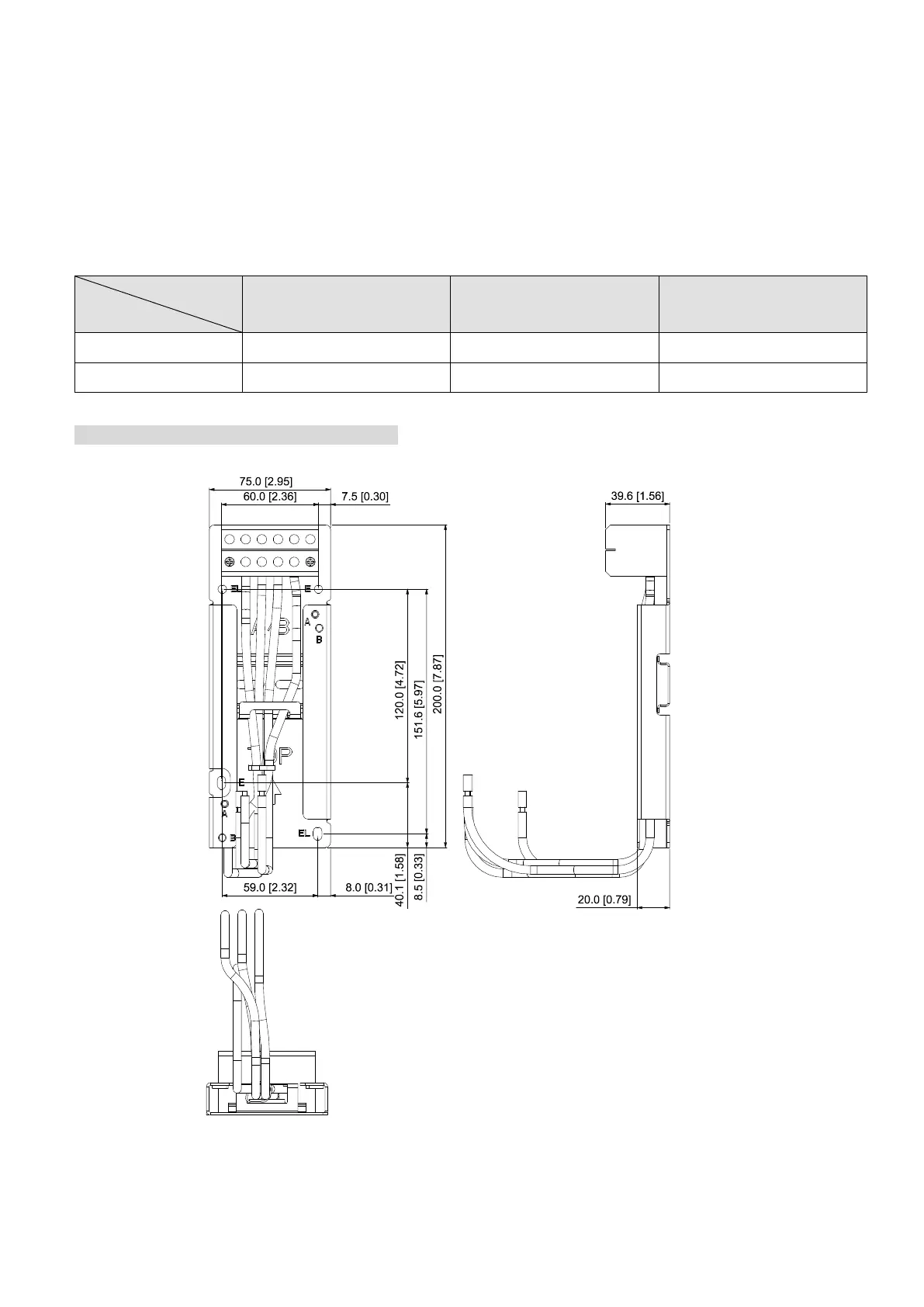

Figure 7-75
Series
Models
ME / MS / MH300
VFD-E
VFD-EL
MKM-MAPB
Frame A–B
Frame A
Frame A
MKM-MAPC
Frame C
Frame B
Frame B
Table 7-58
