Chapter 12 Descriptions of Parameter SettingsMS300
296
Pr.02-00

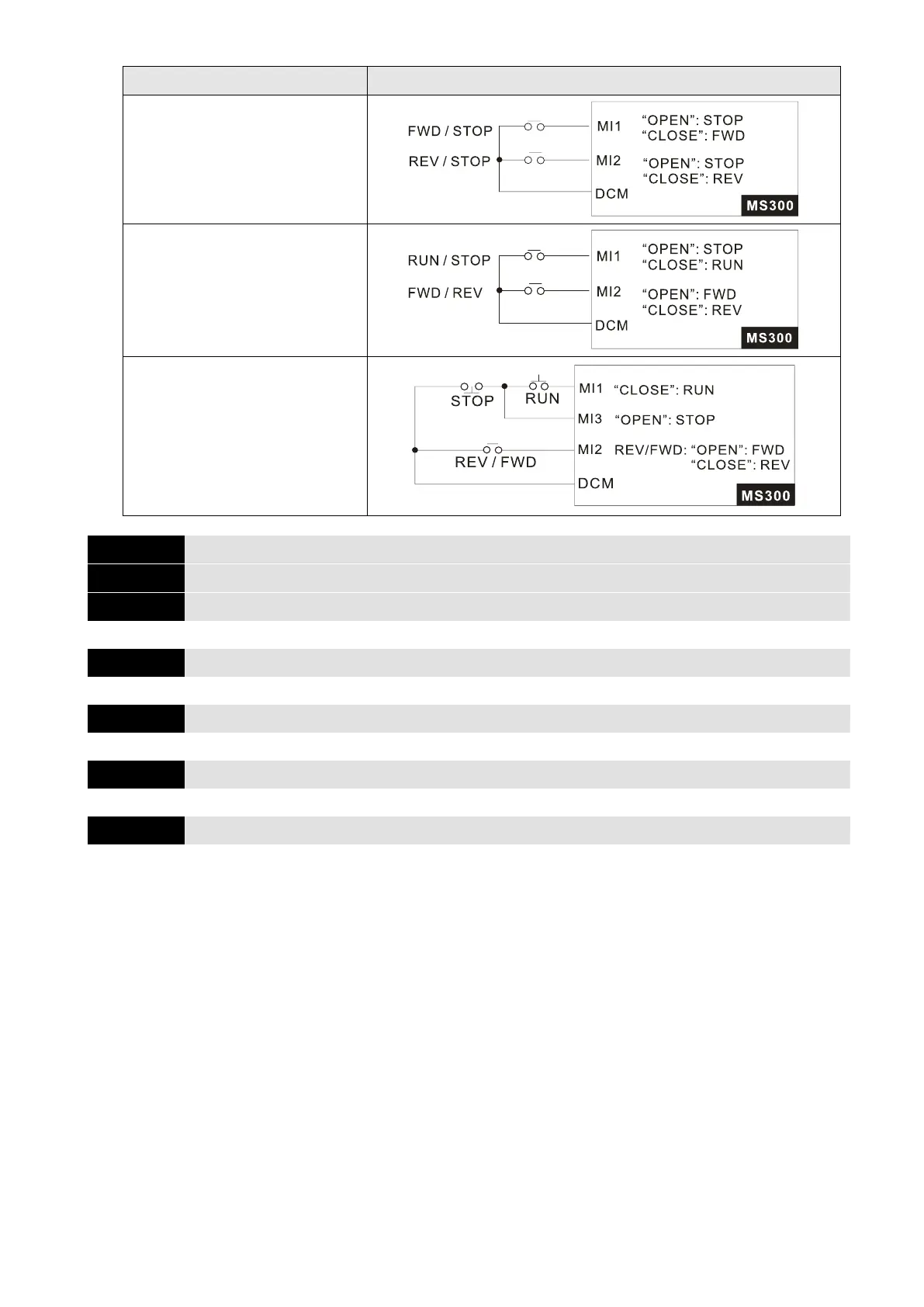

External Terminal Control Circuits
Setting value: 4
Two-wire operation control
Quick Start
Setting value: 5
Two-wire operation control
Quick Start
Setting value: 6
Three-wire operation control
Quick Start
02-01
Multi-Function Input Command 1 (MI1)
02-02
Multi-Function Input Command 2 (MI2)
02-07
Multi-Function Input Command 7 (MI7)
Default: 0
02-03
Multi-Function Input Command 3 (MI3)
Default: 1
02-04
Multi-Function Input Command 4 (MI4)
Default: 2
02-05
Multi-Function Input Command 5 (MI5)
Default: 3
02-06
Multi-Function Input Command 6 (MI6)
Default: 4
Settings
12-1-1-2
0: No function
12-1-1-3
1: Multi-step speed command 1
2: Multi-step speed command 2
3: Multi-step speed command 3
4: Multi-step speed command 4
5: Reset
12-1-1-4
6: JOG operation [by external control or KPC-CC01 (optional)]
12-1-1-5
7: Acceleration / deceleration speed inhibit
12-1-1-6
8: The first and second acceleration / deceleration time selection
12-1-1-7
9: The third and fourth acceleration / deceleration time selection
12-1-1-8
10: External Fault (EF) input (Pr.07-20)
12-1-1-9
11: Base Block (B.B.) input from external
12-1-1-10
