33
AVR-3803/1083/AVC-3570
ADSST-MEL100 (DS: IC801)
NC A01
BMSTR A02
BMS_B A03
SPIDS A04
EBOOT A05
LBOOT A06
SCLK2 A07
SD3B A08
L0DAT[4] A09
L0ACK A10
L0DAT[2] A11
L1DAT[6] A12
L1CLK A13
L1DAT[2] A14
NC A15
FLAG10 E01
RESET_B E02
FLAG8 E03
SD0A E04
VDDEXT E05
VDDINT E06
VDDEXT E07
VDDINT E08
VDDEXT E09
VDDINT E10
VDDEXT E11
L0DAT[0] E12
DATA[39] E13
DATA[43] E14
TRST_B B01
TD1 B02
RPBA B03
MOSI B04
SFS0 B05
SCLK1 B06
SD2B B07
SD3A B08
L0DAT[7] B09
L0CLK B10
L0DAT[1] B11
L1DAT[4] B12
L1ACK B13
L1DAT[0] B14
NC B15
FLAG5 F01
FLAG7 F02
FLAG9 F03
FLAG6 F04
VDDINT F05
GND F06
GND F07
GND F08
GND F09
GND F10
VDDINT F11
DATA[37] F12
DATA[40] F13
DATA[38] F14
TMS C01
EMU_B C02
GND C03
SPICLK C04
SD08 C05
SD1A C06
SD2A C07
SFS2 C08
SFS3 C09
L0DAT[6] C10
L1DAT[7] C11
L1DAT[3] C12
L1DAT[1] C13
DATA[45] C14
DATA[47] C15
FLAG1 G01
FLAG2 G02
FLAG4 G03
FLAG3 G04
VDDEXT G05
GND G06
GND G07
GND G08
GND G09
GND G10
VDDEXT G11
DATA[34] G12
DATA[35] G13
DATA[33] G14
DATA[41] E15
IRQ2_B J01
ID1 J02
ID2 J03
ID0 J04
VDDEXT J05
GND J06
GND J07
GND J08
GND J09
GND J10
VDDEXT J11
DATA[26] J12
DATA[24] J13
DATA[25] J14
DATA[27] J15
ADDR[14] N01
ADDR[15] N02
ADDR[10] N03
ADDR[5] N04
ADDR[1] N05
MS0_B N06
BR5_B N07
BR2_B N08
BRST N09
SDCKE N10
CS_B N11
CLK_CFG1 N12
CLK_CFG0 N13
AVDD N14
DMARI1_B N15
DATA[36] F15
TIMEXP K01
ADDR[22] K02
ADDR[20] K03
ADDR[23] K04
VDDINT K05
GND K06
GND K07
GND K08
GND K09
GND K10
VDDINT K11
DATA[22] K12
DATA[19] K13
DATA[21] K14
DATA[23] K15
ADDR[13] P01
ADDR[9] P02
ADDR[8] P03
ADDR[4] P04
MS2_B P05
SBTS_B P06
BR4_B P07
BR1_B P08
SDCLK1 P09
SDCLK0 P10
REDY P11
CLKIN P12
DQM P13
AVSS P14
DMAR2_B P15
DATA[32] G15
ADDR[19] L01
ADDR[17] L02
ADDR[21] L03
ADDR[2] L04
VDDEXT L05
VDDINT L06
VDDEXT L07
VDDINT L08
VDDEXT L09
VDDINT L10
VDDEXT L11
CAS_B L12
DATA[20] L13
DATA[16] L14
DATA[18] L15
NC R01
ADDR[11] R02
ADDR[7] R03
ADDR[3] R04
MS3_B R05
PA_B R06
BR3_B R07
RDL_B R08
CLKOUT R09
HBR_B R10
HBG_B R11
CLKDBL R12
XTAL R13
SDWE_B R14
NC R15
DATA[31] H15
ADDR[16] M01
ADDR[12] M02
ADDR[18] M03
ADDR[6] M04
ADDR[0] M05
MS1_B M06
BR6_B M07
VDDEXT M08
WRL_B M09
SDA10 M10
RAS_B M11
ACK M12
DATA[17] M13
DMAG2_B M14
DMAG1_B M15

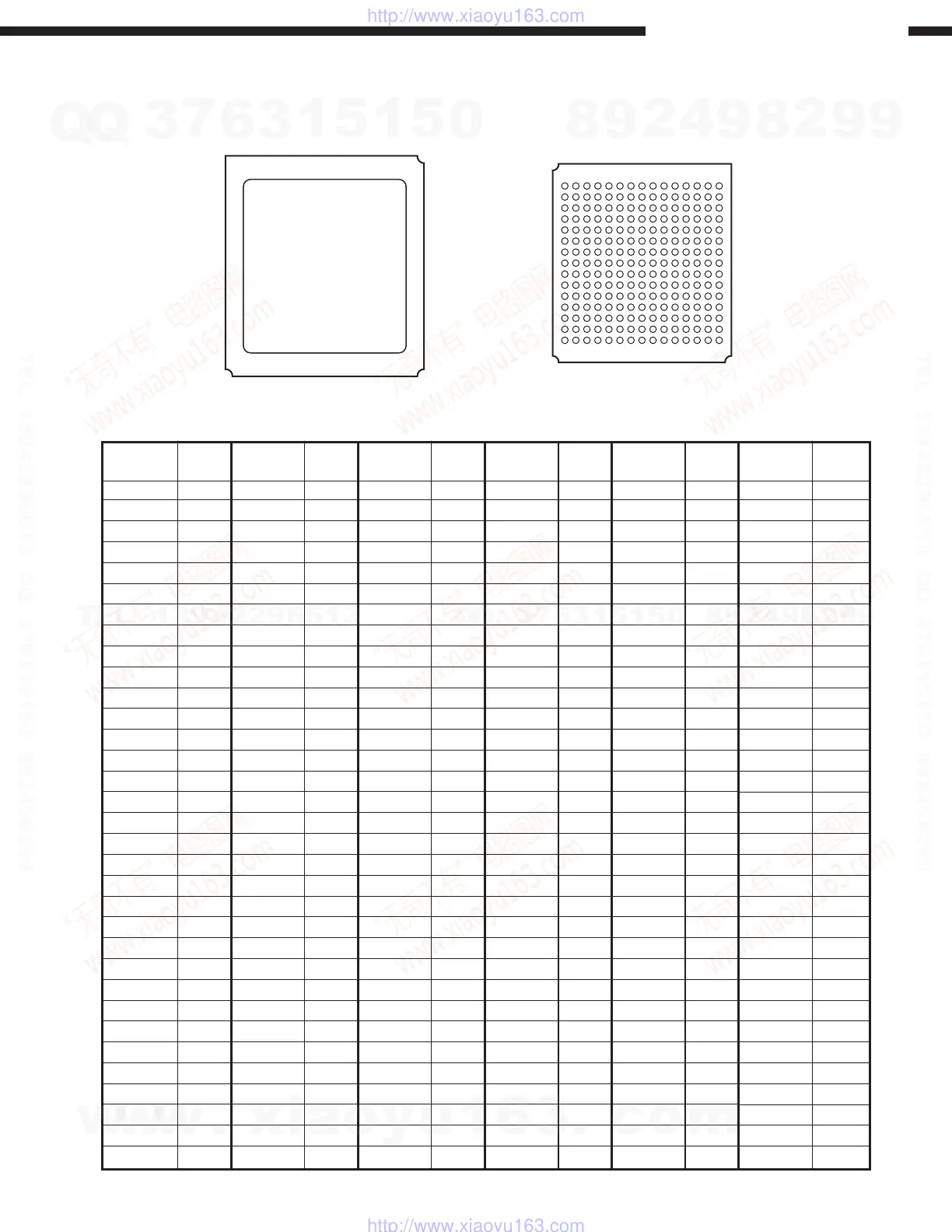

ADSST-MEL100 Terminal Function
Pin Name
Pin No.
Pin Name
Pin No.
Pin Name
Pin No.
Pin Name
Pin No.
Pin Name
Pin No.
Pin Name
Pin No.
TOP VIEW
BOTTOM VIEW
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
B
C
D
E
F
G
H
J
K
L
M
N
P
R
