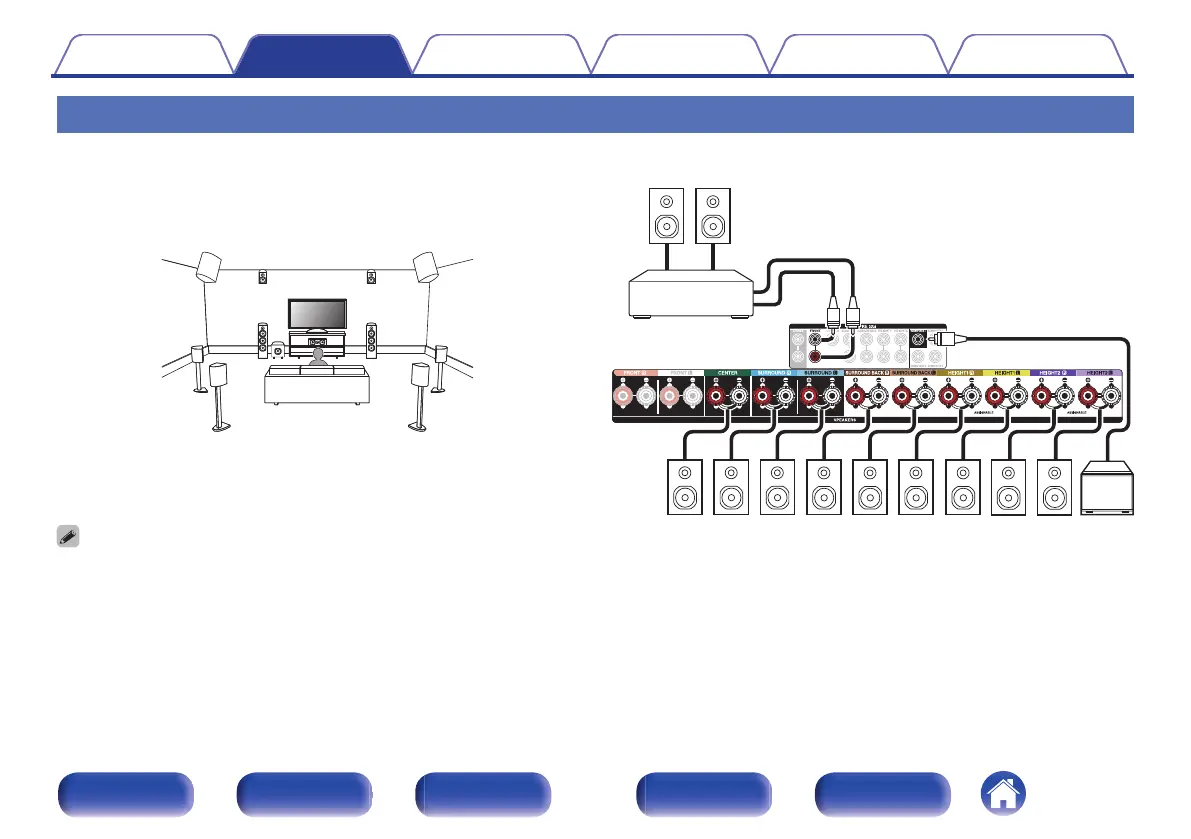

Connecting 11.1-channel speakers
o
Example layout when using surround back
and two sets of height speakers
C
FL FR
SBL
SBR
SW
SL SR
FHL FHR
RHL RHR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 41)
0
“Connecting an external power amplifier” (v p. 42)
0
Set “Floor” to “5ch & SB” and “Height Sp” (or “Dolby Sp”) to “4ch” in the menu
when connecting in this configuration. (v p. 195)
FHR FHL
RHR RHL
C SR SL SBR SBL
SW
FR FL
Power amplifier
z
1
z
1
z
1
z
1
z
2
z
2
z
1
You can change the Front Height Speakers and Rear Height Speakers to any
Height/Ceiling/Dolby Atmos Enabled speakers in the “Amp Assign” - “Layout”
setting. (v p. 198)
z2
You can connect the external power amplifier to the Height 2 or Surround back
channel instead of the Front channel. Use the “Pre-out” setting in the menu to
set the channel connected to the external power amplifier. (v p. 202)
