Getting Started

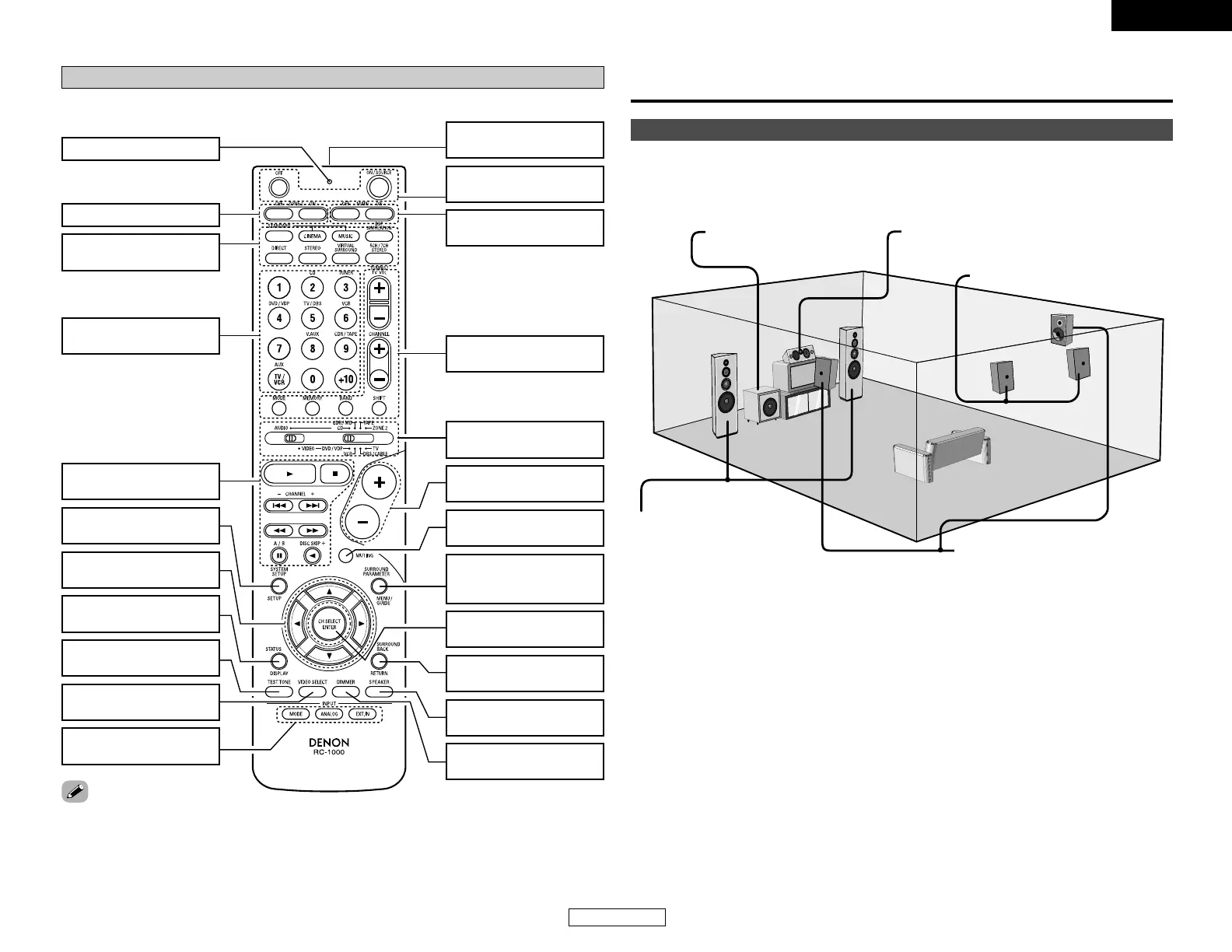

Remote control unit
For details on the functions of these parts, refer to the pages given in parentheses ( ).
SURROUND MODE
buttons·················(18, 27)
Indicator ···············(32, 34)
Input source selector
buttons·················(18, 32)
System buttons
······························(31~34)
SYSTEM SETUP/SETUP
button···················(12, 33)
Cursor buttons
······························(21, 33)
STATUS/DISPLAY
button ············(19, 25, 33)
TEST TONE button
····································(15)
VIDEO SELECT button
····································(19)
Remote control signal
transmitter···················(3)
Power buttons
································(7, 33)
Tuner system/System
buttons·················(29, 34)
MUTING button
····································(18)
Master volume control
buttons·················(18, 35)
Mode selector switches
································(7, 31)
CH SELECT/ENTER
button
·····················
(22, 29)
SURROUND
PARAMETER/System
button···················(21, 33)
SPEAKER button
································(7, 19)
SURROUND BACK/
RETURN button···(24, 33)
Input mode selector
buttons ················(18~20)
DIMMER button
····································(19)
ZONE2 buttons····(34, 35)
MAIN buttons
································(4, 34)
• The Dolby Surround Pro Logic II(x) Cinema or Music mode can be chosen directly by pressing the
CINEMA or MUSIC button on the remote control unit during playback in the Dolby Surround Pro
Logic II (x) mode.
• The DTS NEO:6 Cinema or Music mode can be chosen directly by pressing the CINEMA or MUSIC
button on the remote control unit during playback in the DTS NEO:6 mode.
• The main zone output can be turned on and off with the MAIN button.
MEMO
Easy Operation
Speaker system layout
2 Basic system layout
The following is an example of the basic layout for a system consisting of eight speaker systems
and a television monitor:
Subwoofer Center speaker system
Surround speaker systems
Surround back speaker systems
Front speaker systems
Set these at the sides of the TV
or screen with their front surfaces
as flush with the front of the
screen as possible.
