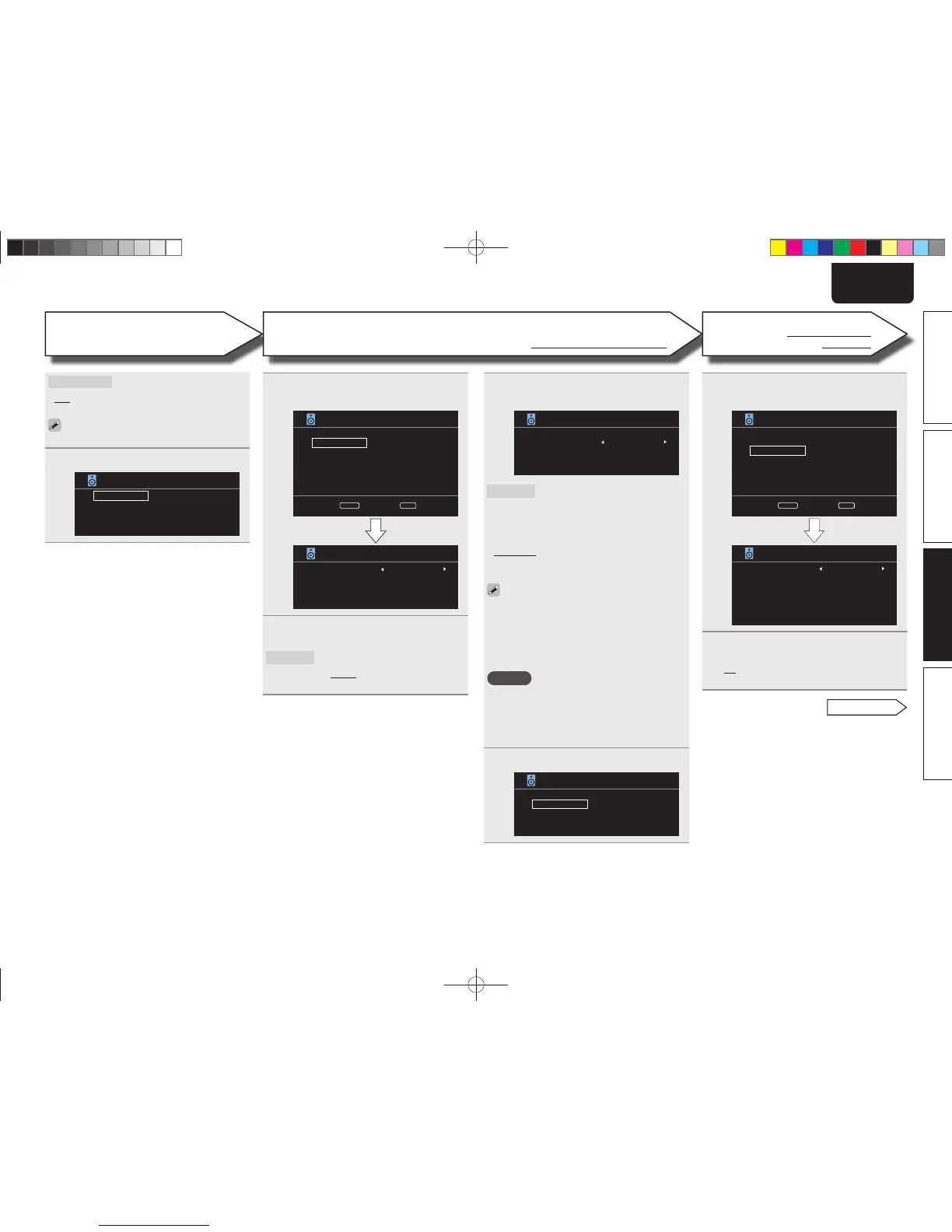

Denon AVR-1513 Quick Start Guide

6
ENGLISHFRANÇAISESPAÑOLPORTUGUÊSESPAÑOLNEDERLANDSSVENSKA
Connect Preparation PlaybackSetup
6
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
3
Use ui to select “SW Mode”, and
use o p to select a detailed setting.
LPF for LFE
SW Mode
100Hz
LFE+Main
1 Bass Setting
SW Mode
Select low range signals to be
reproduced by subwoofer.
• LFE : The low range signal of the channel set to
“Small” speaker size is added to the LFE signal
output from the subwoofer.
• LFE+Main : The low range signal of all channels
is added to the LFE signal output from the
subwoofer.
• “SW Mode” can be set when “Speaker Confi g.”
– “Subwoofer” (vpage5) is set to “Yes”.
• Play music or a movie source and select the
mode offering the strongest bass.
• Select “LFE+Main” if you want the bass signals
to always be produced from the subwoofer.
NOTE
If “Front” and “Center” for “Speaker Confi g.”
are set to “Large”, and “SW Mode” is set to
“LPF for LFE”, no sound may be output from
the subwoofers, depending on the input signal or
selected surround mode.
4
Press ENTER to enter the setting.
Speaker Config.
Bass Setting
Distance
Channel Level
Crossover Freq.
LPF for LFE
SW Mode
Speaker Setup
1
Use ui to select “Bass Setting”, and
then press ENTER.
Speaker Config.
Bass Setting
Distance
Channel Level
Crossover Freq.
LPF for LFE
SW Mode
Speaker Setup
Enter ReturnENTER
BACK
LPF for LFE
SW Mode
100Hz
LFE+Main
1 Bass Setting
2
Use o p to select the frequency.
LPF for LFE
Set LFE signal playback range.
• 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz /
200Hz / 250Hz
1
Use ui to select “Distance”, and
then press ENTER.
Speaker Config.
Bass Setting
Distance
Channel Level
Crossover Freq.
Step
Front L/R
Center
Subwoofer
Surround L/R
Speaker Setup
Enter ReturnENTER
BACK
1 Distance
Step
Front L
Front R
Center
Subwoofer
Surround L
Surround R
1ft
12.0ft
12.0ft
12.0ft
12.0ft
12.0ft
12.0ft
2
Use o p to change the step (minimum
variable distance).
1ft : For changing in 1-foot steps.
0.1ft : For changing in 0.1-foot steps.
Subwoofer
Set the presence of a subwoofer.
• Yes : Use a subwoofer.
• No : Select when a subwoofer is not connected.
When “Front” is set to “Small”, “Subwoofer”
is automatically set to “Yes”.
5
Press ENTER to enter the setting.
Speaker Config.
Bass Setting
Distance
Channel Level
Crossover Freq.
Front
Center
Surround
Subwoofer
Speaker Setup
Speaker Confi g. (Cont.)
Bass Setting
Default settings are underlined.
Distance
Default settings are
underlined.
vSee overleaf
1.AVR1513E3ENGIMGS00A0214校了後修正.indd61.AVR1513E3ENGIMGS00A0214校了後修正.indd6 2012/02/1420:03:322012/02/1420:03:32

Denon AVR-1513 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Composite video in	2
Digital audio optical in	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Preset stations quantity	56
Supported video modes	1080p, 720p
Analog signal format system	NTSC, PAL
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7800 g
