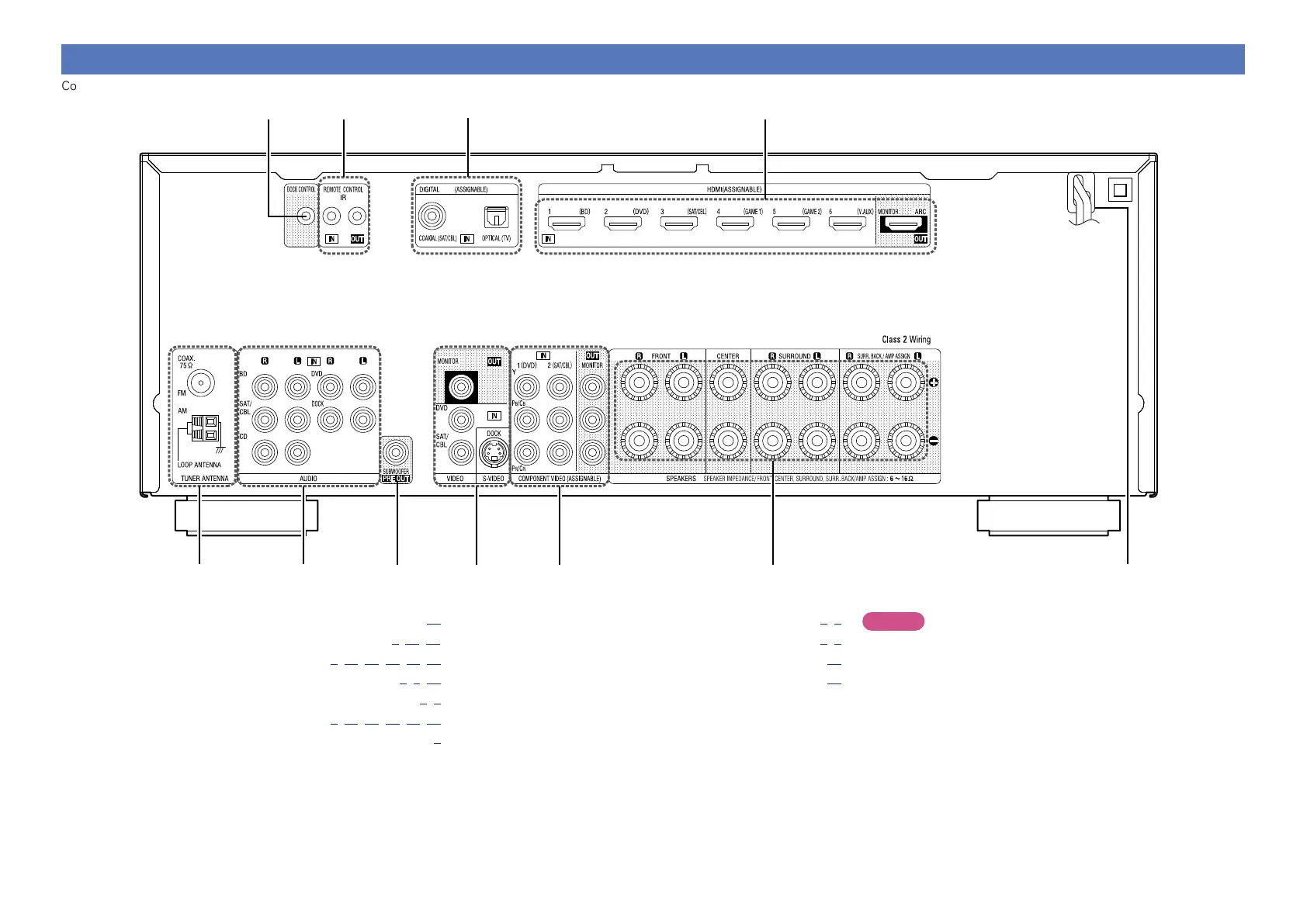

Panel trasero
Consulte la página que se indica entre paréntesis ( ).
q w e r t y u
iQ0 o
Q1
q Terminales de antena FM/AM ··············································· (11)
w Conectores de audio analógico ···································· (9, 10, 11)
e Conectores PRE OUT ·························· (C 6, 34, 35, 36, 37, 38)
r Conectores S-VIDEO/VIDEO ·········································· (8, 9, 10)
t Conectores COMPONENT VIDEO ········································ (8, 9)
y Terminales de altavoces ····················· (C 6, 34, 35, 36, 37, 38)
u Cable de alimentación ······················································ (C 5)
i Conectores HDMI ·························································· (C 3, 7)
o Conectores de audio digital ················································· (8, 9)
Q0 Conector REMOTE CONTROL ················································ (12)
Q1 Conector DOCK CONTROL ····················································· (10)
NOTA
No toque los pines internos de los conectores en el panel trasero.
La descarga electrostática puede ocasionar daños permanentes a la
unidad.
