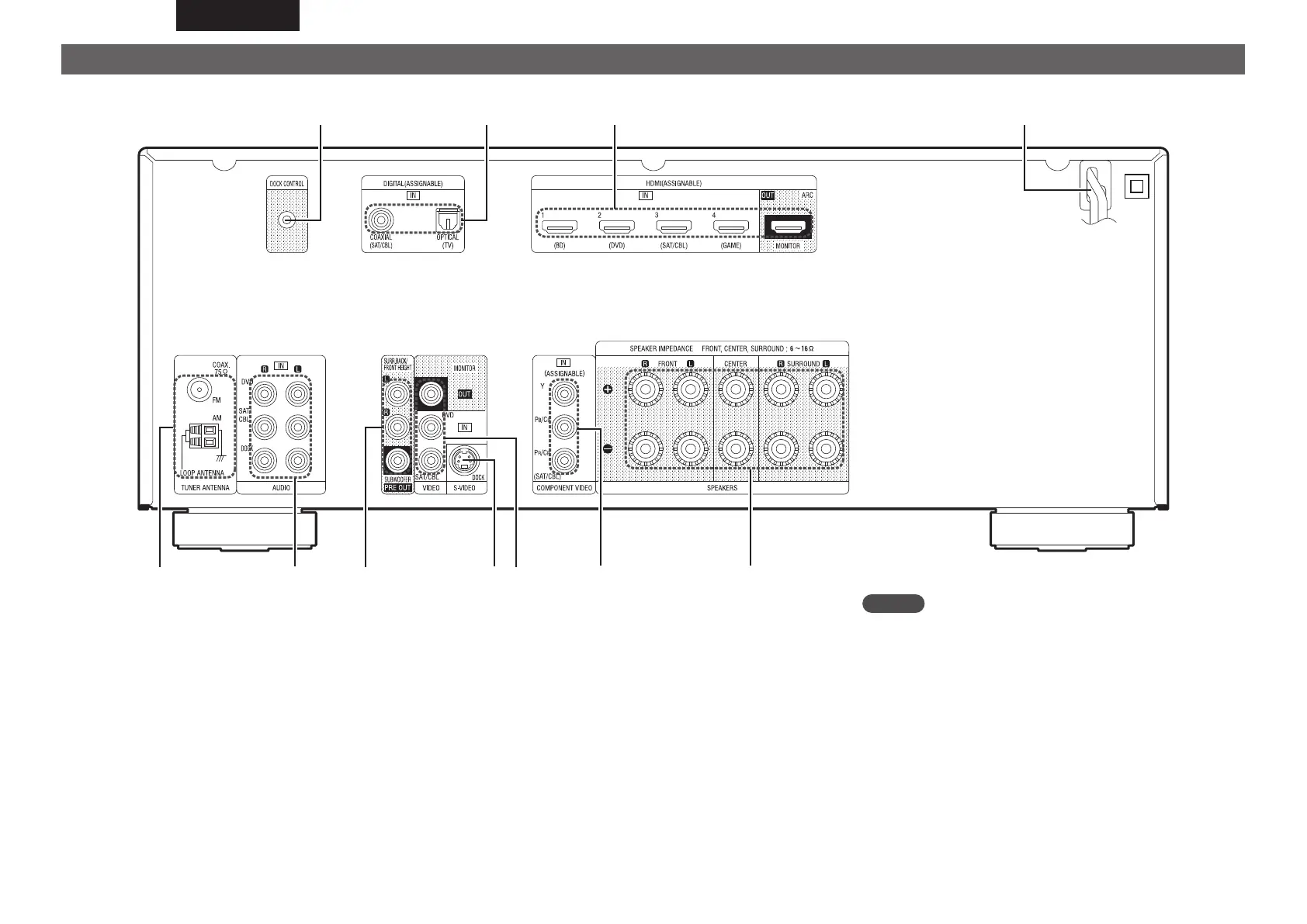

Panel trasero
Consulte la página que se indica entre paréntesis ( ).
q
w
e r t
y u
ioQ0Q1
q Terminales de antena FM/AM ··············································· (18)
w Conectores de audio analógico ·······································(16 – 18)
e Conector PRE OUT ························································ (5, 28, 29)
r Conector S-VIDEO ··································································· (18)
t Conectores VIDEO ····························································· (16, 17)
y Conectores COMPONENT VIDEO ·········································· (17)
u Terminales de altavoces ··············································· (5, 28, 29)
i Cable de alimentación ······························································ (5)
o Conectores HDMI ···································································· (15)
Q0 Conectores de audio digital ············································· (16, 17)
Q1 Conector DOCK CONTROL ····················································· (18)
NOTA
• No toque los pines internos de los conectores en el panel trasero.
La descarga electrostática puede ocasionar daños permanentes al
aparato.
• No coloque sus dedos u objetos extraños en la abertura del ventilador.
De lo contrario podría ocasionar lesiones o fallos en la unidad.
