• Select the terminal to use and connect the device (vpage 8 “Video
Conversion Function”).
• With HDMI connections, the video and audio signals can be
transferred with a single cable.
• To output the audio signals to the monitor with HDMI connections,
set menu “Manual Setup” – “HDMI Setup” – “HDMI Audio Out” to
“TV” (vpage 26).
• When you want to listen to TV audio by AVR-889, connect optical
digital or analog.
If the TV you are using has both connection jacks, use the optical
digital connection.

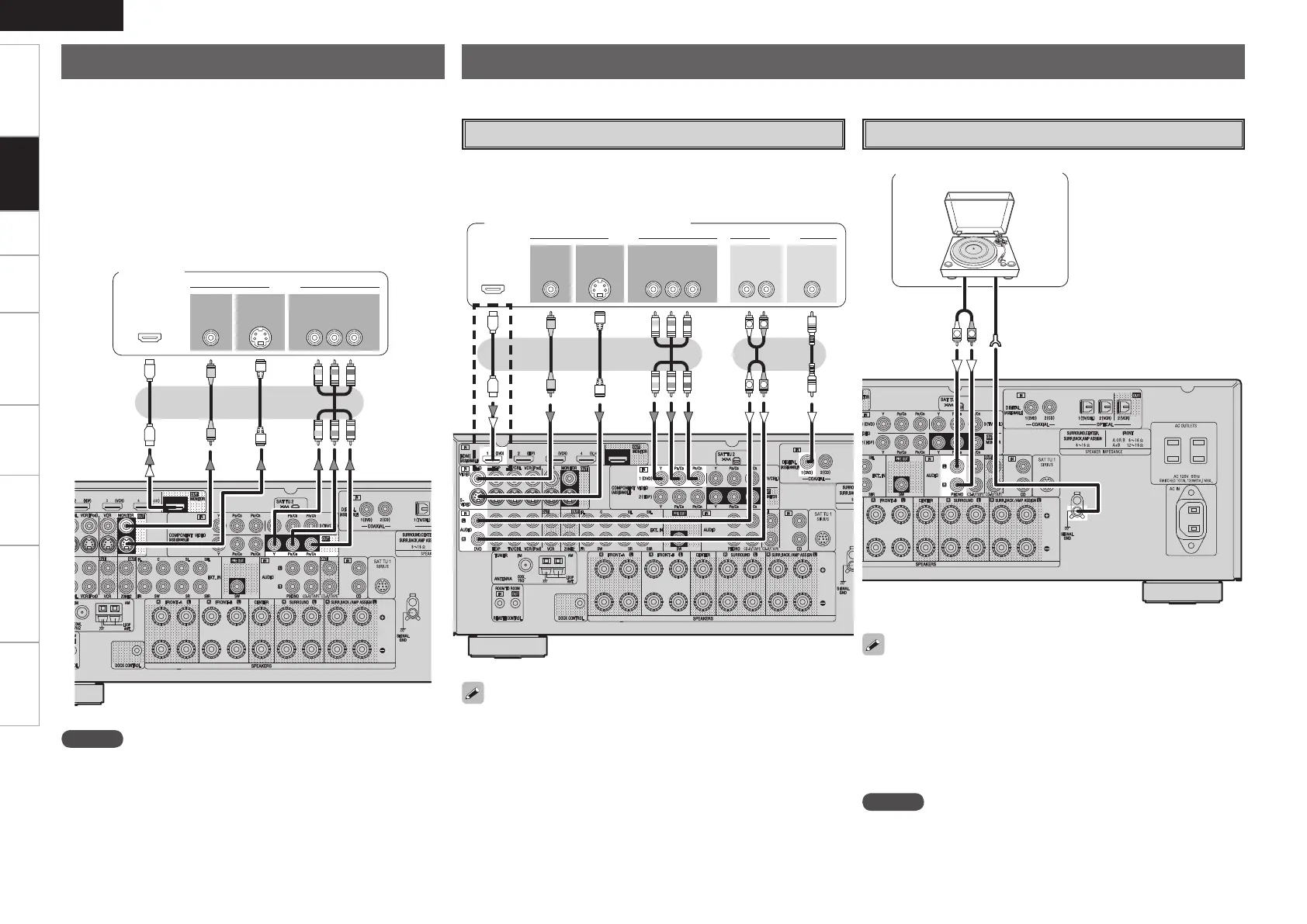

Connecting the Monitor
R
L
R
L
47*%&0
065
"6%*07*%&0
$0.10/&/57*%&0
: 1
#
1
3
7*%&0
065 065
"6%*0
$0"9*"-
065
3-
065065
)%.*
Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect correctly.
Connecting the Playback Components
Blu-ray Disc player / DVD player
Select the terminal to use and connect the device.
Blu-ray Disc player / DVD player
NOTE
• The component video connectors may be indicated differently on
your monitor. For details, see the monitor’s operating instructions.
• The audio signals output from the HDMI connectors are only the
HDMI input signals.
When using an optical cable for the digital audio connection, make the
settings at menu “Input Setup” – “Assign” – “Digital In” (vpage
34).
b When connected to a Blu-ray Disc player, and playing Dolby
TrueHD, DTS-HD, Dolby Digital Plus, connect the HDMI.
b
47*%&0
*/
7*%&0
$0.10/&/57*%&0
: 1# 13
7*%&0
*/
)%.*
*/ */
Monitor
Record Player
• When connecting a record player with an MC cartridge, use a
commercially available MC head amplifier or a step-up transformer.
• Induction humming (a booming sound) may be produced from the
speakers if the volume is raised with no record player connected.
• With some record players, noise may be generated when the ground
wire is connected. If so, disconnect the ground wire.
• When using a record player with a built-in PHONO equalizer, set the
PHONO equalizer to “OFF”.
Turntable (MM cartridge)
NOTE
The AVR-889’s SIGNAL GND terminal is meant to reduce noise when
a record player is connected. This is not a safety ground terminal.
Connections
To Next Page
