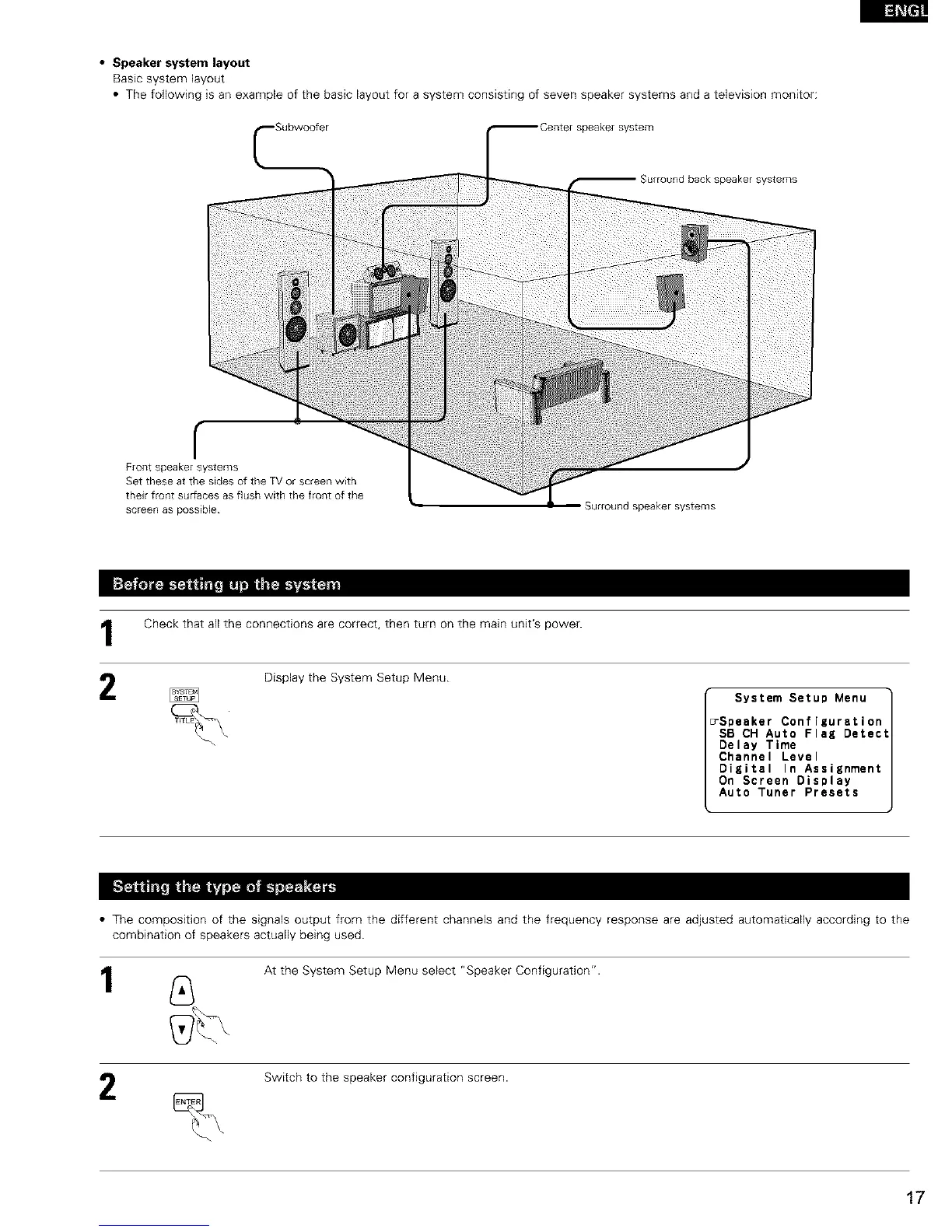

• Speaker system layout
Basic system layout
• The following is an example of the basic layout for a system consisting of seven speaker systems and a television monitor:
r
Front speaker systems
Set these at the sides of the TVor screen with
their front sur[aces as flush with the front of the
screen as possible
_Centerspeakersystem
Surround back speaker systems
Check that all the connections are correct, then turn on the main unit's power.
Display the System Setup Menu.
Surround speaker systems
System Setup Menu
_Speaker Configuration
SB CH Auto Flag Detect
Delay Time
Channel Level
Digital In Assignment
On Screen Display
Auto Tuner Presets
k
• The composition of the signals output from the different channels and the frequency response are adjusted automatically according to the
combination of speakers actually being used.
1
At the System Setup Menu select "Speaker Configuration'.
Switch to the speaker configuration screen.
To Next Page
