Denon AVR-X2500H Quick Start Guide

3
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AVR-X2500H.

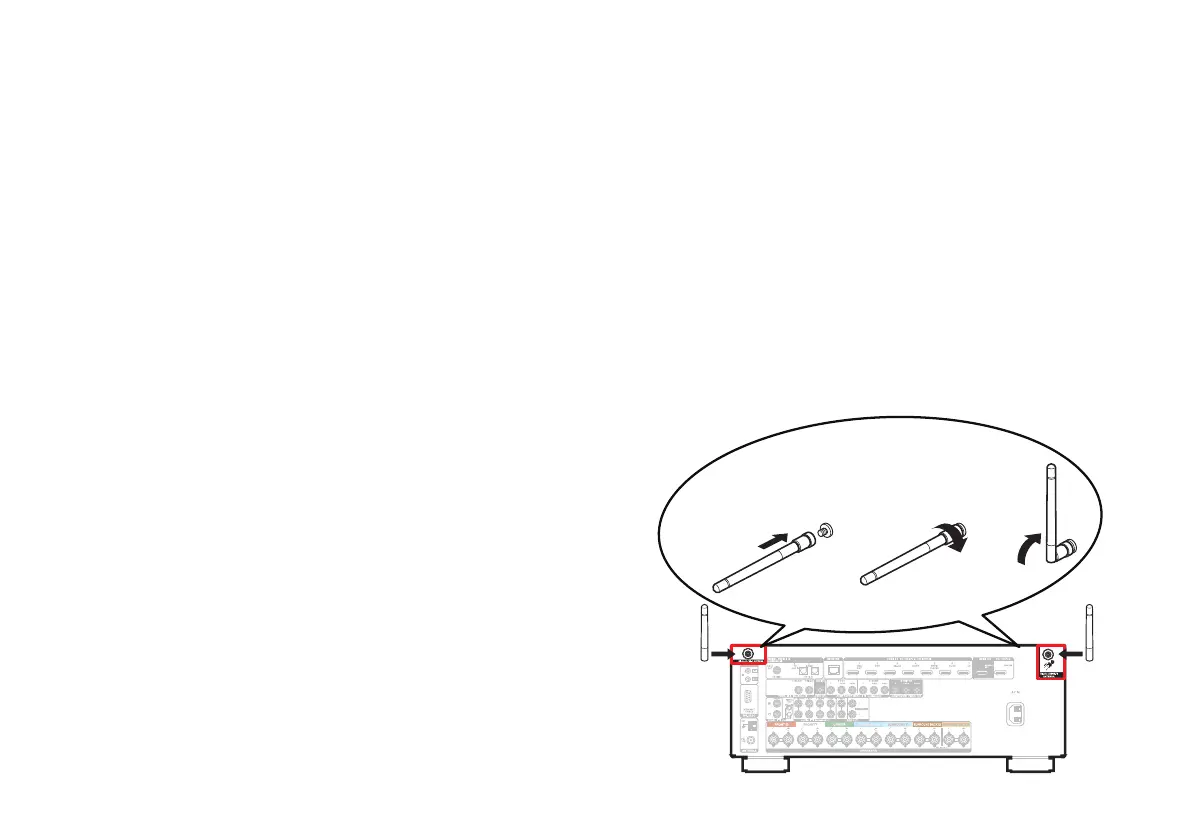

n Connecting the external antennas for
Bluetooth / Wireless connectivity
For each of the two antennas:
q Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
w Turn the antenna clockwise until it is fully connected. Do
not over tighten.
e Rotate the antenna upwards for the best possible
reception.
q w e
1. AVR-X2500HE3_QSG_ENG_00A_180220.indd 3 2018/03/02 15:08:44
PrintingColor:Black

Denon AVR-X2500H Specifications

General

HDMI in	8
Composite video in	2
Ethernet LAN (RJ-45) ports	1
AirPlay	No
Display	-
Sample rate	196 kHz
HDCP version	2.2
Product color	Black
Audio decoders	DSD, DTS-HD, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
RS-232 interface	Yes
Connectivity technology	Wired & Wireless
Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	8 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (20-20KHz@8 Ohm)	95 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	500 W
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, TuneIn, iHeartRadio
Supported graphics resolutions	3840 x 2160

Weight and Dimensions

Depth	340.3 mm
Width	434.3 mm
Height	167.6 mm
Weight	9389 g
