RCD-M37 / RCD-M37DAB / D-E500 / D-M37
(2)

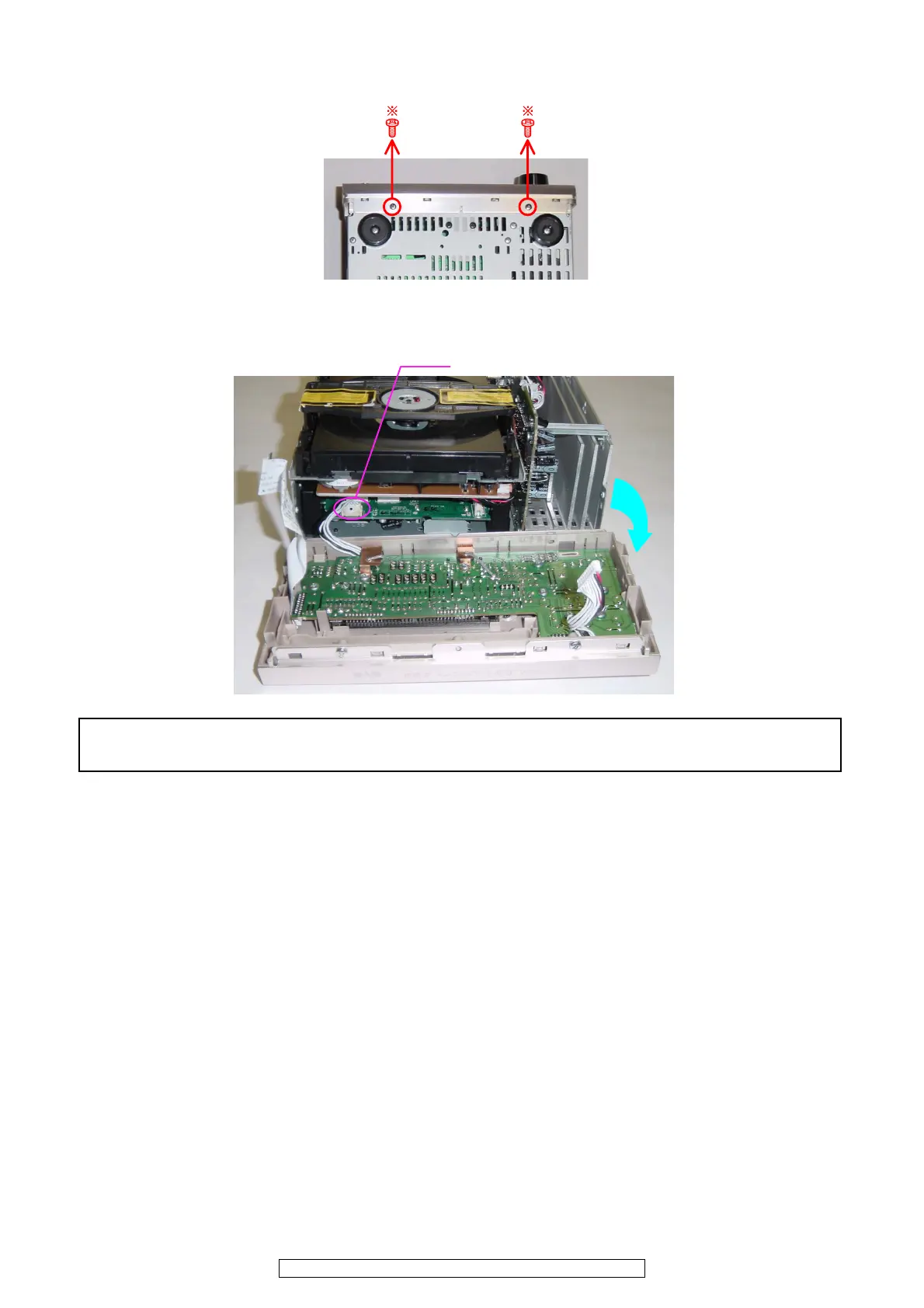

Remove the screws.
（ねじをはずす。
）
(3)
Disconnect the connector wire and remove
the Front panel assy.
（コネクタワイヤーをはずし、フロントパネルアッ
シーをはずす。
）
Please refer to
"EXPLODED VIEW "
for the disassembly method of each P.W.B included in FRONT PANE
L SUB ASSY.
FRONTPANELSUBASSY
の各基板のはずしかたは
"EXPLODEDVIEW"
を参照してください。
Bottom
view
CN53
A
8
10
