11
ENGLISH

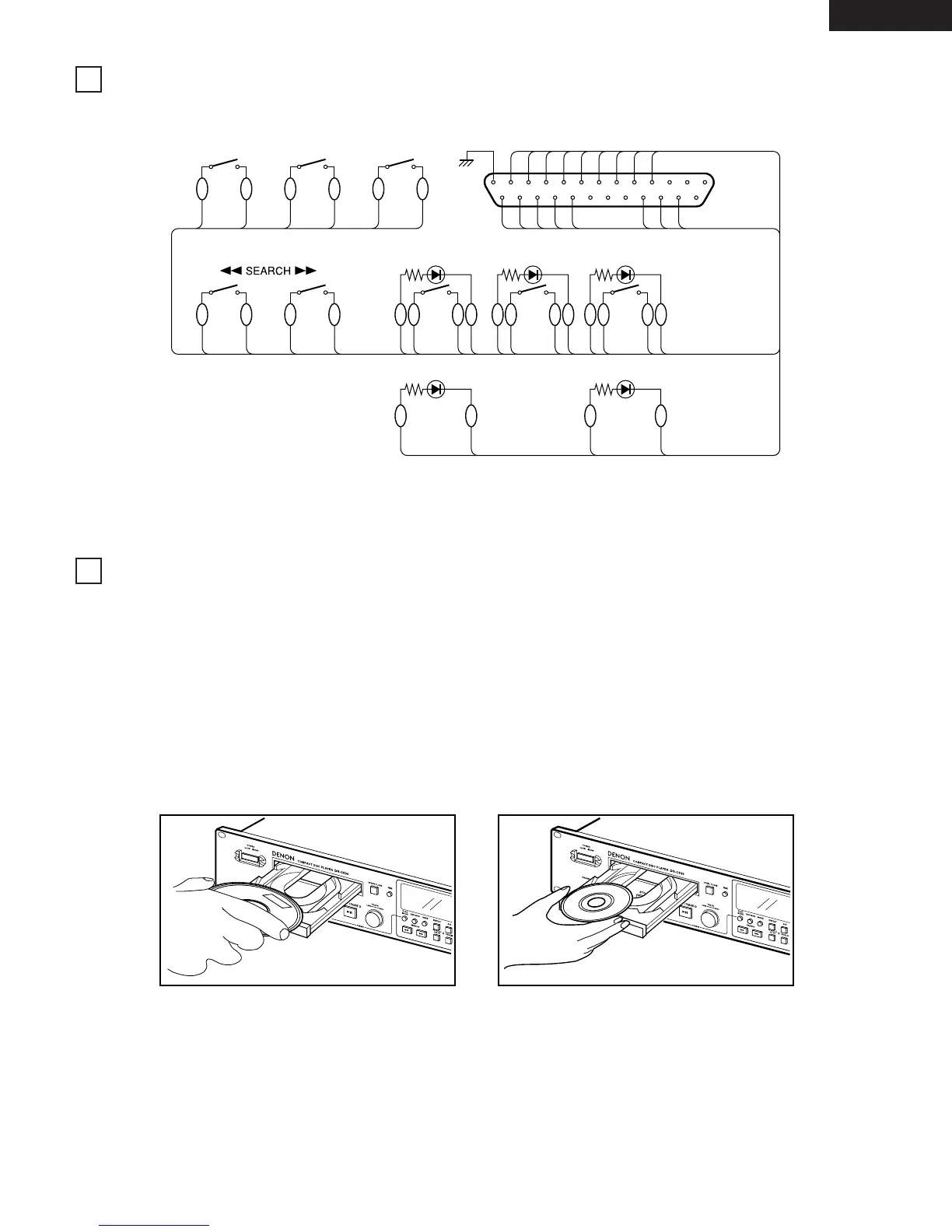

REMOTE CONTROL CONNECTIONS
2
OPENING AND CLOSING THE DISC HOLDER AND LOADING DISCS
3
To control the DN-C630 remotely, refer to the example of remote control connections given below.
The rating of REMOTE connector pin 22 (TALLY POWER SUPPLY) is ) 5 V, 80 mA maximum.
Avoid currents in excess of the rating.
(1) Opening and closing the disc holder
• This operation only works when the power is on.
• Press the OPEN/CLOSE button to open or close the disc holder.
• The disc holders cannot be opened during playback to prevent playback from being interrupted if the OPEN/CLOSE button is
pressed accidentally. Stop playback, then press the OPEN/CLOSE button.
(2) Loading discs
• Hold the disc by the edges and place it in the disc tray. Do not touch the signal surface (the glossy side).
• When using 12 cm discs, place the disc in the outer tray guides, and when using 8 cm discs, place them securely in the inner
guides.
12 cm disc 8 cm disc
CAUTION:
• Do not place any foreign objects in the disc tray, and do not place more than one disc in the disc tray at a time. Doing so may result in
malfunction.
• Do not push the disc tray in manually when the power is off, as this may result in malfunction and damage the player.
To Next Page
