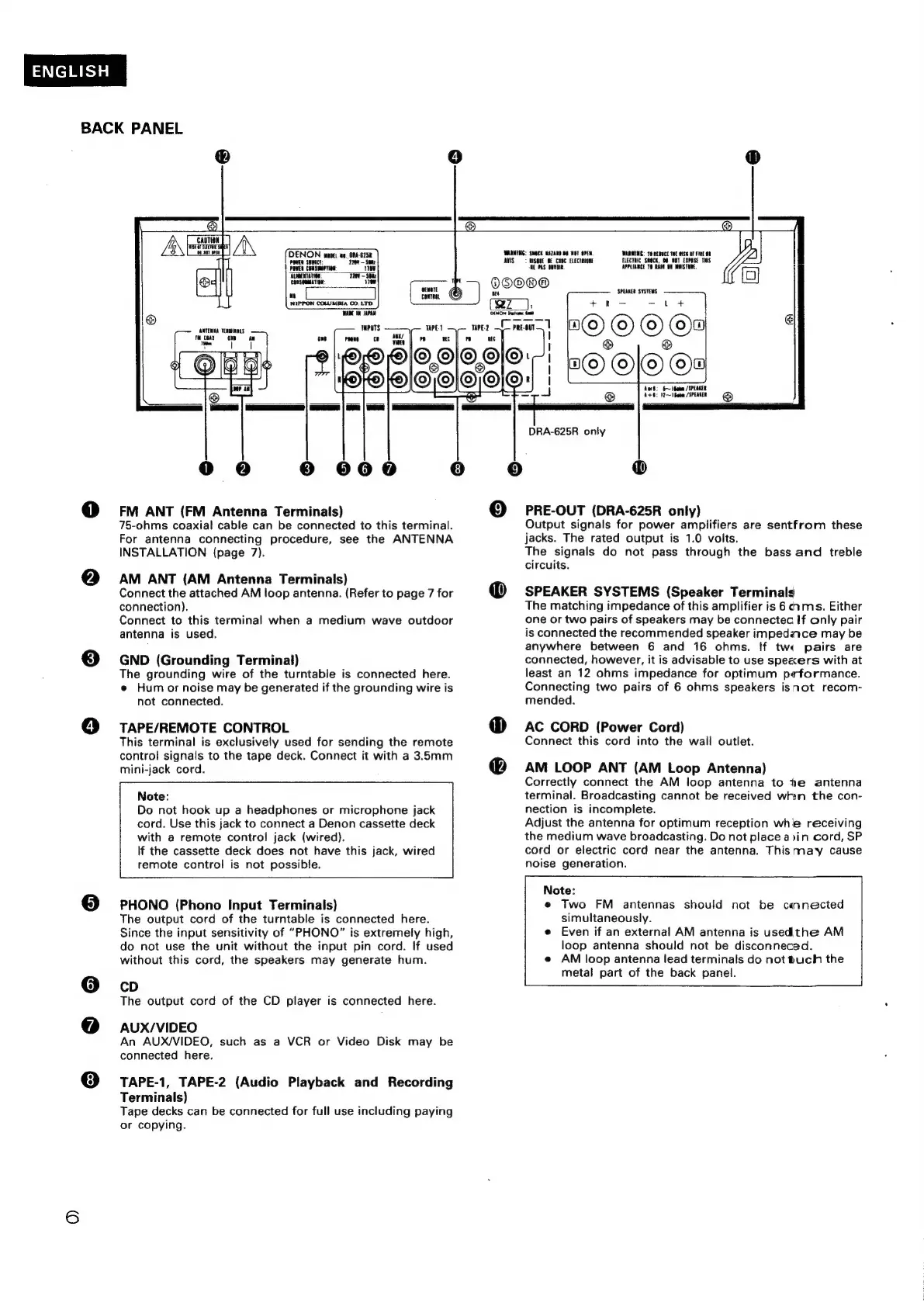

ENGLISH
BACK
PANEL
ALBERTA
THA
Comsoumma
TiO
WADE
1
APA
FHPUTS
AnTENNA
TERMINALS
fucer
Kea
cn
>)
FM
ANT
(FM
Antenna
Terminals)
75-ohms
coaxial
cable
can
be
connected
to
this
terminal.
For
antenna
connecting
procedure,
see
the
ANTENNA
INSTALLATION
(page
7).
AM
ANT
(AM
Antenna
Terminals)
Connect
the
attached
AM
loop
antenna.
(Refer
to
page
7
for
connection).
Connect
to
this
terminal
when
a
medium
wave
outdoor
antenna
is
used.
GND
(Grounding
Terminal)
The
grounding
wire
of
the
turntable
is
connected
here.
e
Hum
or
noise
may
be
generated
if
the
grounding
wire
is
not
connected.
TAPE/REMOTE
CONTROL
This
terminal
is
exclusively
used
for
sending
the
remote
control
signals
to
the
tape
deck.
Connect
it
with
a
3.5mm
mini-jack
cord.
Note:
Do
not
hook
up
a
headphones
or
microphone
jack
cord.
Use
this
jack
to
connect
a
Denon
cassette
deck
with
a
remote
control
jack
(wired).
If
the
cassette
deck
does
not
have
this
jack,
wired
remote
control
is
not
possible.
PHONO
(Phono
Input
Terminals)
The
output
cord
of
the
turntable
is
connected
here.
Since
the
input
sensitivity
of
“PHONO”
is
extremely
high,
do
not
use
the
unit
without
the
input
pin
cord.
If
used
without
this
cord,
the
speakers
may
generate
hum.
CD
The
output
cord
of
the
CD
player
is
connected
here.
AUX/VIDEO
An
AUX/VIDEO,
such
as
a
VCR
or
Video
Disk
may
be
connected
here.
TAPE-1,
TAPE-2
(Audio
Playback
and
Recording
Terminals)
Tape
decks
can
be
connected
for
full
use
including
paying
or
copying.
‘WARNING:
SHOCK
MAZARD-O
NET
#PEW.
AYIS
>
MISHUE
BE
CHOC
ELECTRIQUE
ELECTRIC
SHOCK,
O8
MOT
EXPOSE
THIS
WE
PAS
BUTRIE,
APPLIANCE
TO
RAIN
OR
MOISTURE.
(a)
®
SPEARER
SYSTEMS
;
-
‘WARMING:
Te
REDUCE
TE
miSK
OF
FRE
OR
heh:
&~lbobm
/SPEARER
A+O:
12~
1
Gobm
/SPEARER
e
@
DRA-625R
only
PRE-OUT
(DRA-625R
only)
Output
signals
for
power
amplifiers
are
sentfrom
these
jacks.
The
rated
output
is
1.0
volts.
The
signals
do
not
pass
through
the
bass
and
treble
circuits.
SPEAKER
SYSTEMS
(Speaker
Terminals
The
matching
impedance
of
this
amplifier
is
6
cams.
Either
one
or
two
pairs
of
speakers
may
be
connectec
If
only
pair
is
connected
the
recommended
speaker
impedince
may
be
anywhere
between
6
and
16
ohms.
If
twe
pairs
are
connected,
however,
it
is
advisable
to
use
spexers
with
at
least
an
12
ohms
impedance
for
optimum
performance.
Connecting
two
pairs
of
6
ohms
speakers
isnot
recom-
mended.
AC
CORD
(Power
Cord)
Connect
this
cord
into
the
wall
outlet.
AM
LOOP
ANT
(AM
Loop
Antenna)
Correctly
connect
the
AM
loop
antenna
to
te
antenna
terminal.
Broadcasting
cannot
be
received
wren
the
con-
nection
is
incomplete.
Adjust
the
antenna
for
optimum
reception
whle
receiving
the
medium
wave
broadcasting.
Do
not
place
a»in
cord,
SP
cord
or
electric
cord
near
the
antenna.
This
may
cause
noise
generation.
Note:
e
Two
FM
antennas
should
not
be
cannected
simultaneously.
e
Even
if
an
external
AM
antenna
is
usedthe
AM
loop
antenna
should
not
be
disconneced.
e
AM
loop
antenna
lead
terminals
do
not
fuch
the
metal
part
of
the
back
panel.
