Denon DVD-757 User Manual

11

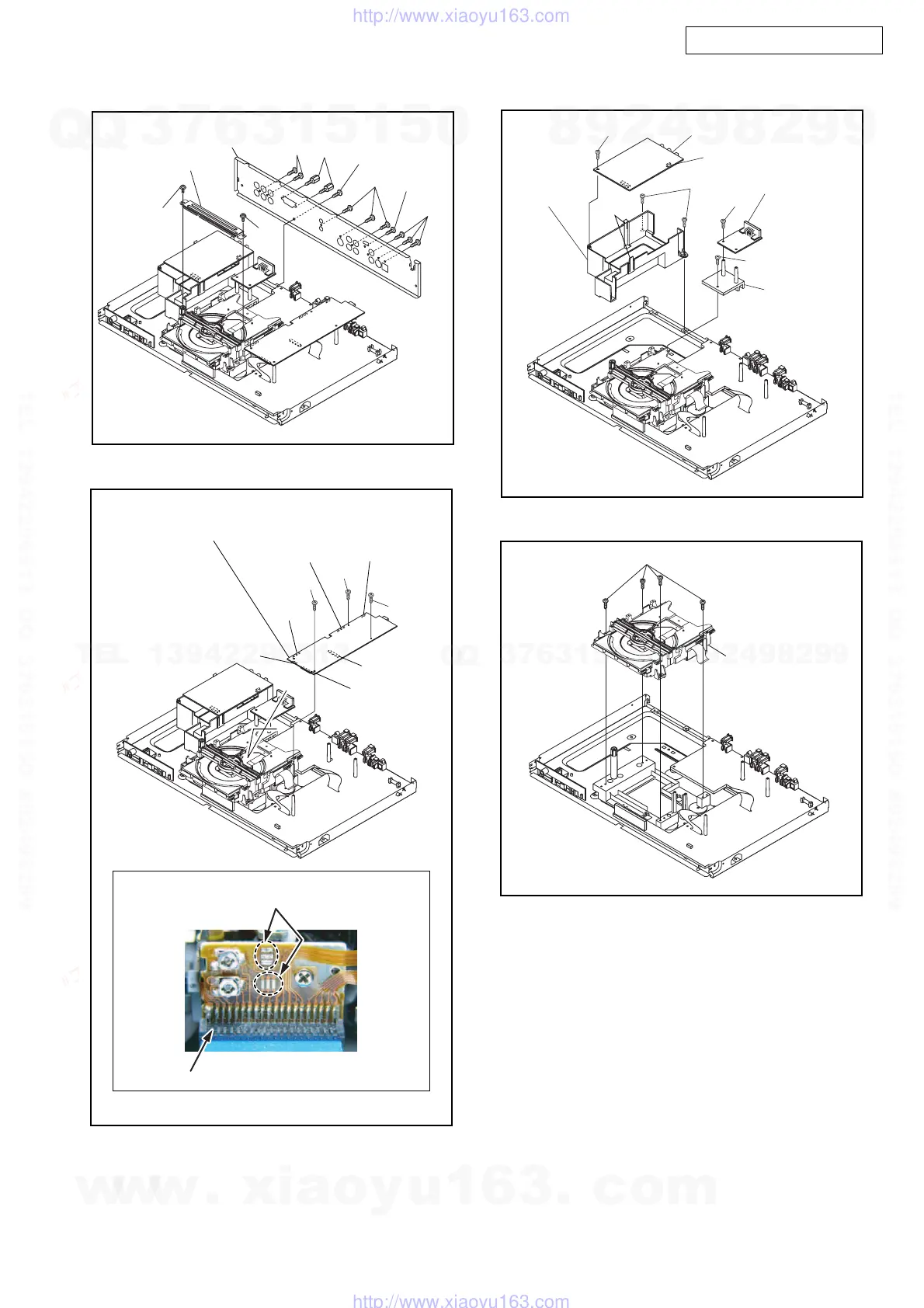

DVD-1930CI / DVD-757
[7] Rear Panel
(S-6)
(S-4)
(S-4)
(S-5)
(S-4)
Fig. D4
(S-7)
[6] Reinforce
Plate
(S-3)
(S-3)
(S-8)
(S-8)
[8] DVD Main CBA Unit
CN401
CN301
A
Fig. D5
CNF02
CN201
CN601
(S-8)
CNS01
Short the three short lands by soldering.
(Either of two places.)
View for A
FPC Cable
(S-11)
(S-12)
[12] Jack
PCB Holder
[11] 5.1ch Amp CBA
(L-5)
Fig. D6
[9] Interface
CBA
[10] D Sub
Holder
(S-9)
(S-10)
CN7101
Fig. D7
[13] DVD
Mechanism
(S-13)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon DVD-757 Specifications

Audio Specifications

frequency response (DVD)	4 Hz - 22 kHz (48kHz sampling), 4 Hz - 44 kHz (96kHz sampling), 4 Hz - 88 kHz (192kHz sampling)
frequency response (CD)	4 Hz - 20 kHz
frequency response (Super Audio CD)	4 Hz - 100 kHz
signal-to-noise ratio	115 dB
dynamic range (DVD)	100 dB
dynamic range (CD)	98 dB
total harmonic distortion	0.004% at 1 kHz CD

Video Specifications

signal system	NTSC
composite video output	1.0 Vp-p (with 75 ohms load)
S-Video output (Y)	1.0 Vp-p (with 75 ohms load)
S-Video output (C)	0.286 Vp-p
component video output (Y)	1.0 Vp-p (with 75 ohms load)
component video output (Pb/Cb)	0.648 Vp-p (with 75 ohms load)
component video output (Pr/Cr)	0.648 Vp-p (with 75 ohms load)

Power

power supply	AC 120 V, 60 Hz
power consumption	15 W
standby power consumption	1 W

Weight and Dimensions

dimensions	435 (W) x 75 (H) x 310 (D) mm, 17-3/32” (W) x 2-61/64” (H) x 12-13/64” (D)
weight	2.6 kg, 5.72 lbs
