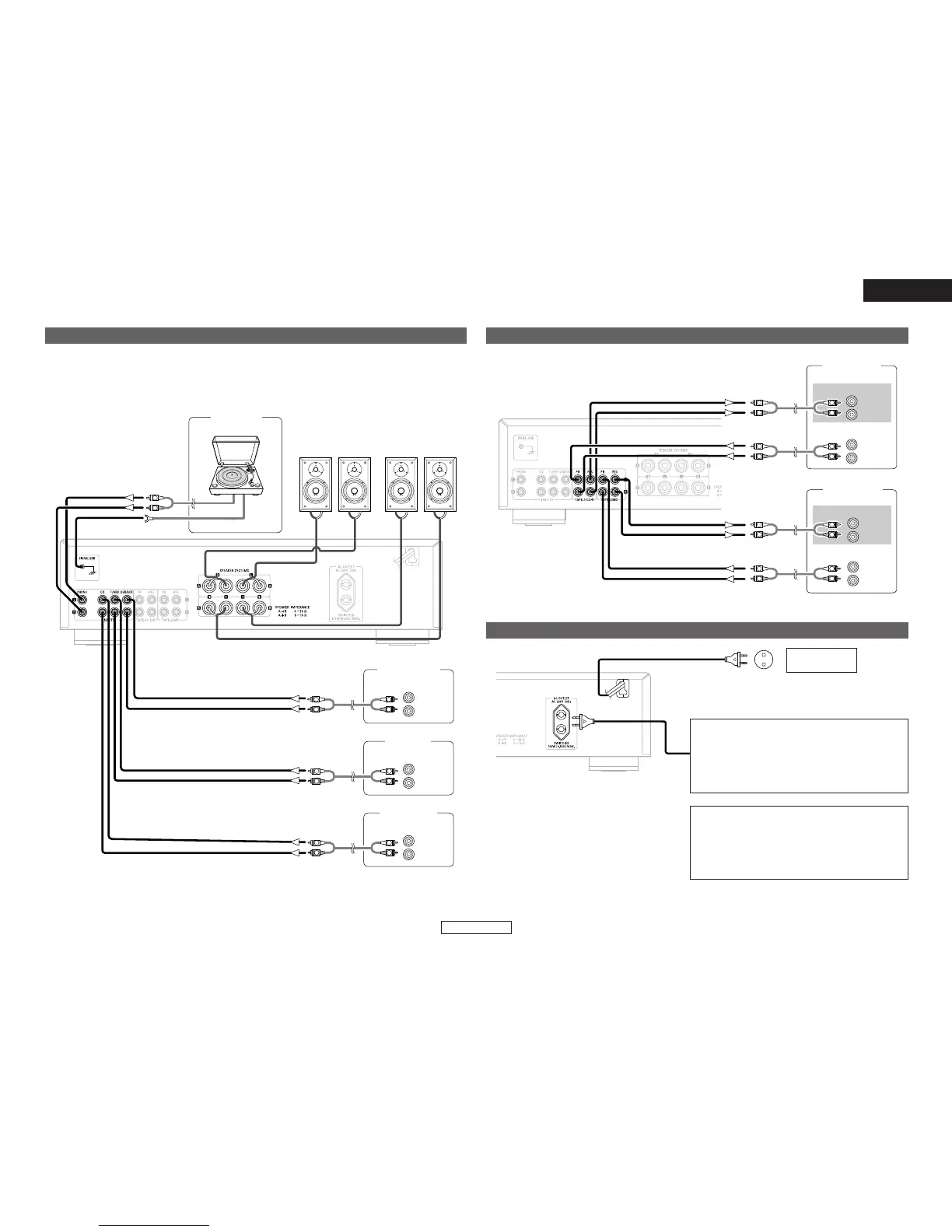

Connections Connections
R
L
AUDIO IN
R
L
AUDIO OUT
R
L
AUDIO IN
R
L
AUDIO OUT
CD recorder /
Tape deck 1
MD recorder /
Tape deck 2
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
Connecting the power supply cord
AC 230 V, 50 Hz
AC outlet
(wall)
Connecting to the AC OUTLET
•SWITCHED (Total capacity: 100 W (0.43 A):
The power supply to the outlet turns ON and OFF
with the main unit’s POWER switch. Make sure
the total power consumption of the connected
devices does not exceed 100W (0.43 A).
NOTE:
• Only use the AC OUTLET for audio equipment.
Never use it for hair driers, TVs or other electrical
appliances.
• Insert the plugs securely. Incomplete connections
will result in the generation of noise.
Power supply cord
Connecting Recorders
>< ><><
R
L
AUDIO OUT
CD player
R
L
AUDIO OUT
Tuner
R
L
AUDIO OUT
DVD player
AUDIO OUT
GND
Turntable
(MM cartridge)
><
R
L
R
L
R
L
R
L
R
L
R
L
R
L
Speakers
(A)
RLRL
Connecting Players and Speakers
Speakers
(B)
AUDIO OUT
Ground wire
• Only Turntables fitted with a MM (Moving Magnet) cartridge can be used with this unit. If you have an
MC (Moving Coil) cartridge you will need to use a commercially available head amplifier or step-up
transformer.
• If humming or other noise is generated when the ground wire is connected, disconnect it.
