5
1. To drive the nail less deeply, push the adjust button (M) in. Slide the
contact trip (E) down. Push the set button (N) to secure contact trip.
2. To sink a nail farther, push the adjust button (M) in. Slide the contact
trip (E) upward to the extent desired. Push the set button (N) to secure
contact trip.
MAINTENANCE
Daily Maintenance Chart
ACTION Lubricate tool with 5-10 drops of DEWALT Pneumatic Tool Oil
WHY Prevents failure of o-rings
HOW Insert drops into air fitting on end cap of tool
ACTION Drain compressor tanks and hoses daily
WHY Prevents accumulation of moisture in compressor and nailer
HOW Open petcocks or other drain valves on compressor tanks.
Allow any accumulated water to drain from hoses
ACTION Clean magazine, pusher, and contact trip mechanism
WHY Permits smooth operation, reduces wear, and prevents jams
HOW Blow clean with compressed air. The use of oils or solvents is
not recommended as they tend to attract debris
ACTION Before each use, check to ensure all screws, nuts and
fasteners are tight and undamaged
WHY Prevents jams, leaks and premature failure of tool parts
HOW Tighten loose screws or other fasteners using the appropriate
Hex wrench or screwdriver
Cleaning
WARNING: Blow dirt and dust out of all air vents with dry air at least
once a week. Wear proper ANSI Z87.1 (CAN/CSA Z94.3) eye protection
and proper NIOSH/OSHA/MSHA respiratory protection when performing
this.
WARNING: When cleaning, use only a damp cloth on non-metallic parts.
Many household cleaners contain chemicals which could seriously damage
non-metallic parts and o-rings. Also, do not use gasoline, turpentine,
lacquer or paint thinner, dry cleaning fluids or similar products which may
seriously damage non-metallic parts and o-rings. Never let any liquid get
inside the tool; never immerse any part of the tool into a liquid.
Repairs
To assure product SAFETY and RELIABILITY, repairs, maintenance and
adjustment (including brush inspection and replacement) should be
performed by a DEWALT factory service center, a DEWALT authorized
service center or other qualified service personnel. Always use identical
replacement parts. Refer to the Troubleshooting Guide at the end of this
section.
Accessories
WARNING: Since accessories, other than those offered by DEWALT,
have not been tested with this product, use of such accessories with this
tool could be hazardous. To reduce the risk of injury, only DEWALT,
recommended accessories should be used with this product.
Recommended accessories for use with your tool are available at extra
cost from your local service center. If you need any assistance in locating
any accessory, please contact DEWALT Industrial Tool Co., 20 Fletcher
Road, Mooroolbark, VIC 3138 Australia or call 1800 654 155 or (NZ)
0800 339258.
Guarantee
Applicable to hand held Power Tools, Lasers and Nailers.
Three Year Limited Warranty
DEWALT will repair, without charge, any defects due to faulty materials or
workmanship for three years from the date of purchase. Please return the
complete unit, transportation prepaid, to any DEWALT Service Centre, or
any authorised service station.
For warranty repair information, call (AUS) 1800 654 155 or (NZ) 0800
339258.
This warranty does not apply to
• Accessories
• Damage caused where repairs have been made or attempted by
others.
• Damage due to misuse, neglect, wear and tear, alteration or
modification.
This warranty gives you specific legal rights and you may have other rights
under the provisions of the Consumer Guarantee Act 1993 (New Zealand
only), Trade Practices Act 1974 and State Legislation (Australia only).
In addition to the warranty, DEWALT tools are covered by our:
FREE ONE YEAR SERVICE CONTRACT
DEWALT will also maintain the tool for free at any time during the first year
of purchase. This includes labour, parts and lubrication required to restore
the product to sound mechanical and/or electrical condition. Normal wear
parts are not covered in this service. Carbon brushes worn more then 50%
will be replaced.
NOTE: Three Year Warranty is not applicable to items deemed as
consumables. Radial arm saws are covered by a one (1) year warranty
only. D
EWALT Reserves the right to review its warranty policy prior to
launch of any new business development products.
30 DAY NO SATISFACTION GUARANTEE
If you are dissatisfied with any DEWALT power tool, laser or nailer, for any
reason, simply return it to the point of purchase with your sales receipt
within 30 days for a replacement unit or a full refund.
FREE WARNING LABEL REPLACEMENT: If your warning labels become
illegible or are missing, call (AUS) 1800 654 155 or (NZ) 0800 339258 for
a free replacement.

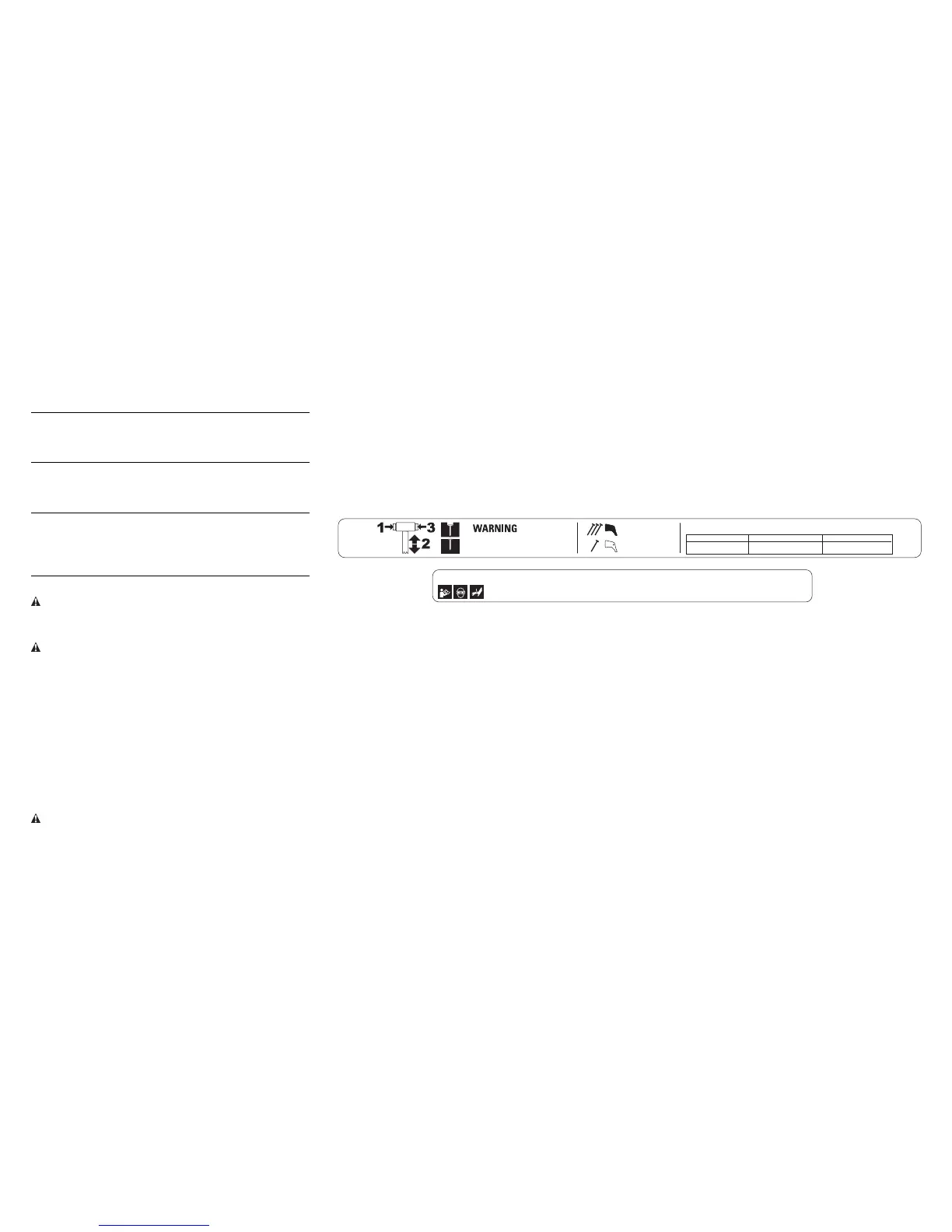

WARNING
READ AND UNDERSTAND TOOL LABELS AND MANUAL. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY. OPERATORS AND OTHERS IN WORK AREA MUST
WEAR ANSI Z87.1 SAFETY GLASSES WITH SIDE SHIELDS. KEEP FINGERS AWAY FROM TRIGGER WHEN NOT DRIVING FASTENERS TO AVOID ACCIDENTAL FIRING. CHOICE OF TRIGGERING
METHOD IS IMPORTANT. CHECK MANUAL FOR TRIGGERING OPTIONS. NEVER DISABLE TRIGGER, CONTACT TRIP LOCK-OFF DEVICE. USE LOCK-OFF WHEN TOOL IS NOT IN USE. ENSURE TRIGGER
AND CONTACT TRIP OPERATE PROPERLY BEFORE USE. NEVER POINT TOOL AT YOURSELF OR OTHERS IN WORK AREA. NEVER USE OXYGEN OR OTHER BOTTLED GASSES. EXPLOSION MAY
OCCUR. DISCONNECT AIR BEFORE SERVICING TOOL, CLEARING JAMS, AND ADJUSTING DEPTH.
DEWALT Industrial Tool Co., Baltimore, MD 21286 U.S.A. For Service Information, Call 1-800-654155 www.DEWALT.com.au
TO
ADJUST
DEPTH
SEQUENTIAL
ACTION (GRAY)
BUMP ACTION
TRIGGER (BLACK)
1. PUSH IN BUTTON
2.
SLIDE NOSEPIECE TO ADJUST
3. PUSH IN BUTTON
DISCONNECT AIR &
LOCK OFF TRIGGER
FASTENER ANGLE DIAMETER LENGTH
DXXXXX -XE CLIPPED HEAD FRAMING NAILER
