15
English

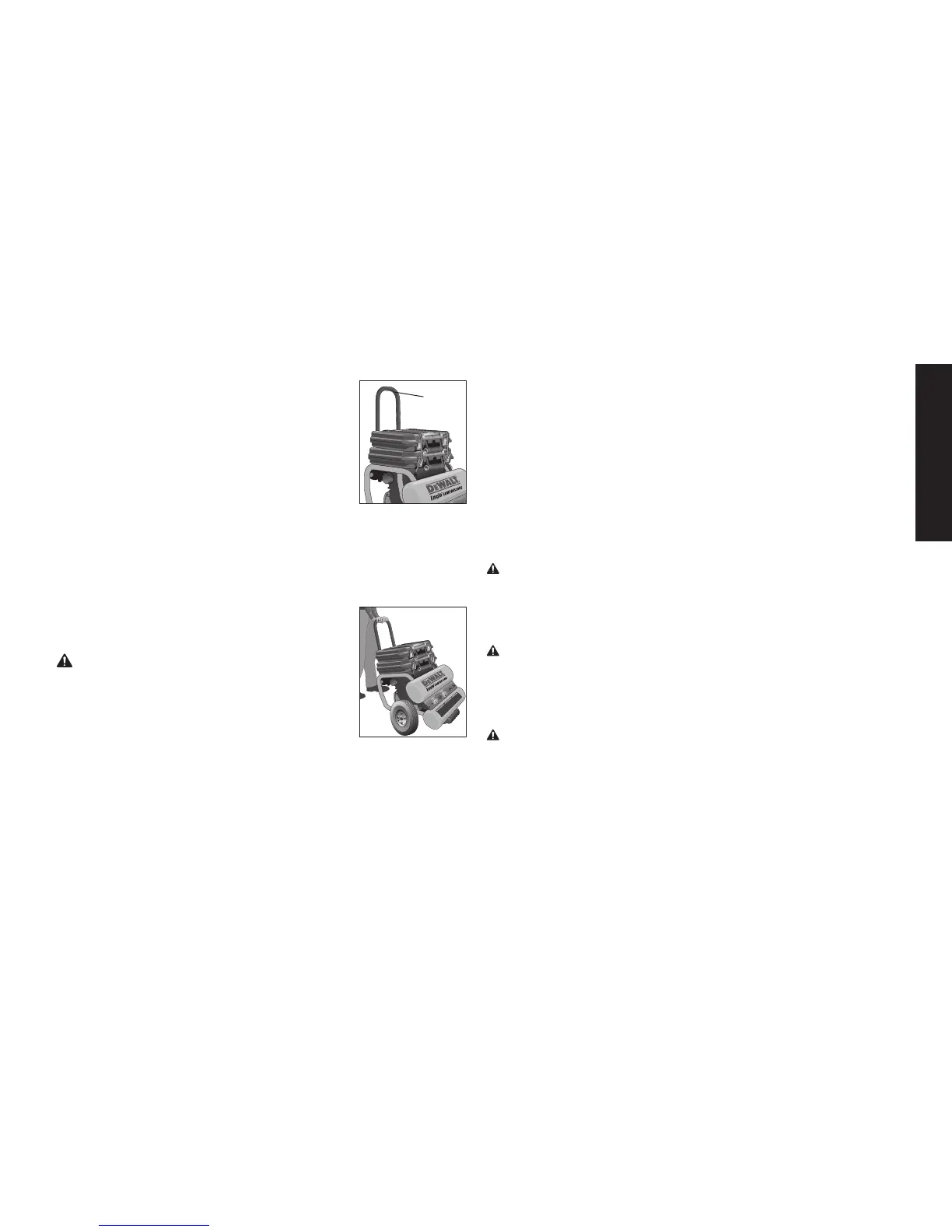

DOLLY FEATURE
1. Grasp handle (O) of compressor and pull up
until it stops. Turn knobs to lock handle in
place. IMPORTANT: Always pull handle up
and lock in place before using as a dolly.
2. Place cargo onto top panel of compressor.
3. Secure cargo to top panel with retention
straps. Hook cargo retention straps into
positioning holes in top panel. NOTE:
Retention straps to secure cargo may be purchase from a
local hardware store or home center in a variety of sizes.
CAUTION: Risk of unsafe operation. Do not transport
unsecured cargo.
CAUTION: Risk of unsafe operation. Load limit is 100 lbs.
do not exceed.
4. With cargo secured, grasp handle and tilt
compressor so unit can be rolled on the
tires.
WARNING: Risk of unsafe operation. Ensure
proper footing and use caution when rolling
compressor so that unit does not tip or cause
loss of balance.
5. When location is reached slowly lower
compressor to ground. Always store com-
pressor in a horizontal position.
PREPARATION FOR USE
Pre-Start Checklist (Fig. 1)
1.
Ensure the On/Off switch (A) is in the OFF position.
2.
Plug the power cord into the correct branch circuit receptacle.
See Voltage and Circuit Protection under Installation.
3. Ensure air tank is drained, see Draining Air Tank under
Maintenance.
4. Ensure the drain valve (H) is closed.
5. Ensure safety valve (G) is functioning properly, see Checking
Safety Valve under Maintenance.
6. Check pump oil level, see Compressor Pump Oil under
Maintenance.
CAUTION:
Do not operate without oil or with inadequate oil. DeWA LT
is not responsible for compressor failure caused by inadequate oil.
7. Turn regulator knob (D) counterclockwise until fully closed.
Ensure regulated pressure gauge reads 0 PSI (0 kPa).
8. Attach hose and accessories.
WARNING: Risk of unsafe operation. Firmly grasp hose in hand
when installing or disconnecting to prevent hose whip.
9. Ensure all covers and labels are in place, legible (for labels) and
securely mounted. Do not use compressor until all items have
been verified.
WARNING: Risk of bursting. Too much air pressure causes a
hazardous risk of bursting. Check the manufacturer’s maximum
pressure rating for air tools and accessories. The regulator outlet
pressure must never exceed the maximum pressure rating.
Initial Set-up
(Fig. 1)
WARNING: Do not operate this unit until you read and understand
this instruction manual for safety, operation and maintenance
instructions.
BREAK-IN PROCEDURE
CAUTION:
Risk of property damage. Serious damage may result if
the following break-in instructions are not closely followed.
This procedure is required before the air compressor is put
into service for the first time and when the check valve or a
compressor pump/motor has been replaced.
O
