DeWalt DCB1104 Instruction Manual

THREE YEAR LIMITED WARRANTY
DeWALT will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date
of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail
of warranty coverage and warranty repair information, visit www.dewalt.com or call 1-800-4-DeWALT (1-800-433-9258). This
warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED
WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations
on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations
may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states
orprovinces.
In addition to the warranty
DeWALT tools are covered byour:
1 YEAR FREE SERVICE
DeWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year afterpurchase.
2 YEARS FREE SERVICE ON DeWALT BATTERYPACKS
DC9071, DC9091, DC9096, DC9182, DC9280, DC9360, DCB120, DCB122, DCB124, DCB127, DCB201, DCB203BT, DCB207,DCB361
3 YEARS FREE SERVICE ON D
eWALT BATTERYPACKS
DCB200, DCB203, DCB204, DCB204BT, DCB205, DCB205BT, DCB206, DCB208, DCB230, DCB240, DCB606, DCB609, DCB612,DCB615
NOTE: Battery warranty voided if the battery pack is tampered with in any way.
DeWALT is not responsible for any injury caused
by tampering and may prosecute warranty fraud to the fullest extent permitted bylaw.
90 DAY MONEY BACK GUARANTEE
If you are not completely satisfied with the performance of your
DeWALT Power Tool or Nailer for any reason, you can return it
within 90 days from the date of purchase with a receipt for a full refund – no questionsasked.
LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America,
see country specific warranty information contained in the packaging, call the local company or see website for
warrantyinformation.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call
1-800-4-
DeWALT (1-800-433-9258) for a freereplacement.
• DO NOT attempt to charge the battery pack with any chargers other than a DeWALT charger. DeWALT
chargers and battery packs are specifically designed to worktogether.
• These chargers are not intended for any uses other than charging DeWALT rechargeable batteries. Any
other uses may result in risk of fire, electric shock orelectrocution.
• Do not expose the charger to rain orsnow.
• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to
the electric plug andcord.
• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to
damage orstress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in
risk of fire, electric shock orelectrocution.
• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the
gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18gauge.
An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more
than one extension to make up the total length, be sure each individual extension contains at least the minimum
wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating.
If in doubt, use the next heavier gauge. The lower the gauge number, the heavier thecord.

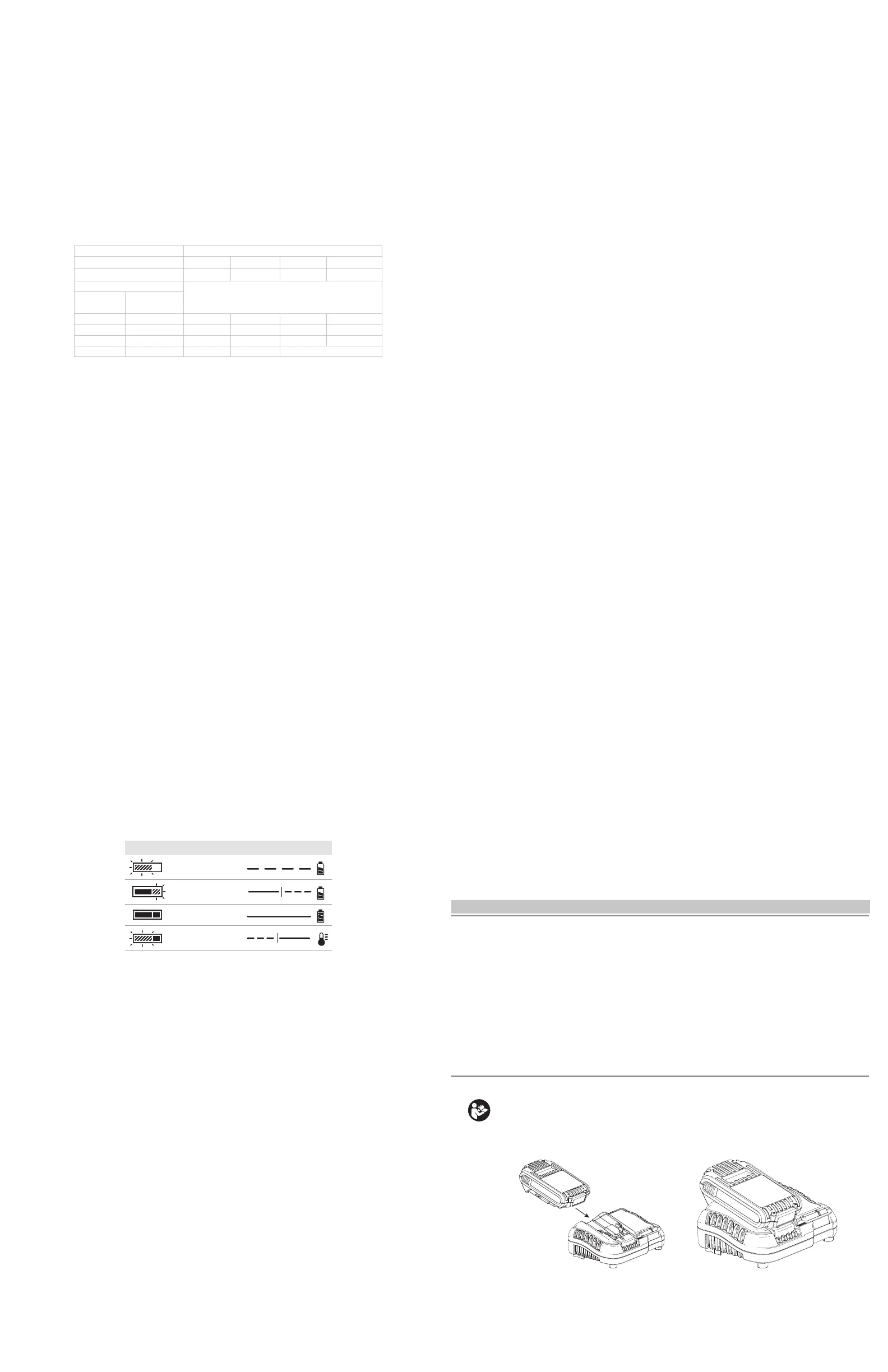

Minimum Gauge for Cord Sets
Volts Total Length of Cord in Feet (meters)
120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating
American Wire Gauge
More Than Not More
Than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended

WARNING: If the plug or power cord is damaged, it must be replaced by the manufacturer or its representative or
by an equally qualified person to avoiddanger.
• Do not place any object on top of the charger or place the charger on a soft surface that might block
the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat
source. The charger is ventilated through slots in the top and the bottom of thehousing.
• Do not operate the charger with a damaged cord orplug–have them replaced immediately.
• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any
way. Take it to an authorized servicecenter.
• Do not disassemble the charger; take it to an authorized service center when service or repair is required.
Incorrect reassembly may result in a risk of electric shock, electrocution orfire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of
electric shock. Removing the battery pack will not reduce thisrisk.
• NEVER attempt to connect 2 chargerstogether.
• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use
it on any other voltage. This does not apply to the vehicularcharger.

WARNING: Shock hazard. Do not allow any liquid to get inside the charger. Electric shock mayresult.

WARNING: Burn hazard. Do not submerge the battery pack in any liquid or allow any liquid to enter the battery
pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or
cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable battery packs. Other types
of batteries may overheat and burst resulting in personal injury and propertydamage.

CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted
by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal
chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger
cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug
the charger before attempting toclean.
SAVE THESE INSTRUCTIONS
CHARGING A BATTERY
NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before firstuse.
1. Plug the charger into an appropriate outlet before inserting batterypack.
2. Connect the charger and battery pack, making sure the battery is fully seated. The (charging) light will blink continuously
indicating that the charging process hasstarted.
3. The Stage 1 Charging blink indicator represents the charge process that charges the majority of the battery's capacity.
Stage2 Charging blink indicator represents the remainder, or top off charge process, for the battery to reach fullcapacity.
4. The completion of charge will be indicated by the light remaining ON continuously. The battery pack is fully charged and
may be removed and used at this time or left in the charger.
NOTE: To remove the battery pack, some chargers require the battery pack release button to bepressed.
Indicators
Stage 1 Charging
Stage 2 Charging
Fully Charged
Hot/Cold Pack
Delay*
* DCB107, DCB112, DCB113, DCB115, DCB118, DCB132, DCB1106, DCB1112: The red light will continue to blink, but a
yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature,
the yellow light will turn off and the charger will resume the charging procedure.
A charger will not charge a faulty battery pack. The charger refusing to light could indicate a problem with the charger or a
faulty battery pack.
NOTE: If the charger refuses to light, take the charger and battery pack to be tested at an authorized servicecenter.
LEAVING THE BATTERY PACK IN THE CHARGER
The charger and battery pack can be left connected with the charge indicator showing pack charged.
HOT/COLD PACK DELAY
When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending
charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack
charging mode. This feature ensures maximum battery packlife.
A cold battery pack may charge at a slower rate than a warm batterypack.
The DCB118 and DCB1112 chargers are equipped with an internal fan designed to cool the battery pack. The fan will turn on
automatically when the battery pack needs to be cooled.
Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to
enter the interior of the charger.
ELECTRONIC PROTECTION SYSTEM
Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating
or deep discharge.
The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack
on the charger until it is fully charged.
IMPORTANT CHARGING NOTES
1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65°F
– 75°F (18° C– 24°C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is
important and will prevent serious damage to the batterypack.
2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not
indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm
environment such as in a metal shed or an uninsulatedtrailer.
3. If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp or other appliance;
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65°F – 75°F
(18°C – 24°C);
d. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.
4. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously.
DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack
whenever you desire with no adverse effect on the batterypack.
5. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil,
or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power
supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean.
6. Do not freeze or immerse the charger in water or any otherliquid.
CHARGER CLEANING INSTRUCTIONS

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from
the exterior of the charger using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions.
WALL MOUNTING
DCB107, DCB112, DCB113, DCB115, DCB118, DCB132, DCB1106, DCB1112
These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the
charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use
the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using
drywall screws (purchased separately) at least 1” (25.4 mm) long, with a screw head diameter of 0.28–0.35” (7–9mm), screwed
into wood to an optimal depth leaving approximately 7/32” (5.5 mm) of the screw exposed. Align the slots on the back of the
charger with the exposed screws and fully engage them in theslots.
REGISTER ONLINE
Thank you for your purchase. Register your product nowfor:
• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a
problem with yourproduct.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership
will serve as your proof ofpurchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is
required under the Federal Consumer SafetyAct.
• Register online at www.dewalt.com
REPAIRS
The charger and battery pack are notserviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and
replacement, when applicable) should be performed by a DeWALT factory service center or a DeWALT authorized service center.
Always use identical replacementparts.
MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making
any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury.

AVERTISSEMENT : lire tous les avertissements de sécurité et toutes les directives. Le non‑respect des avertissements et
des directives pourrait se solder par un choc électrique, un incendie et/ou une blessuregrave.
AVERTISSEMENT : afin de réduire le risque de blessures, lire le mode d’emploi del’outil.
Pour toute question ou remarque au sujet de cet outil ou de tout autre outil
DeWALT composez le
numéro sans frais : (1-800-433-9258).
Définitions: symboles et termes d'alarmessécurité
Ces guides d'utilisation utilisent les symboles et termes d'alarmes sécurité suivants pour vous prévenir de situations dangereuses
et de risques de dommages corporels ou matériels.

DANGER : indique une situation dangereuse imminente qui, si elle n’est pas évitée, entraînera la mort ou des
blessuresgraves.

AVERTISSEMENT : indique une situation potentiellement dangereuse qui, si elle n’est pas évitée, pourrait entraîner la mort
ou des blessuresgraves.

ATTENTION : indique une situation potentiellement dangereuse qui, si elle n’est pas évitée, pourrait entraîner des blessures
légères oumodérées.

(Si utilisé sans aucun terme) Indique un message propre à la sécurité.
AVIS : indique une pratique ne posant aucun risque de dommages corporels mais qui par contre, si rien n’est fait pour
l’éviter, pourrait poser des risques de dommages matériels.
FRANÇAIS
PILES ET CHARGEURS
Le bloc-piles n’est pas entièrement chargé lorsqu’il sort de la boîte. Avant d'utiliser le bloc-piles et le chargeur, lisez
attentivement les instructions de sécurité suivantes, puis suivez les procédures de chargement énoncées. Lorsque
vous commandez des blocs-piles de remplacement, assurez-vous d’inclure le numéro du catalogue et la tension.

DeWalt DCB1104 Specifications

General

Brand	DeWalt
Model	DCB1104
Category	Battery Charger
Language	English
