1 Circular saw
1 Circular saw blade
1 Blade wrench
1 Parallel fence
1 Dust extraction port
1 Charger (T models only)
1 Li-Ion battery pack (T1 model)
2 Li-Ion battery packs (T2 model)
3 Li-Ion battery packs (T3 model)
1 Instruction manual
• Check for damage to the tool, parts or
accessories which may have occurred
during transport.
• Take the time to thoroughly read and
understand this manual prior to operation.
Description (Fig. 1)
WARNING: Never modify the power
tool or any part of it. Damage or personal
injury could result.
A. Trigger switch
B. Trigger switch lock-off button
C. Main handle
D. Blade lock
E. End cap
F. Auxiliary handle
G. Bevel adjustment lever
H. Bevel angle adjustment mechanism
I. LED worklight
J. Base plate
K. Lower blade guard
L. Blade clamping screw
M. Lower guard lever
N. Upper blade guard
O. Battery pack
P. Battery release button
Q. Date code
R. Rail adjuster (0° cutting)
S. Rail adjuster (1-45° bevel cutting)
T. Fuel gauge button (on battery pack)
INTENDED USE
These heavy-duty circular saws are designed for
professional wood cutting applications. Do not cut
metal, plastic, concrete, masonry or fiber cement
materials. DO NOT use water feed attachments
with this saw. DO NOT use abrasive wheels or
blades. DO NOT use under wet conditions or in the
presence of flammable liquids or gases.
NOTE: Battery packs should not be stored
completely depleted of charge. The battery pack will
need to be recharged before use.

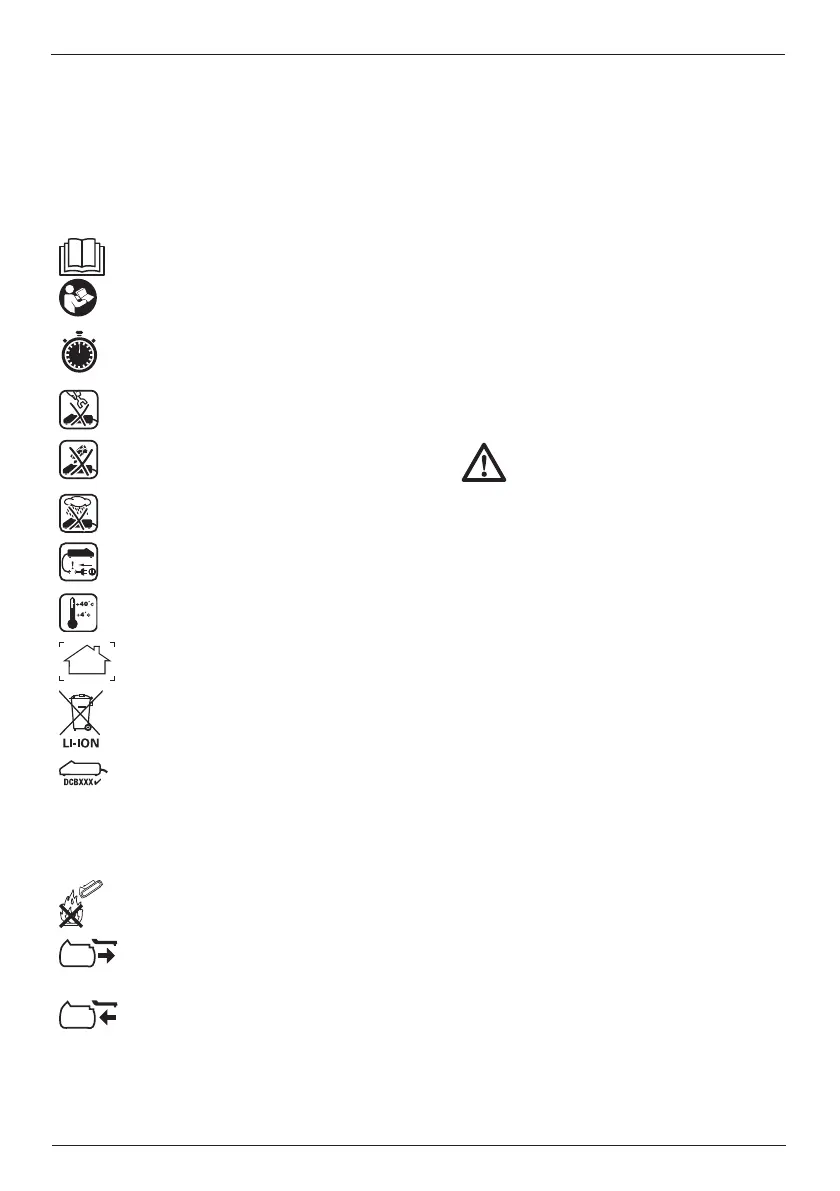

Labels on Charger and Battery Pack
In addition to the pictographs used in this manual,
the labels on the charger and the battery pack may
show the following pictographs:
Read instruction manual before use.
See Technical Data for charging time.
Do not probe with conductive objects.
Do not charge damaged battery packs.
Do not expose to water.
Have defective cords replaced
immediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indoor use.
Discard the battery pack with due care
for the environment.
Charge DeWALT battery packs only with
designated DeWALT chargers. Charging
battery packs other than the designated
DeWALT batteries with a DeWALT
charger may make them burst or lead to
other dangerous situations.
Do not incinerate the battery pack.
Use: Use without transportation cap, Wh
rating indicates 108 Wh (1 battery with
108 Wh).
Transport: Transport with built-in transport
cap, Wh rating indicates 3 x 36 Wh
(3batteries of 36 Wh).
Package Contents
The package contains:
19
ENGLISH
