Do not charge damaged batterypacks.
Do not expose to water.
Have defective cords replacedimmediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge
DeWALT
battery packs only with designated
DeWALT
chargers. Charging battery packs other
than the designated
DeWALT
batteries with a
DeWALT
charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
USE (without transport cap). Example: Wh rating
indicates 108 Wh (1 battery with 108 Wh).
TRANSPORT (with built-in transport cap). Example:
Wh rating indicates 3 x 36 Wh (3batteries of 36 Wh).
Battery Type
The DCS577 operates on an 54 volt batterypack.
These battery packs may be used: DCB546, DCB547. Refer to
Technical Data for moreinformation.
Package Contents
The package contains:
1 Hi-torque circular saw
1 Circular saw blade
1 Blade wrench
1 Dust extraction port
2 Dust port screws
1 Li-Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1 models)
2 Li-Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2 models)
3 Li-Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3 models)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by
DeWALT
is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.

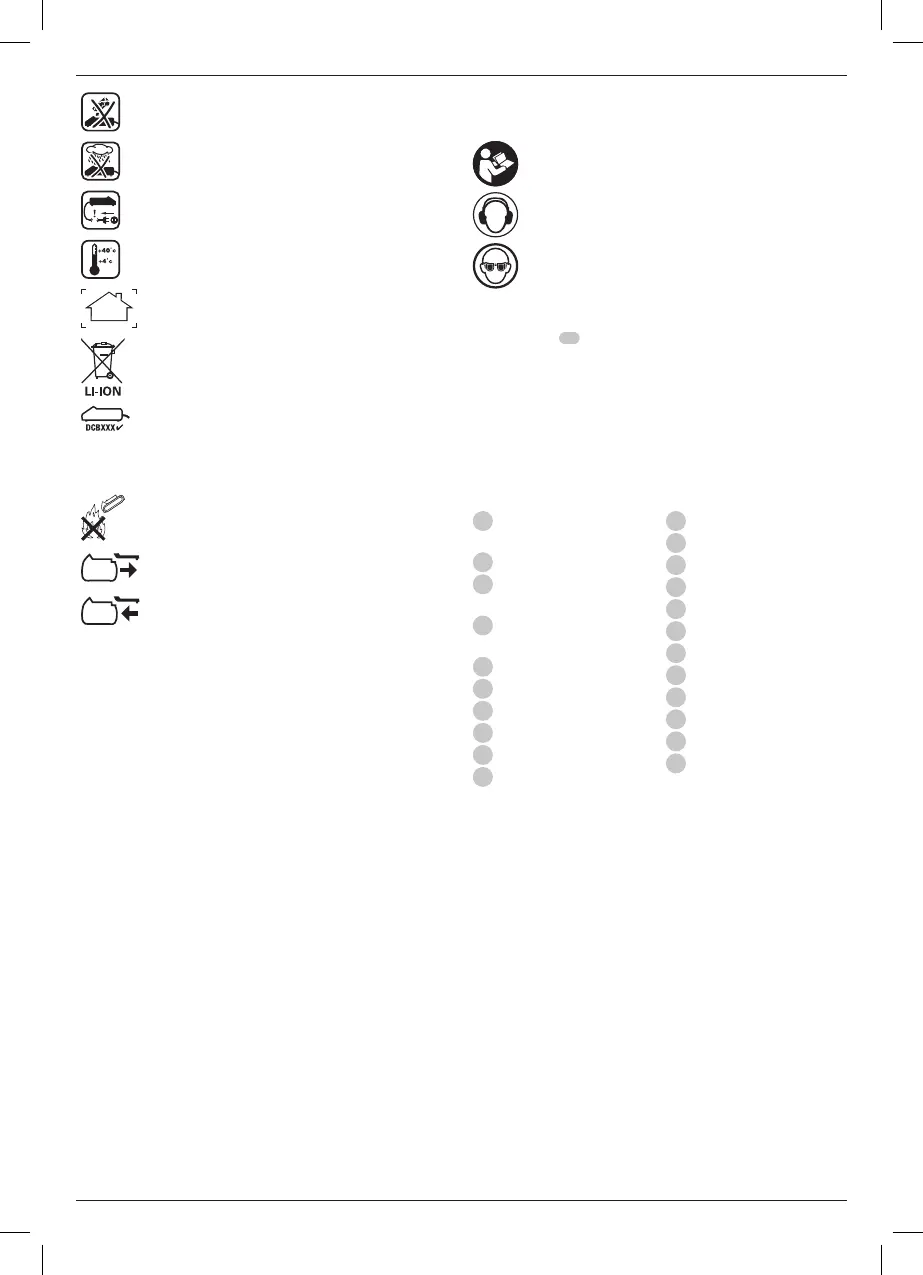

Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
Date Code Position (Fig. A)
The date code
22
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2018 XX XX
Year of Manufacture
Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Trigger switch lock off
button
2
Trigger switch
3
Depth adjustment locking
lever
4
Lower blade guard
retracting lever
5
Foot plate
6
Lower blade guard
7
0˚ Kerf indicator
8
45˚ Kerf indicator
9
Bevel adjustment lever
10
Angle quadrant
11
Spindle lock button
12
Main handle
13
Auxiliary handle
14
Battery release button
15
Battery
16
Coarse adjustment
17
Fine adjustment
18
Kerf indicators
19
Blade clamping screw
20
Dust extraction port
21
Wrench
22
Date code
Intended Use
These heavy-duty circular saws are designed for professional
wood cutting applications. DO NOT use water feed attachments
with this saw. DO NOT use abrasive wheels orblades.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
These heavy-duty saws are professional power tools.
DO NOT cut metal, masonry, glass, masonry-type planking,
cement board, tile or plastic with thissaw.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills

DeWalt DCS577 Specifications

General

Quantity per pack	1 pc(s)
