DeWalt DP3750 User Manual

2
English
Specifications
MODEL WEIGHT HEIGHT WIDTH LENGTH PSI MAX* OPERATING
PSI
GPM MAX* OPERATING
GPM
ENGINE
DP3400 114 lbs
( 51.7 kg)
29"
( 73.7 cm)
24"
( 61.0 cm)
40"
( 101.6 cm)
3400
(23443 kPa)
3060
(21099 kPa)
3.2 2.9 Honda 9 Hp
GX370
* Water flow and maximum pressure ratings determined in accordance with PWMA standard PW101.
Pump Specifications
GENERAL TX1508
Oil: Use DP70
Oil Capacity: 14 oz. (414 ml)

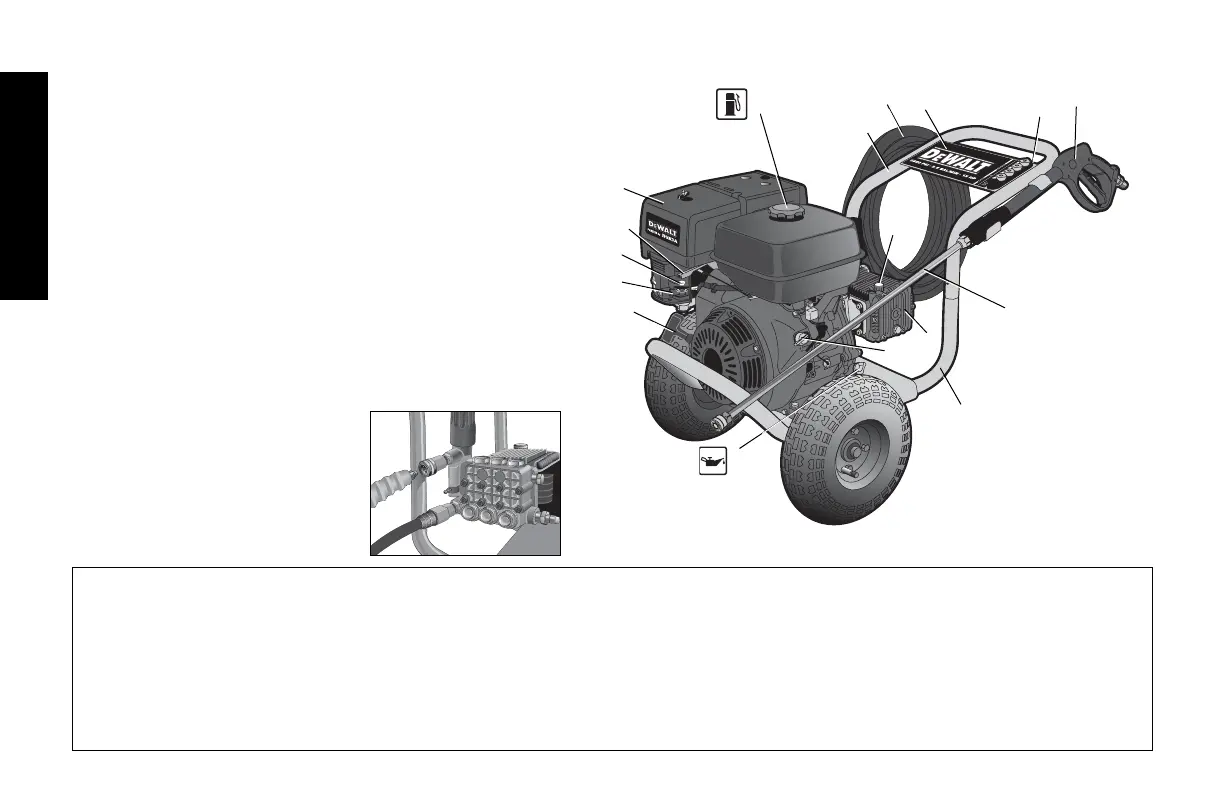

A. Handle assemble
B. Frame
C. High-pressure hose
D. Spray gun
E. Quick-connect
spray wand
F. Panel assembly
G. Nozzle holder
H. High-pressure pump
dipstick/oil plug
I. Engine dipstick/oil plug
J.
High-pressure pump
K.
Engine
L. Choke control
M. Starter grip
N. Fuel valve lever
O. Engine switch
P. Gas cap
Q. Throttle control lever
DP3400 PRESSURE WASHER
ENGINE
Refer to the engine instruction manual for location
and operation of other engine controls.
K
D
E
C
L
N
A
M
F
B
G
J
H
O
I
P
Q
FIG. 1

DeWalt DP3750 Specifications

General

Brand	DeWalt
Model	DP3750
Category	Pressure Washer
Language	English
