White
40
˚
covers wide
areas of
cleaning
metal, concrete,
wood or vinyl
Black
low pressure
applies cleaning
solutions
metal, concrete,
wood or vinyl
* CAUTION: The high-pressure spray from your pressure washer
is capable of causing damage to surfaces such as wood, glass,
automobile paint, auto striping and trim, delicate objects such
as flowers and shrubs. Before spraying, check the item to
be cleaned to assure yourself that it is strong enough to resist
damage from the force of spray.
CHANGING NOZZLES ON SPRAY WAND
DANGER: Risk of fluid injection. Do not direct discharge stream
toward persons, unprotected skin, eyes or any pets or animals.
Serious injury will occur.
WARNING: Flying objects could cause risk of serious injury. DO
NOT attempt to change nozzles while pressure washer is running.
Turn engine off before changing nozzles.
1.Pullquick-connectcouplerbackandinsert
nozzle.
2.Release quick-connect coupler and
twist nozzle to make sure it is secure in
coupler.
1. Back away from the sur face to be cleaned. The further away you
are, the less the pressure will be on the surface to be cleaned.
2. Change to the 40˚ nozzle (white). This nozzle delivers a less
powerful stream of water and a wider spray pattern. Refer to
Spray Wand Nozzles.
CAUTION: DO NOT attempt to increase pump pressure. A higher
pressure setting than the factory set pressure may damage pump.
3. Reduce the speed of the gasoline engine (RPM). Slow the
engine down and the water pressure will go down with it.
The nozzles for the spray wand are stored in the nozzle holder (B) on
the panel assembly (A). Colors on the panel identify nozzle location
and spray pattern. Refer to the following chart to choose the correct
nozzle for the job to be performed.

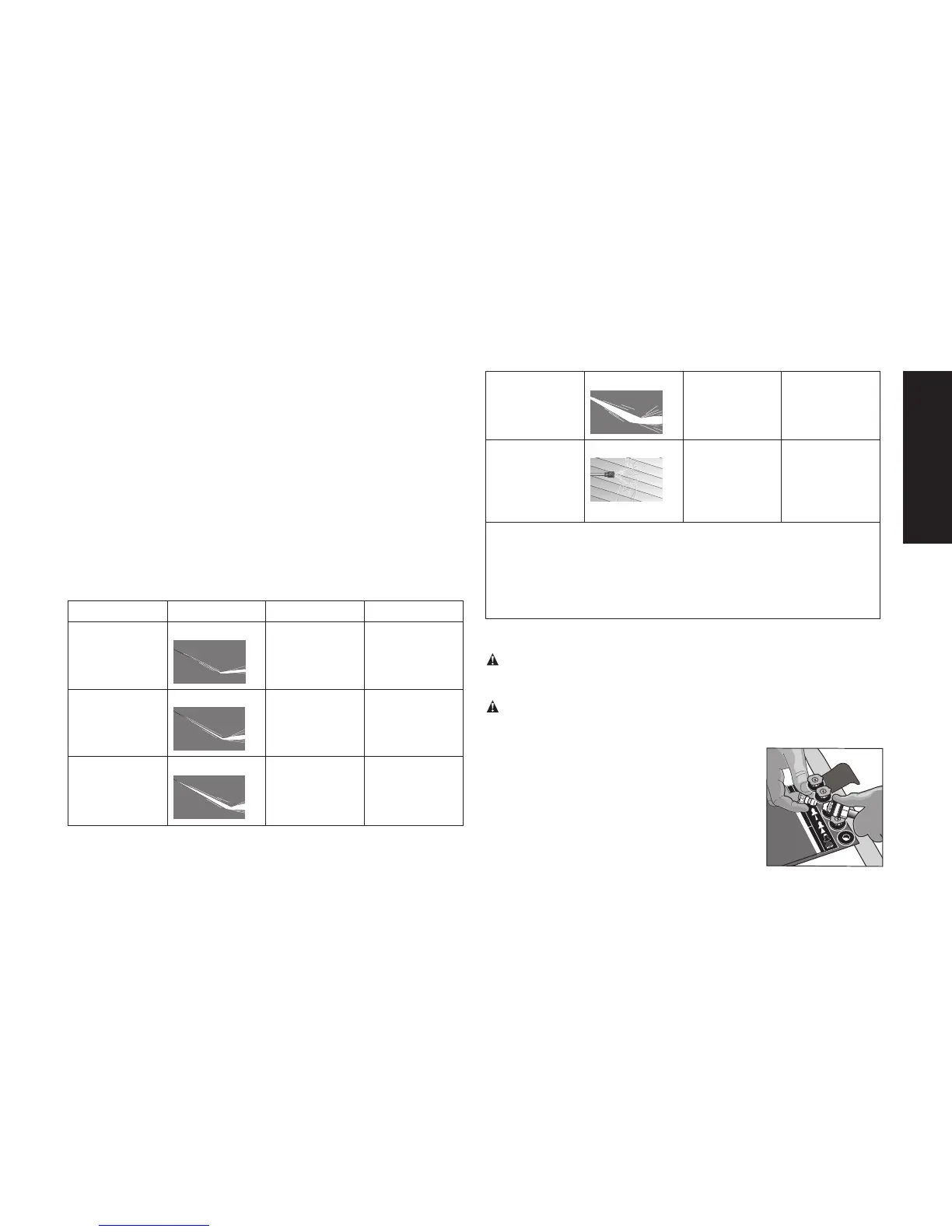

Nozzle Color Spray Pattern Uses Surfaces*
Red
0˚
powerful
pinpoint for
very intense
cleaning
metal or
concrete;
DO NOT use
on wood
Yellow
15˚
intense
cleaning of
small areas
metal, concrete
or wood
Green
25
˚
intense
cleaning of
larger areas
metal, concrete
or wood
To Next Page
