• ANSI Z87.1 eye protection (CAN/CSA/Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
Tool Specifi cations
MODEL DWMC150
HEIGHT 10-3/4" (274 mm
WIDTH 4-1/4" (108 mm)
LENGTH/ 11-3/4" (296 mm)
WEIGHT/ 4.6 lb (2.1 kg)
MAGAZINE ANGLE 35°
OPERATING PRESSURE
70 – 120 psig (4.9 – 8.43kg/cm
2
)
AIR CONSUMPTION PER
100 CYCLES *
6.7 cfm @ 80 psi
LOADING CAPACITY
Up to 29 nails
FASTENER LENGTHS 1-1/2" (38 mm)
SHANK DIAMETERS .131"–.148"
(3.33 mm–3.76 mm)
FASTENER COLLATION 35° Paper tape
FASTENER TYPE 35° paper collated full round head
metal connector nails
*Take the actual rate at which the tool will be run to determine the
amount of air required. For instance, if your fastener usage averages
50 nails per minute, you need 50% of the 6.7 cfm (190 liters per
minute) which is required to operate the tool at 100 nails per minute.

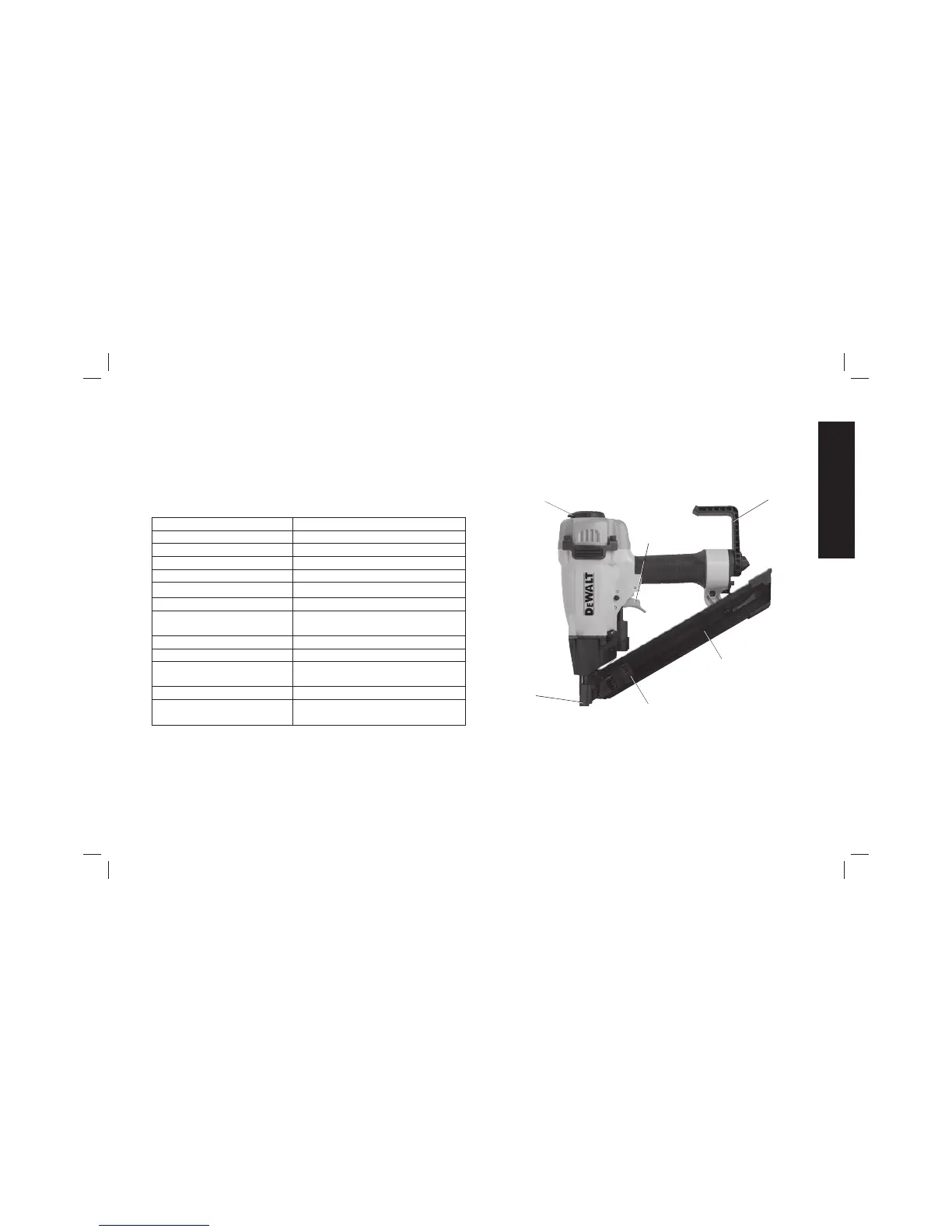

COMPONENTS (FIG. 1)
A. Trigger
B. Exhaust
C. Rafter hook
D. Moveable nose (trip)
E. Pusher
F. Magazine
FIG. 1
E
A
D
C
F
B
English
5
